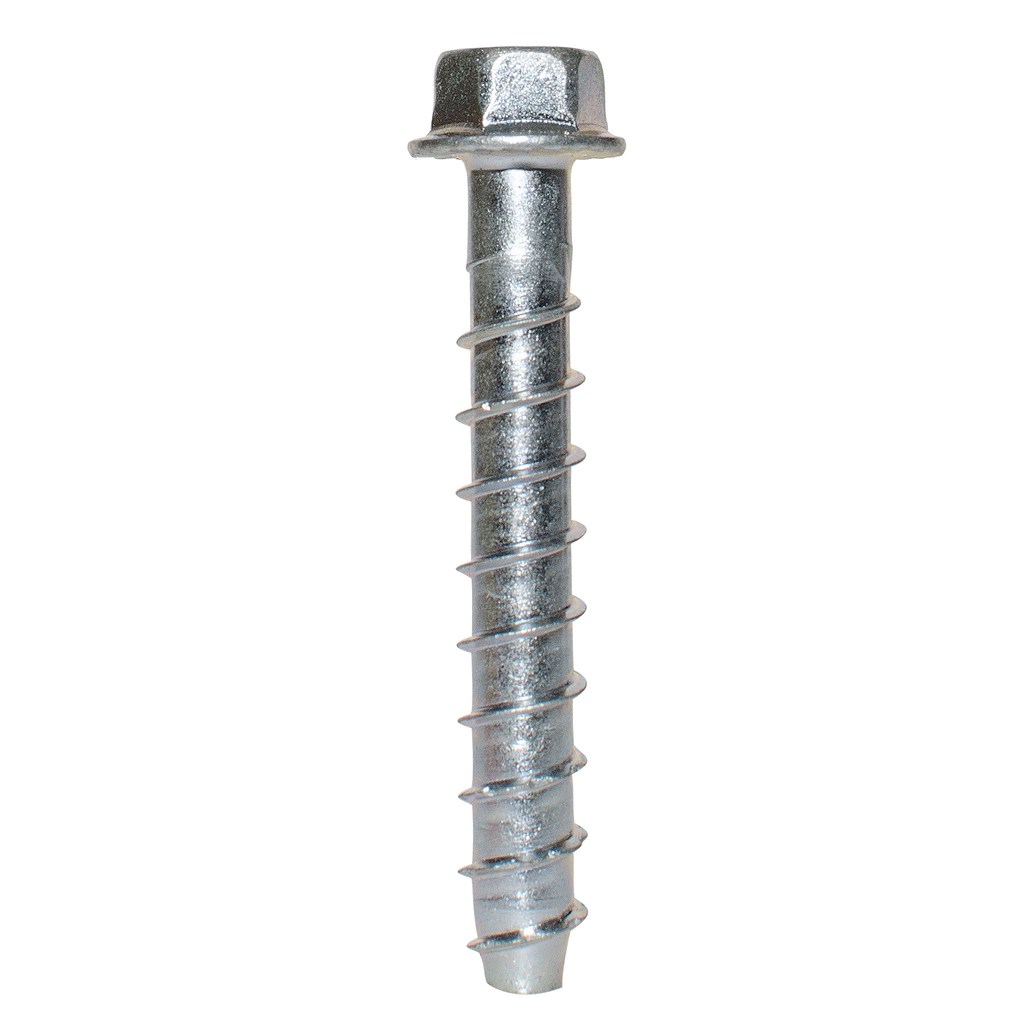

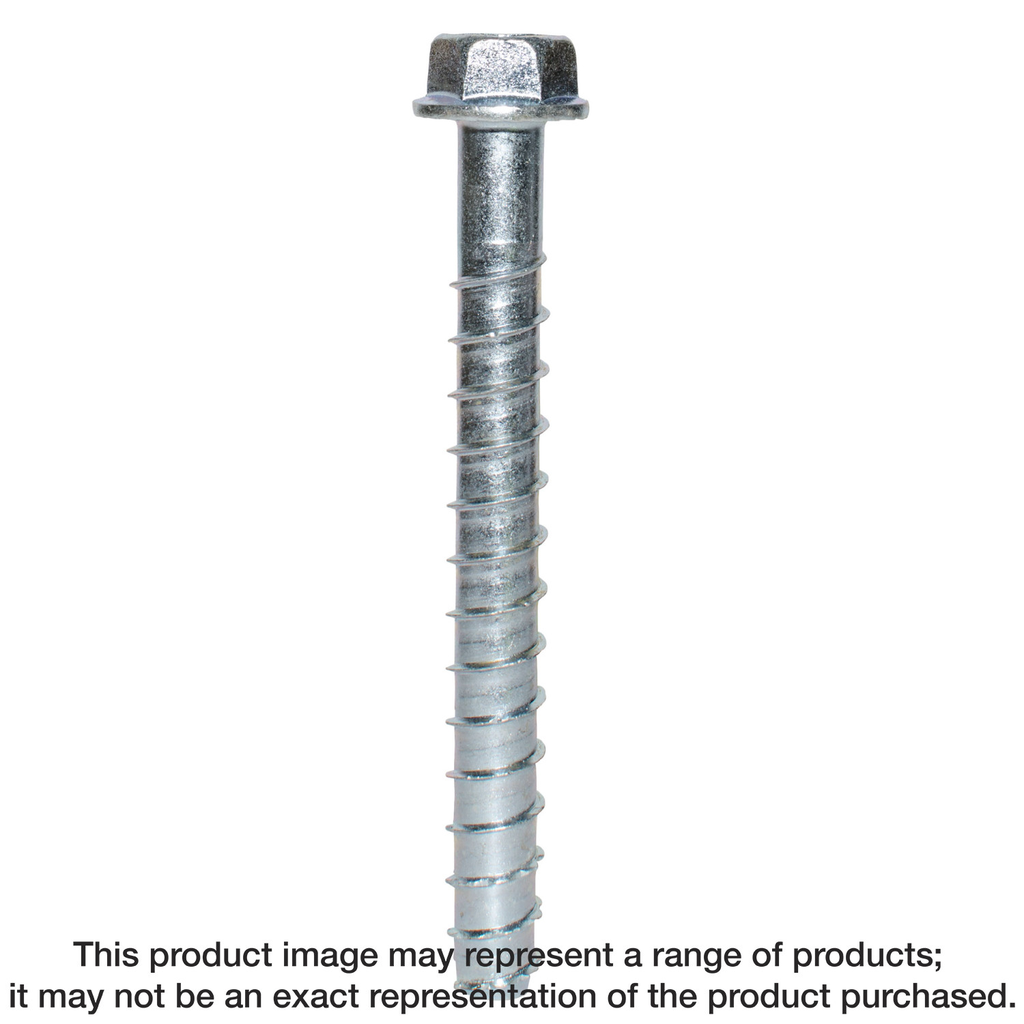

3/8 X 3 INCH TITENHD FLAG
$1.93
Engineered for demanding applications, the heavy-duty screw anchor from Simpson Strong-Tie exemplifies reliable performance in structural support settings. Utilizing carbon steel and a specialized heat-treating process, this anchor features a hardened tip for precise cutting while maintaining ductility, ensuring durability under static and seismic loading conditions. With a unique thread design that efficiently transfers loads to the base material, installation is straightforward and does not require a special drill bit, as it accommodates standard-sized ANSI tolerance drill bits. Additionally, the zinc-plated finish enhances its suitability for temporary exterior applications, while the hex-washer head provides a clean, finished look without the need for a separate washer. However, it is important to note that this screw anchor is designed for one-time use only to prevent excessive thread wear and maintain its load capacity.
Description
The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
Additional information
| Weight | 0.131 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 0.8 in |
| Size | 3/8 in x 3 in |
