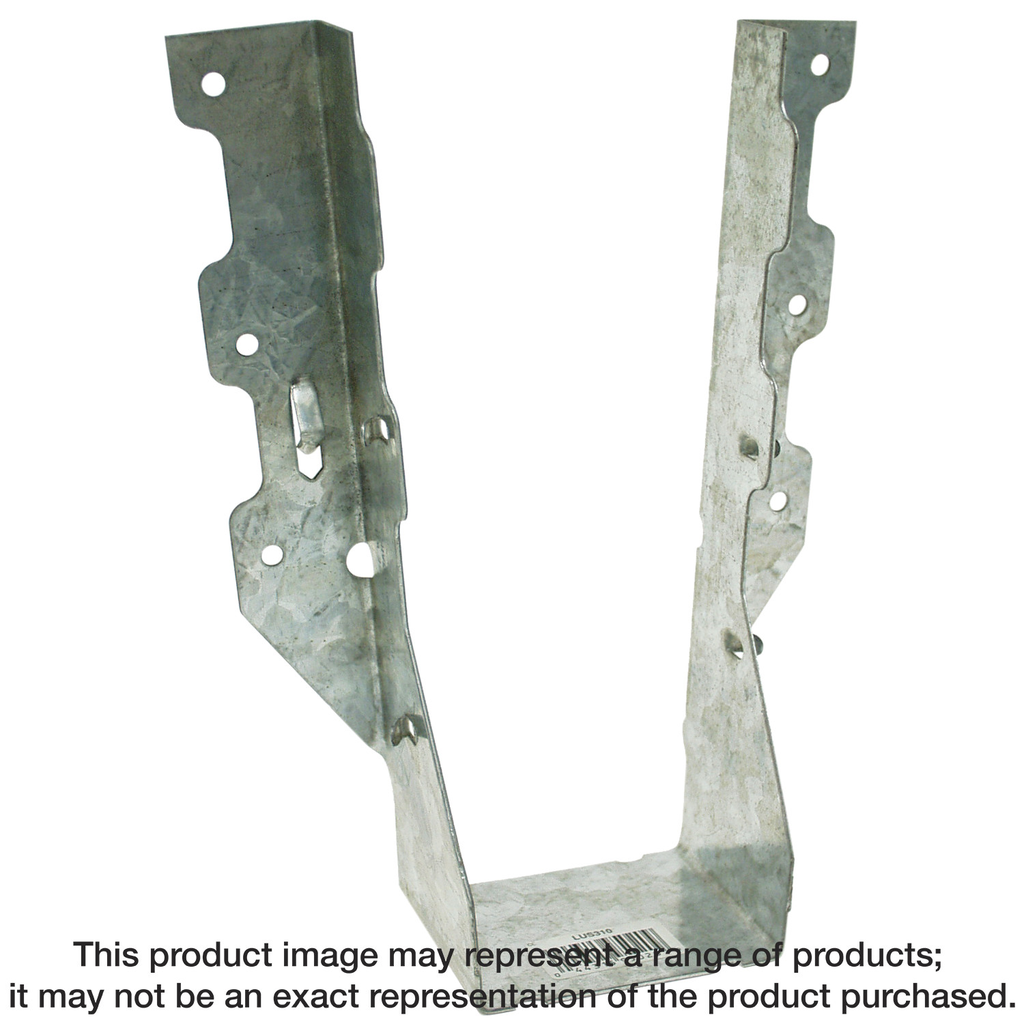

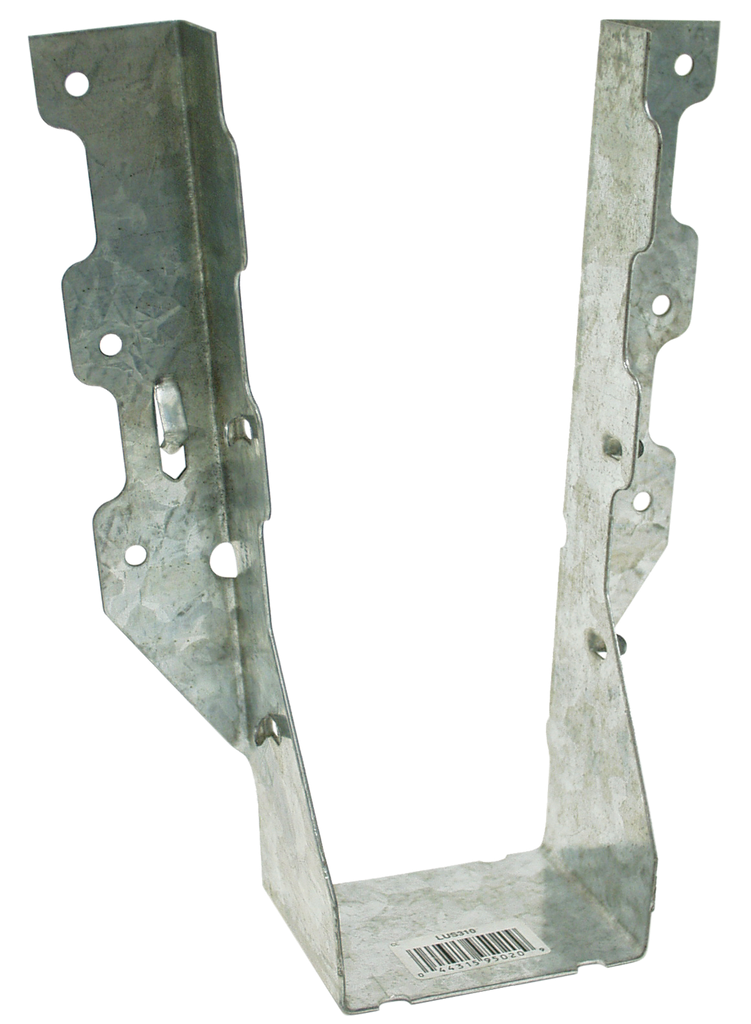

3 X 10 DBL SHEAR FACE MOUNT HANGER
$4.11
Crafted to provide robust support in a variety of construction applications, the face-mount joist hanger accommodates nominal joist sizes of 3×10, ensuring reliable load transfer and structural integrity. Made from durable 18-gauge steel and galvanized for extra corrosion resistance, it is built to withstand the elements, making it a dependable choice for long-lasting projects. The patented double-shear nailing design enhances strength while reducing the number of nails needed, allowing for an efficient and secure installation. Furthermore, its speed prongs facilitate easy setup, while the angled joist nailing feature proves invaluable in tight spaces, streamlining the installation process.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Additional information
| Weight | 0.45 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal joist size | 3×10 |
| Depth | 4.7795 in |
