3 X 6 DBL SHEAR FACE MOUNT HANGER ZMAX
$6.27

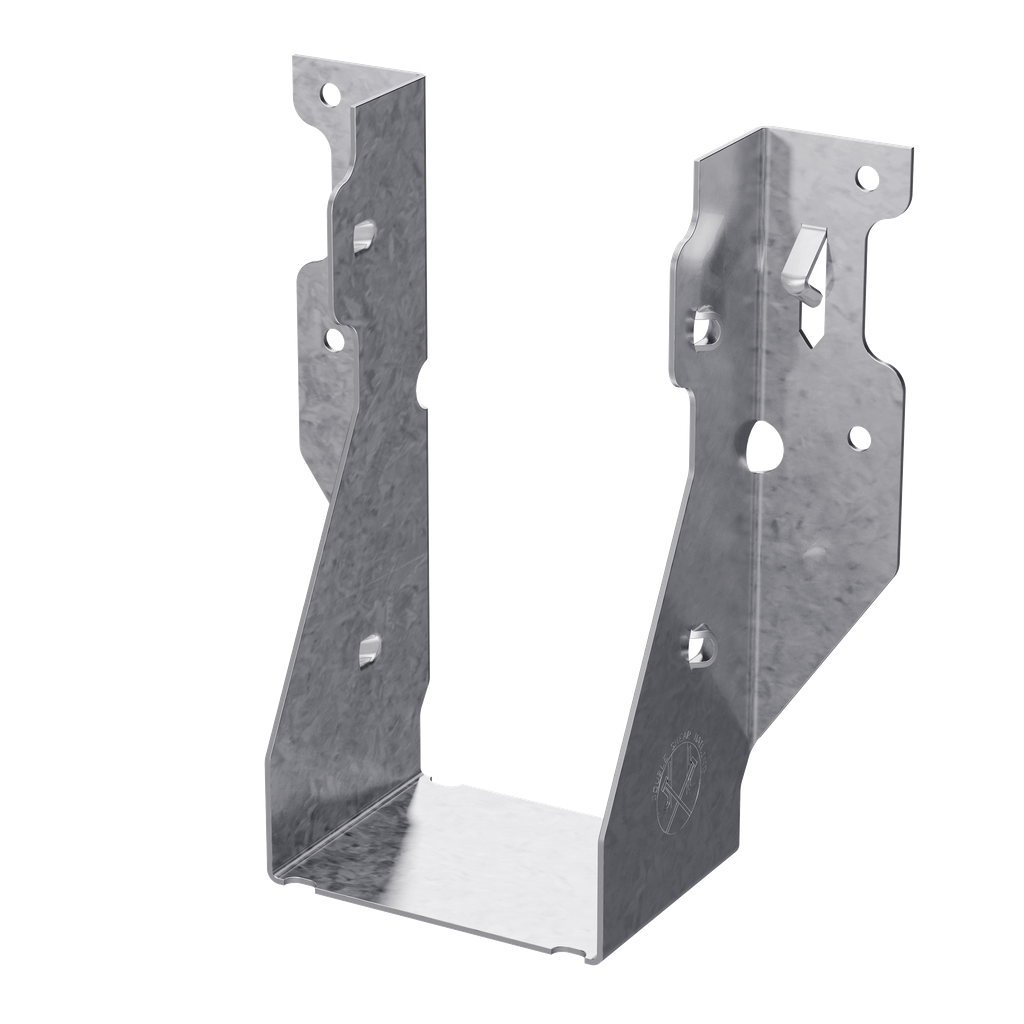

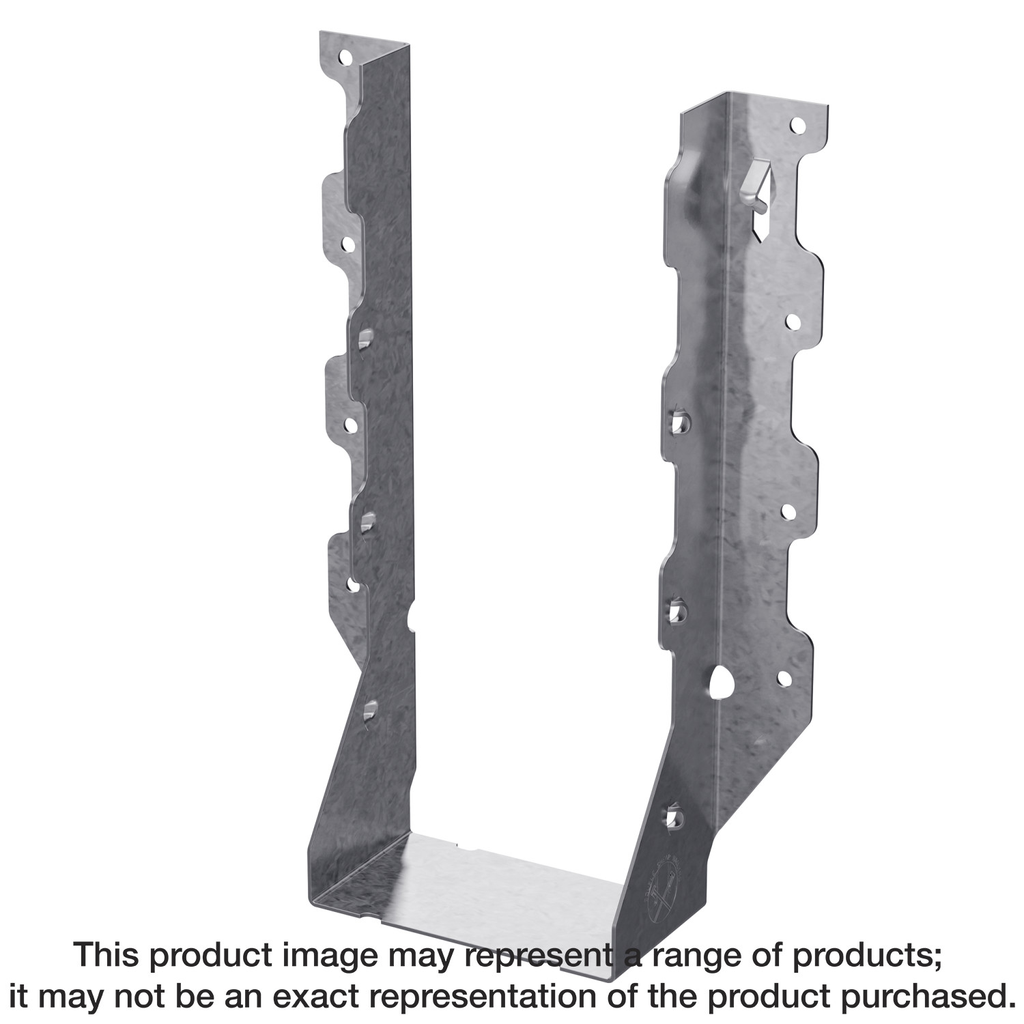

Engineered for optimal durability and strength, the face-mount joist hanger from Simpson Strong-Tie is designed specifically for 3×6 and 3×8 joists. Its unique patented double-shear nailing design enhances structural integrity while minimizing the number of nails required, allowing for a more efficient fastening process. With speed prongs, the installation becomes quick and straightforward, even in tight spaces, while the angled joist nailing feature further simplifies alignment and securing of joints. Constructed from robust 18-gauge steel and treated with ZMAX galvanization, this hanger offers superior corrosion resistance, making it an ideal choice for both exterior and treated-wood applications.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Additional information
| Weight | 0.36 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 4.7835 in |
| Nominal Joist Size | 3×6, 3×8 |
