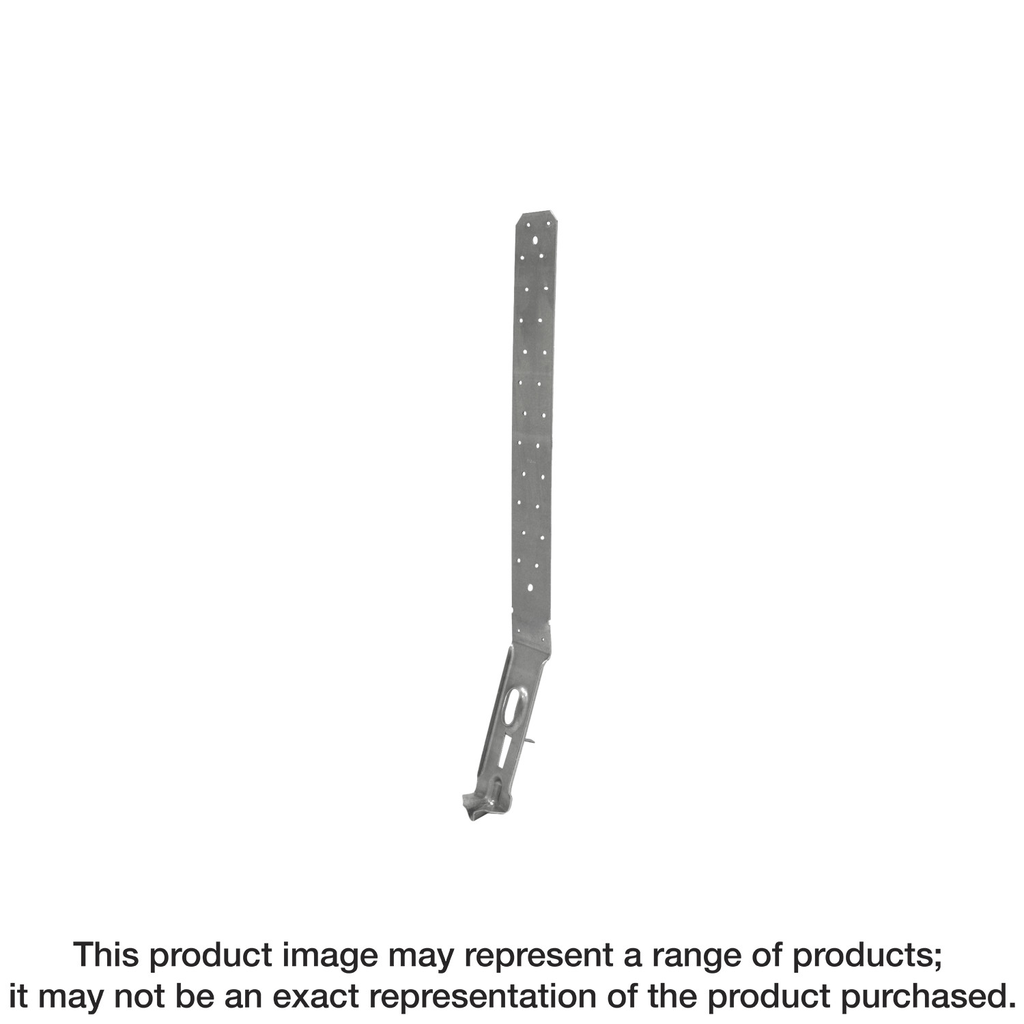

32-1/8IN STRAP TIE HOLDOWN RIM JOIST
$26.80
Crafted for superior performance in structural applications, this rim-joist strap-tie holdown is manufactured from robust 14-gauge galvanized steel, ensuring exceptional corrosion resistance. Its countersunk strap nail slots provide a streamlined lower nail head profile when used with specified fasteners, while the strategically placed slots below the embedment line enhance concrete bond and reduce the risk of spalling. Designed to facilitate nailing into double 2x members with minimal splitting, this versatile model accommodates clear spans of up to 17 inches without compromising strap nailing efficiency, making it an essential component for reliable construction and stability. Whether you’re working on a new build or a renovation, this holdown combines innovation and strength to meet demanding engineering needs.
Description
The LSTHD is an embedded strap-tie holdown with features that aid correct installation and improve performance in both wood and cold-formed steel construction. When installed on the forms with the StrapMate® strap holder or other holding device, the unique design of this light cast-in-place strap-tie holdown delivers enhanced stability before and during the pour to help prevent both parallel and perpendicular movement.
Additional information
| Weight | 2.484 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3 in. |
| Length | 32-1/8 in. |
