4 X 10 DBL SHEAR FACE MOUNT HANGER ZMAX
$6.51

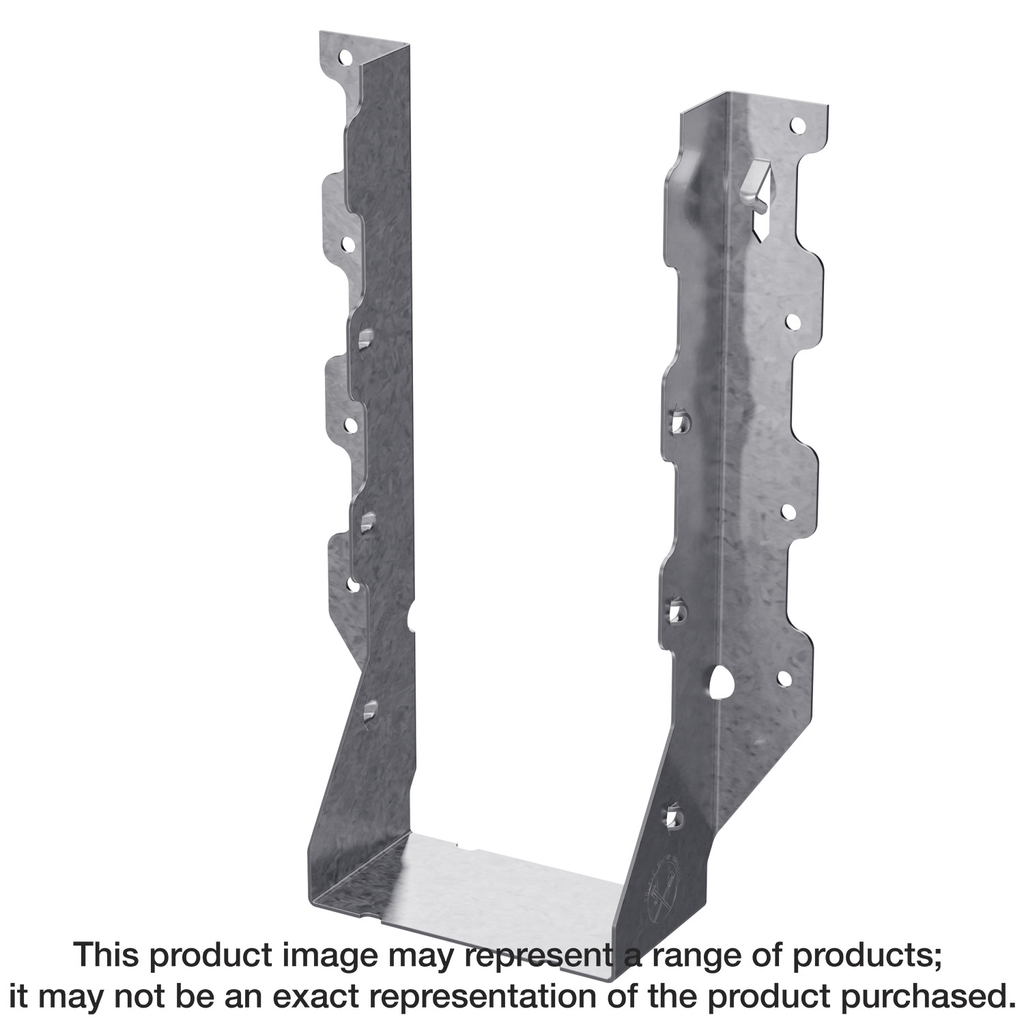

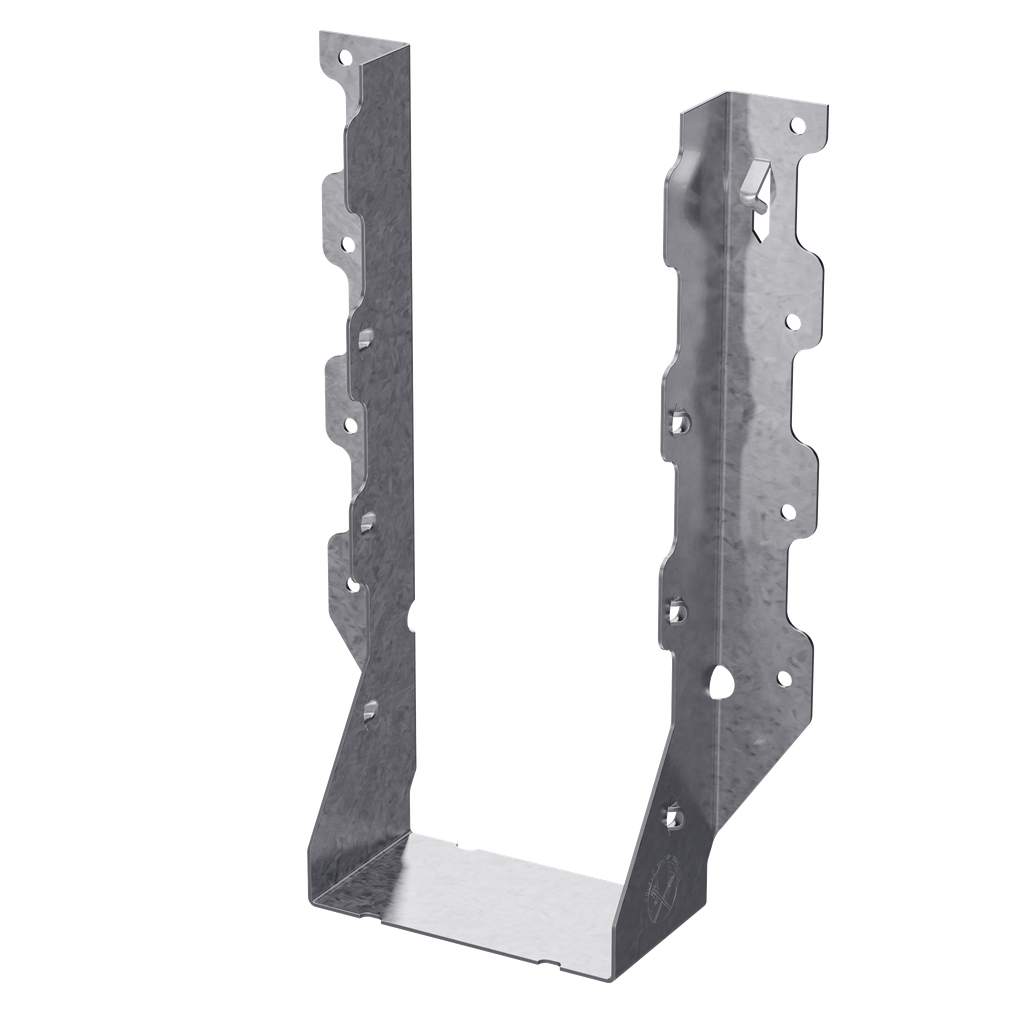

Crafted by Simpson Strong-Tie, the galvanized face-mount joist hanger brings exceptional strength and durability to your wood framing projects. Designed specifically for 4×10 joists, it features an innovative patented double-shear nailing design that enhances structural integrity while requiring fewer nails, making installation more efficient. Constructed from robust 18-gauge steel, this hanger boasts ZMAX galvanization, offering superior corrosion resistance ideal for exterior and treated-wood applications. The unique angled nailing capability allows for seamless installation in tight spaces, while the built-in speed prongs facilitate a quick setup, ensuring your project progresses smoothly.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Additional information
| Weight | 0.6 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 4×10, 4×12, 4×14 |
| Depth | 5.7835 in |
