4 X 10 FACE MOUNT HANGER ZMAX
$22.75

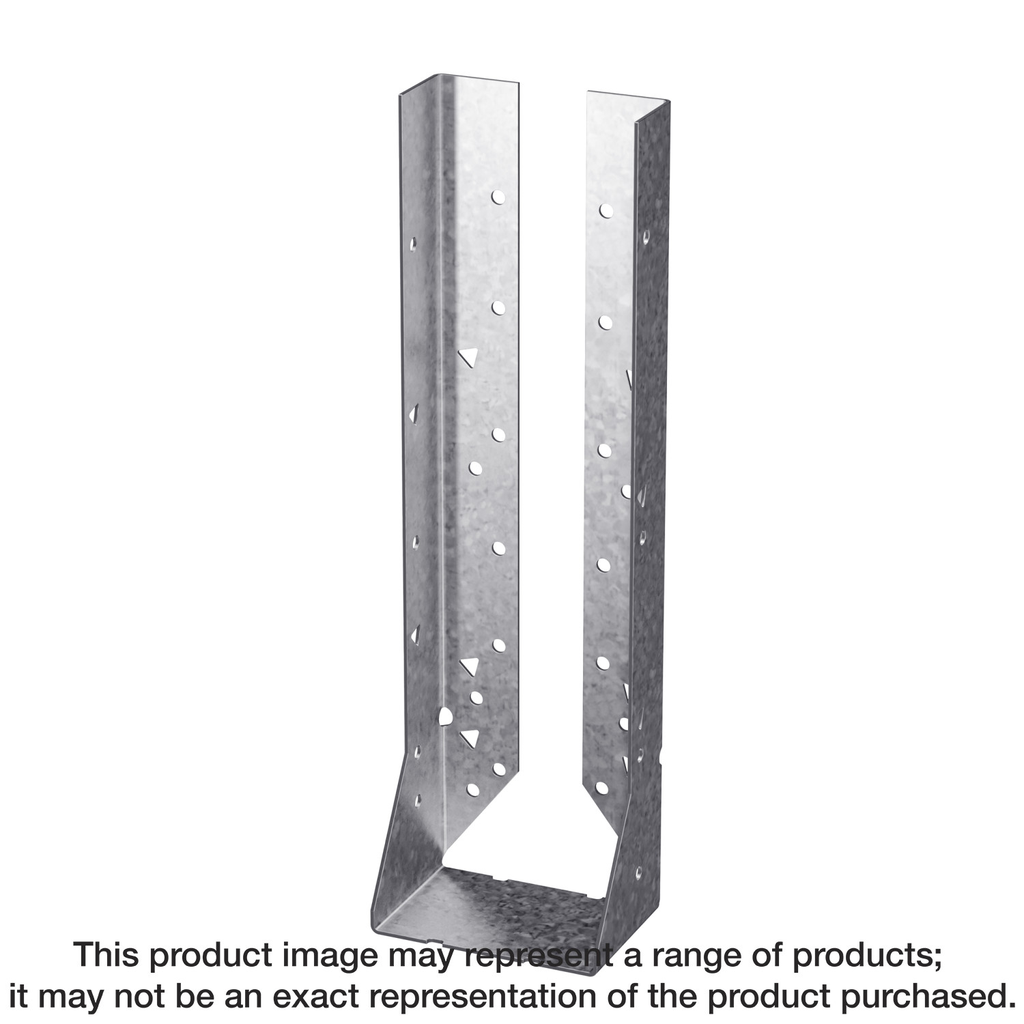

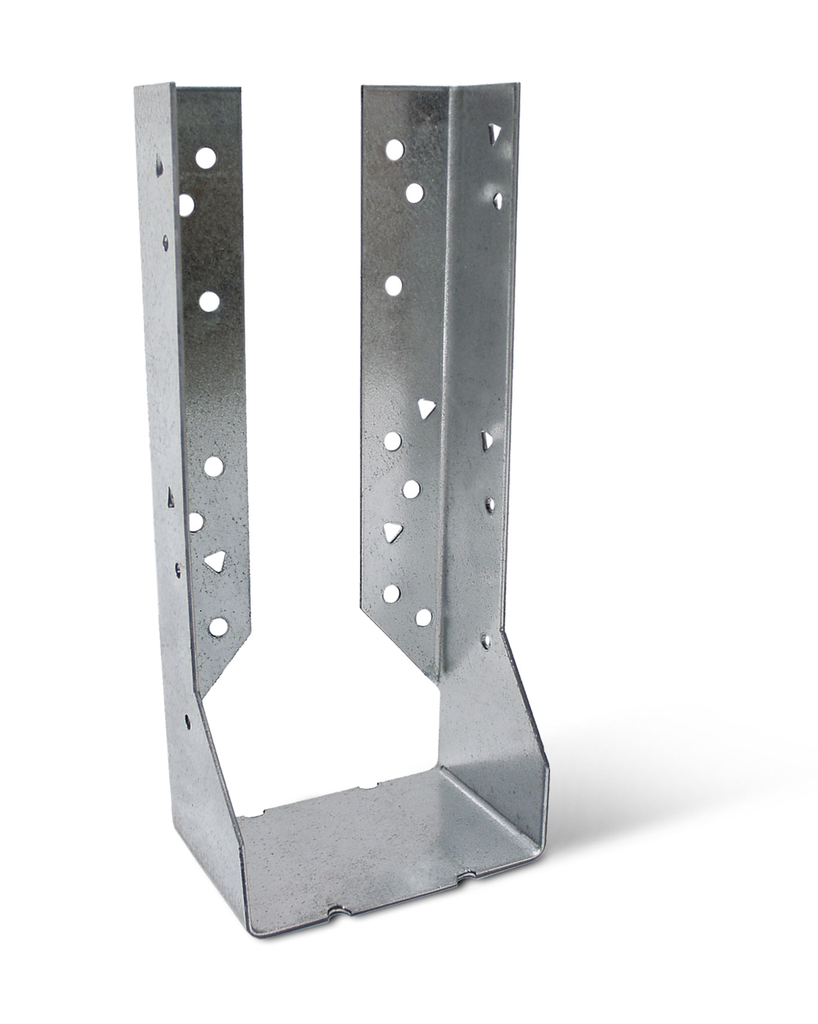

Engineered for reliability and strength, the HUC410Z HUC ZMAX® Galvanized Face-Mount Concealed-Flange Joist Hanger is designed to provide optimal support for 4×10 wood joists in a variety of structural applications. Its durable construction from 14-gauge steel ensures robust performance, while ZMAX galvanization offers extra corrosion resistance, making it suitable for use in both exterior and treated-wood environments. This hanger is not only load rated and code compliant but also features additional triangle holes for enhanced load capacity, allowing for versatile installation options on wood, masonry, and concrete surfaces. With a seat width of 3-9/16 inches and a depth of 3.7065 inches, this joist hanger combines practicality with dependable structural integrity.
Description
The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Seat Width | 3-9/16 in. |
| Depth | 3.71 in. |
