4 X 10 TOP FLANGE FACE MOUNT HANGER
$39.01

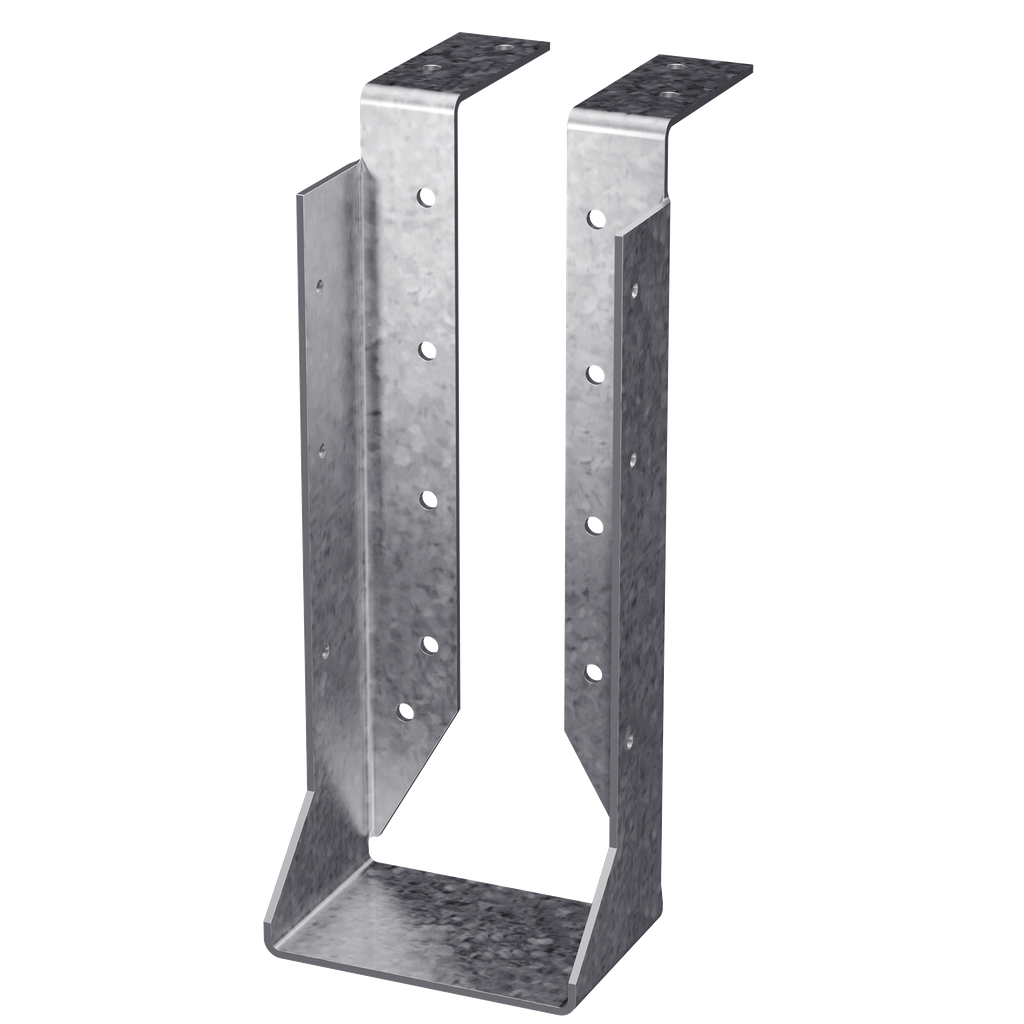

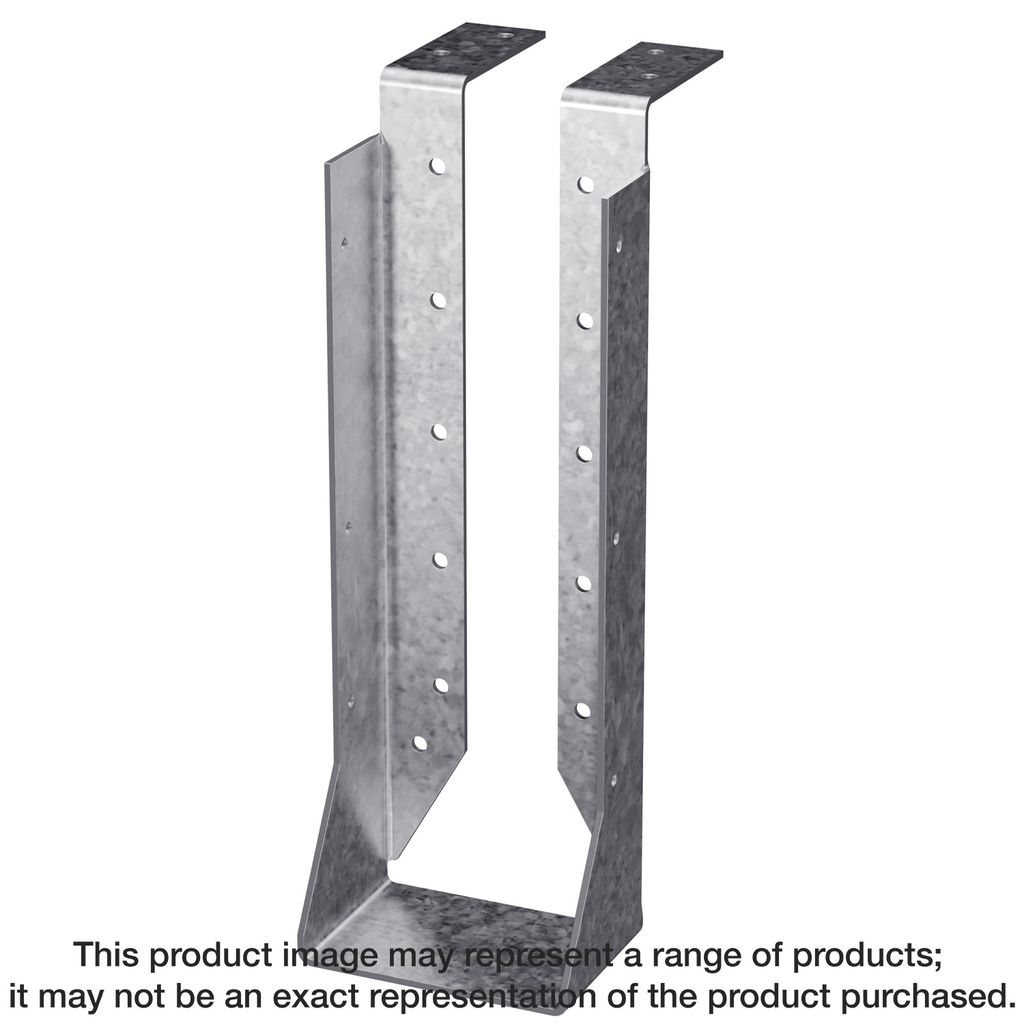

Engineered for strength and reliability, the HUC410TF HUCTF Galvanized Top-Flange Concealed-Flange Joist Hanger is an essential component for secure beam-to-joist connections. Crafted from robust 12-gauge steel, it offers exceptional durability and features a galvanized finish for enhanced corrosion resistance, making it ideal for both residential and commercial applications. This joist hanger is rigorously tested for performance and is compliant with building codes, ensuring peace of mind in structural integrity. With the ability to accommodate sloped beams up to 45 degrees, it provides flexibility in various construction scenarios, while rough beam sizes can be customized to meet your specific project requirements.
Description
The HUCTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty joist hanger is designed with two concealed flanges for end-of-wall or corner installation. The HUCTF features face-nailing that allows the hanger to be securely attached to the member.
Additional information
| Weight | 1.74 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 4×10 in. |
| Depth | 3.76 in. |
