4 X 10 TOP FLANGE FACE MOUNT HANGER
$46.20

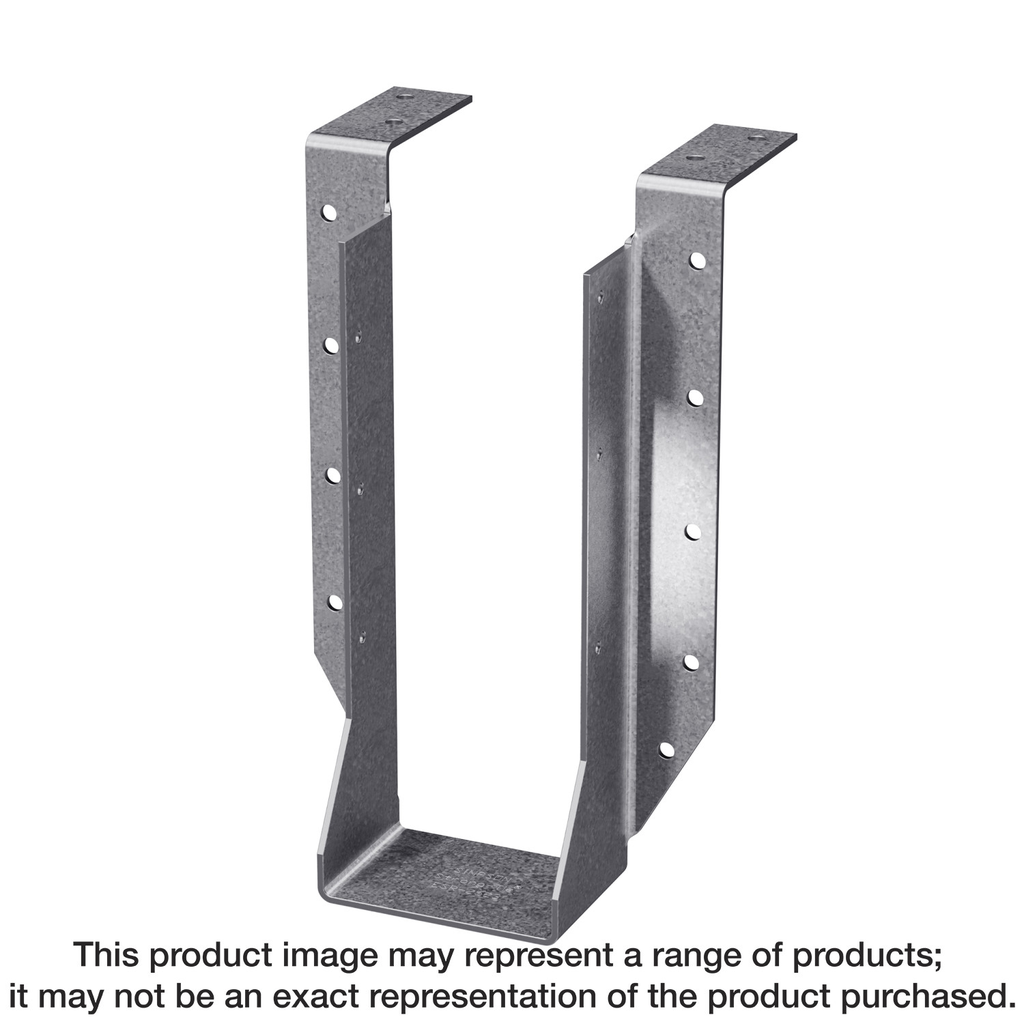

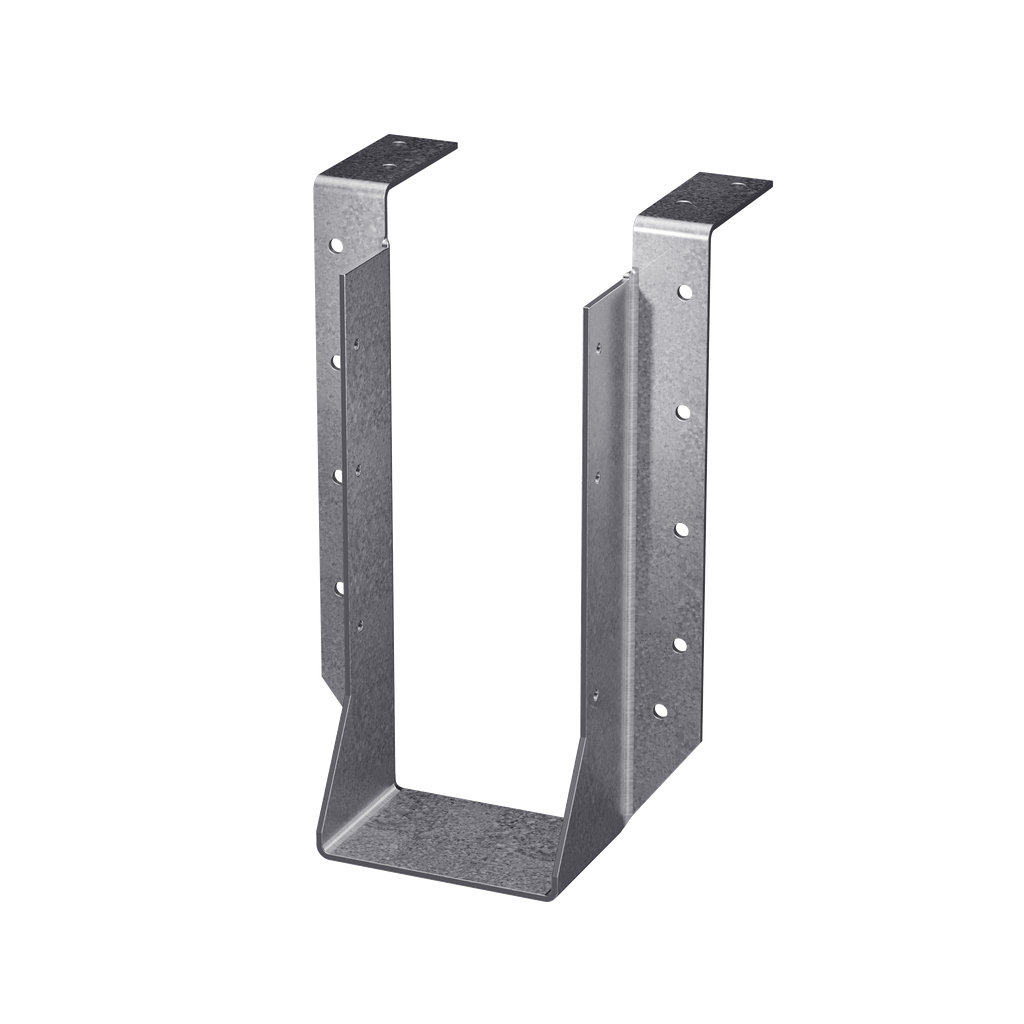

This top-flange joist hanger is expertly crafted from 12-gauge galvanized steel, ensuring robust support and longevity even in challenging environments. Designed specifically for 4×10 nominal joists, it supplies both stability and versatility, as it can accommodate skewing or sloping up to 45 degrees. Notably, the HUTF-series hangers are load-rated and built to be code compliant, making them a reliable choice for various construction projects. With additional options for rough beam sizes available upon special order, this joist hanger exemplifies Simpson Strong-Tie’s commitment to quality and performance in structural connections.
Description
The HUTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty, top-flange joist hanger features face-nailing that allows the hanger to be securely attached to the member. The HUTF is available with one “A” flange concealed.
Additional information
| Weight | 1.74 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 4×10 |
| Depth | 6.0105 min. – 6.2605 max. in |
