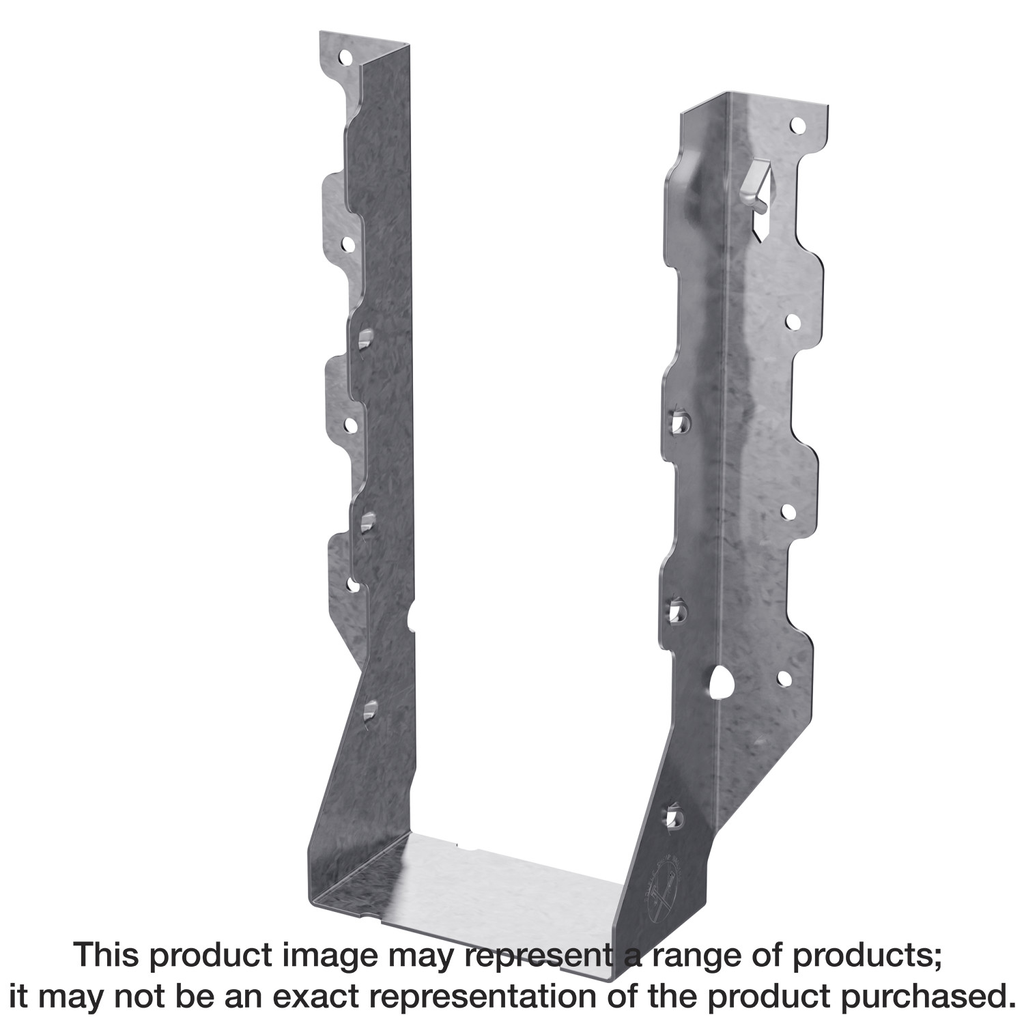

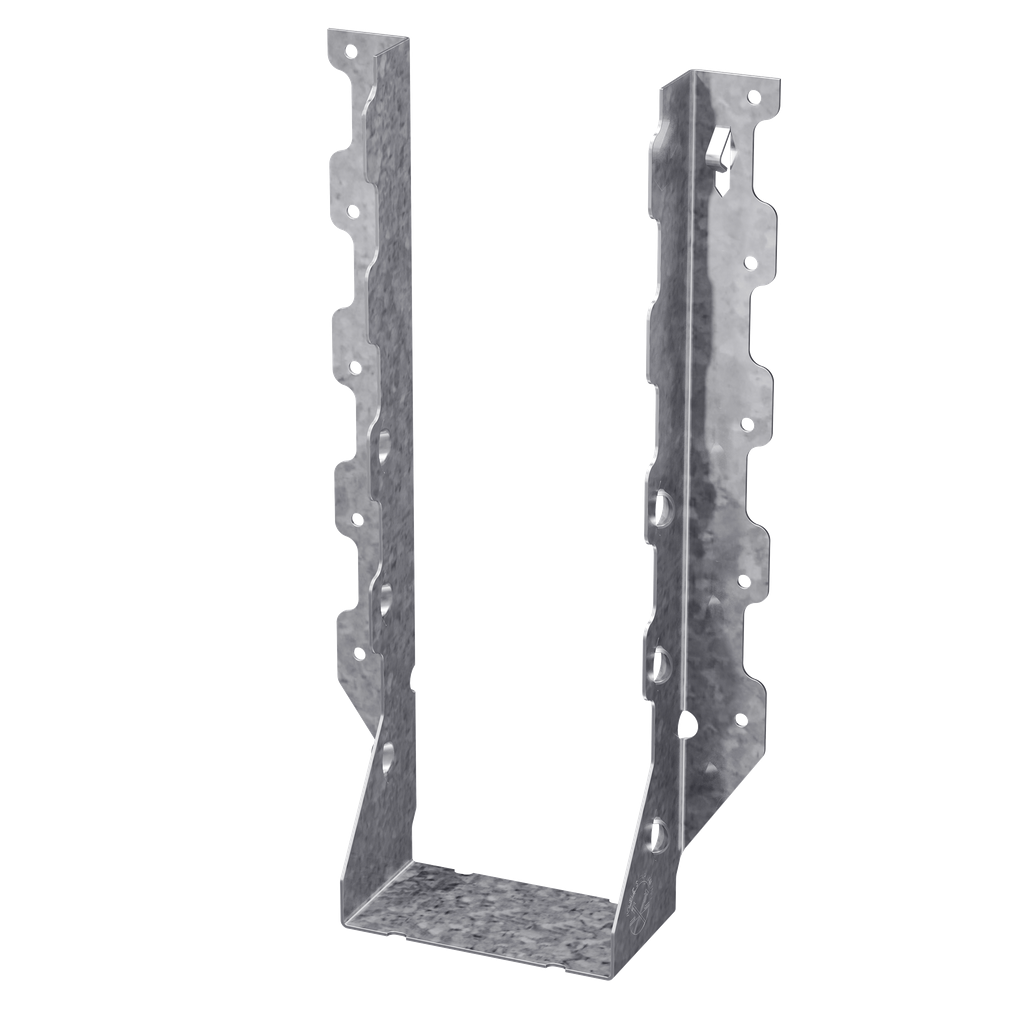

4 X 14 DBL SHEAR FACE MOUNT HANGER
$6.54
The LUS414 face-mount joist hanger from Simpson Strong-Tie is expertly crafted from 18-gauge galvanized steel, offering exceptional durability and enhanced corrosion resistance for long-lasting performance. Designed to accommodate 4×12 and 4×14 joists, it features an innovative patented double-shear nailing design that maximizes strength while minimizing the number of nails required for installation. The incorporation of speed prongs ensures a fast and straightforward setup, making it ideal for those working in tight spaces, while its angled nailing capability provides added convenience when attaching joists. Overall, this robust hanger is a reliable solution for your construction needs, effectively supporting your structural framework with ease.
Description
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
Additional information
| Weight | 0.69 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Joist Size | 4×12, 4×14 |
| Depth | 5.7795 in |
