4 X 6 COLUMN BASE HDG
$70.00

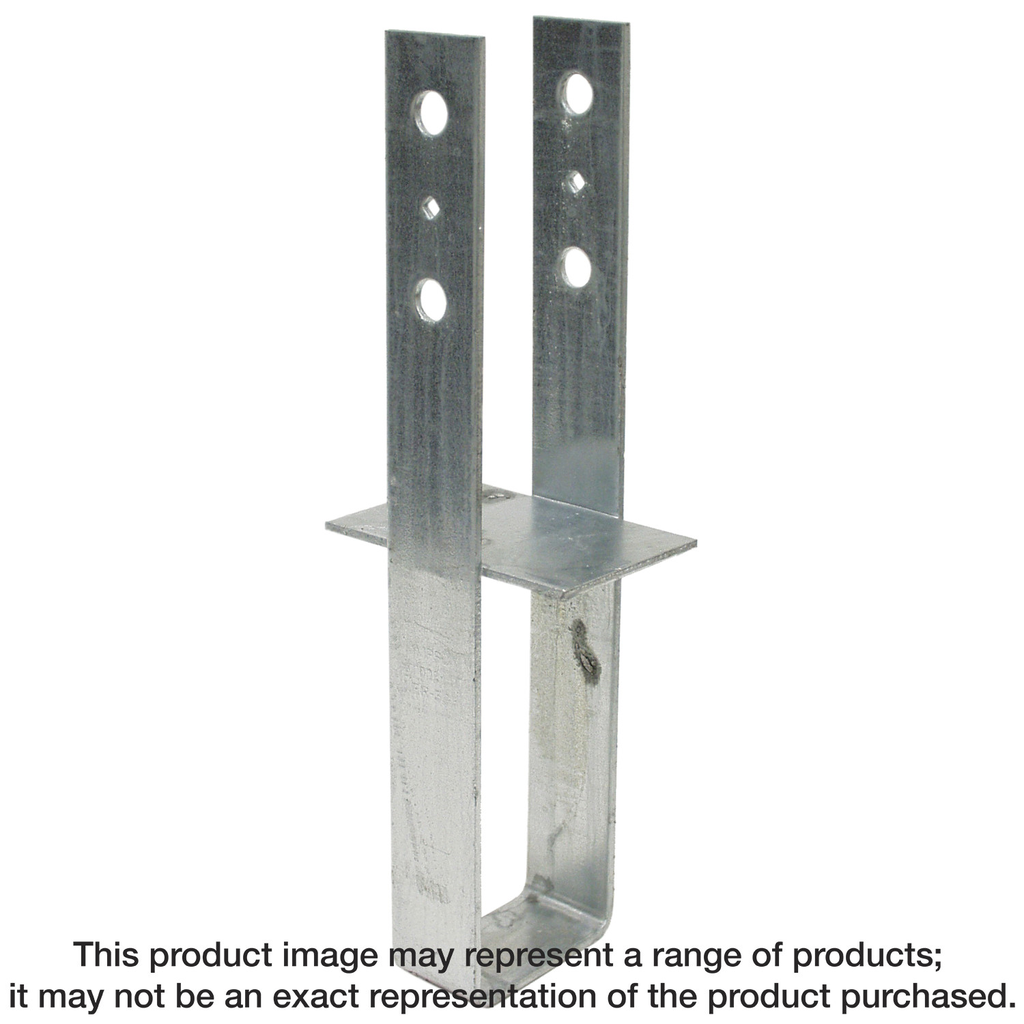

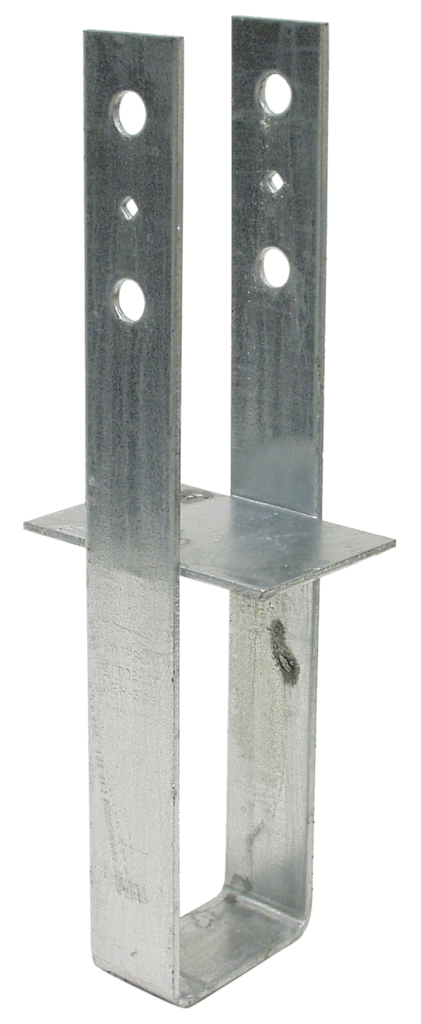

This column base from Simpson Strong-Tie is expertly crafted from robust 7-gauge steel, ensuring long-lasting strength and durability for your construction projects. Designed specifically for 4×6 nominal columns, it features bolt hole locations that adhere to code-required spacing, optimizing its load capacity. The hot-dip galvanization process provides enhanced corrosion resistance, making it ideal for use in exterior applications and with treated wood, while its increased uplift resistance effectively tackles challenges posed by wind or seismic activities. This column base is a reliable choice for any structural support needs requiring both strength and resilience.
Description
The CB is designed to connect posts to concrete foundations for a wide range of lumber, glulam, and engineered wood product sizes. This column base is either cast-in-place or wet set into the concrete where the bottom of the base plate sits flush with the concrete for full post bearing. The CB is ideal for columns that require high structural values and rugged performance.
Additional information
| Weight | 5.1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 4.5 in |
| Nominal Column Size | 4×6 in |
