4 X 8 COLUMN BASE
$49.96

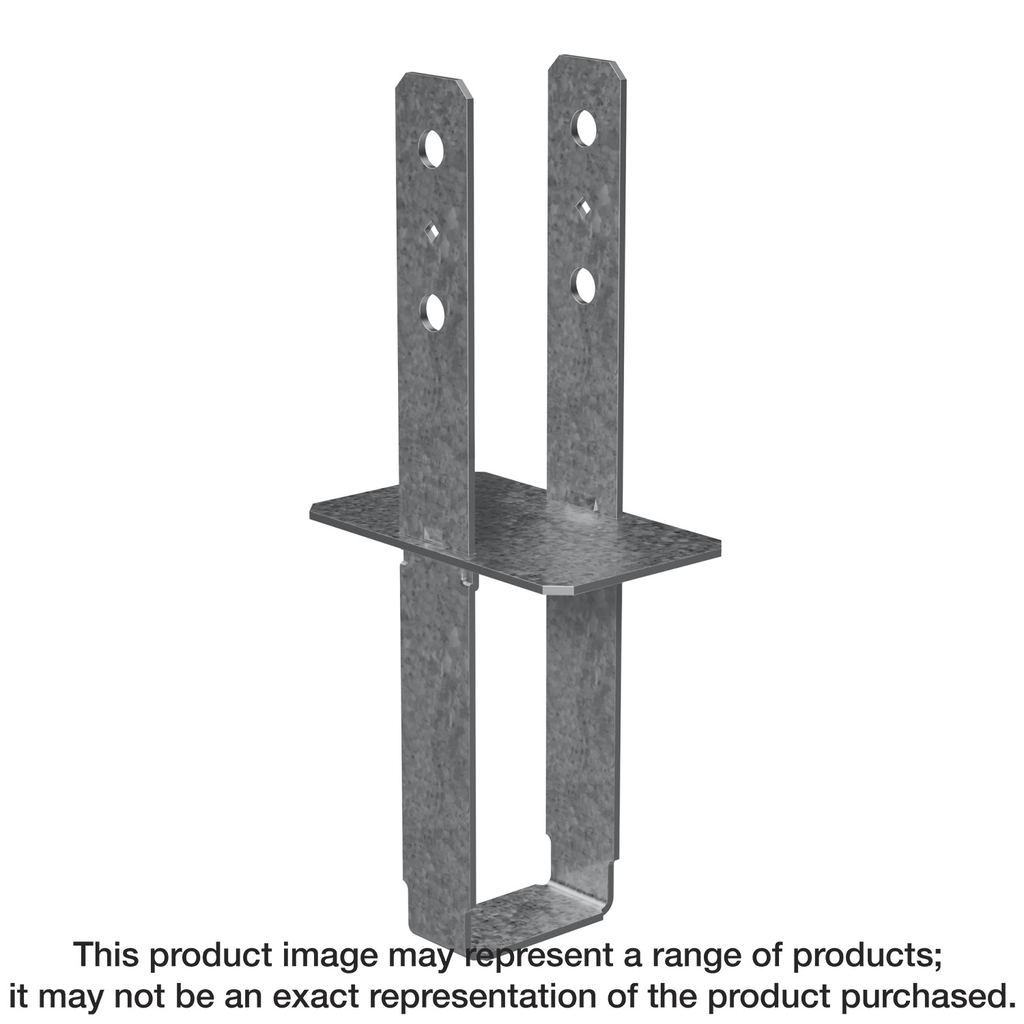

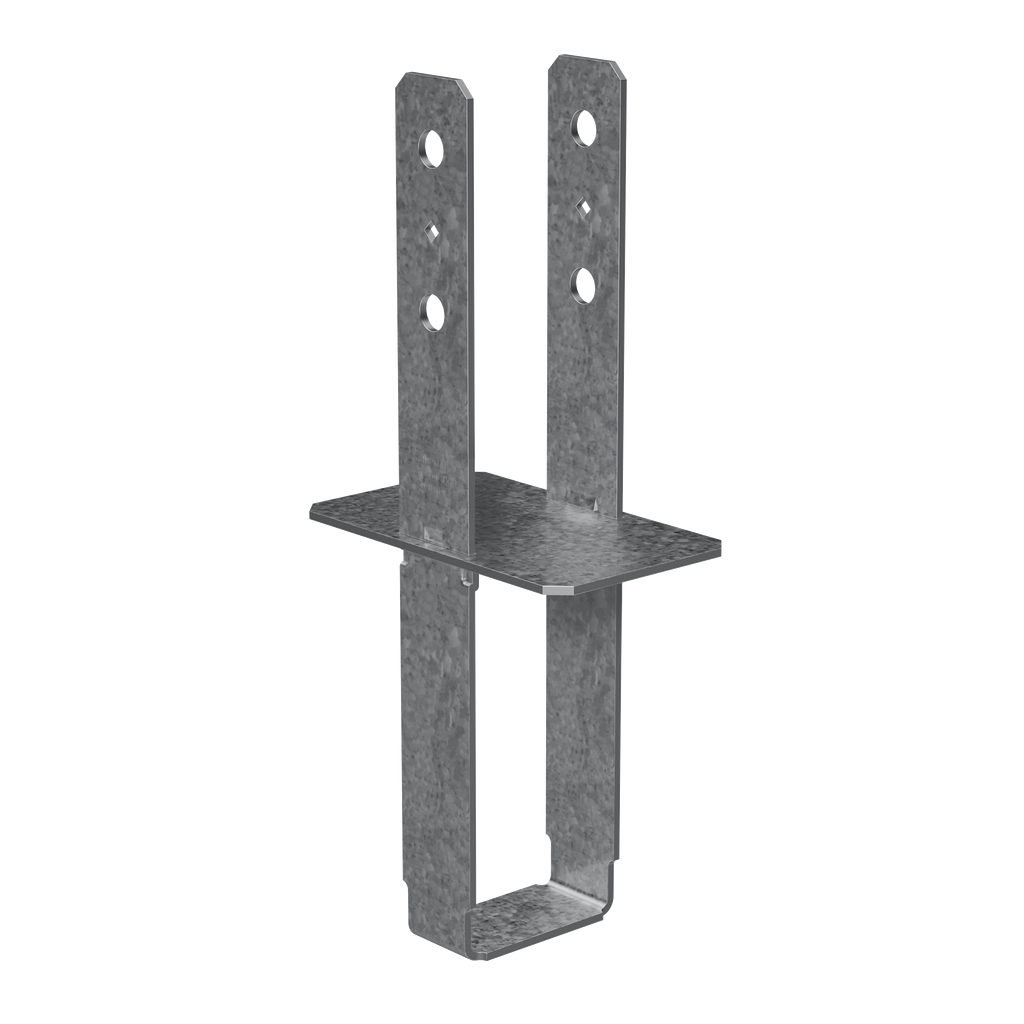

Simpson Strong-Tie has engineered the CB Galvanized Column Base specifically for 4×8 nominal columns, providing a robust support solution that enhances structural integrity. Constructed from durable 7-gauge steel and featuring a galvanized (G90) finish, this column base offers superior corrosion resistance essential for long-lasting performance in challenging environments. Its design incorporates optimized bolt hole locations, aligning with code-required spacing to ensure maximum capacity and increased uplift resistance, making it ideal for areas susceptible to wind or seismic activity. This reliable component seamlessly integrates into various building applications, upholding both strength and safety standards.
Description
The CB is designed to connect posts to concrete foundations for a wide range of lumber, glulam, and engineered wood product sizes. This column base is either cast-in-place or wet set into the concrete where the bottom of the base plate sits flush with the concrete for full post bearing. The CB is ideal for columns that require high structural values and rugged performance.
Additional information
| Weight | 4.92 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Column Size | 4×8 |
| Depth | 4.5 in |
