4 X 8 TOP FLANGE FACE MOUNT HANGER
$32.40

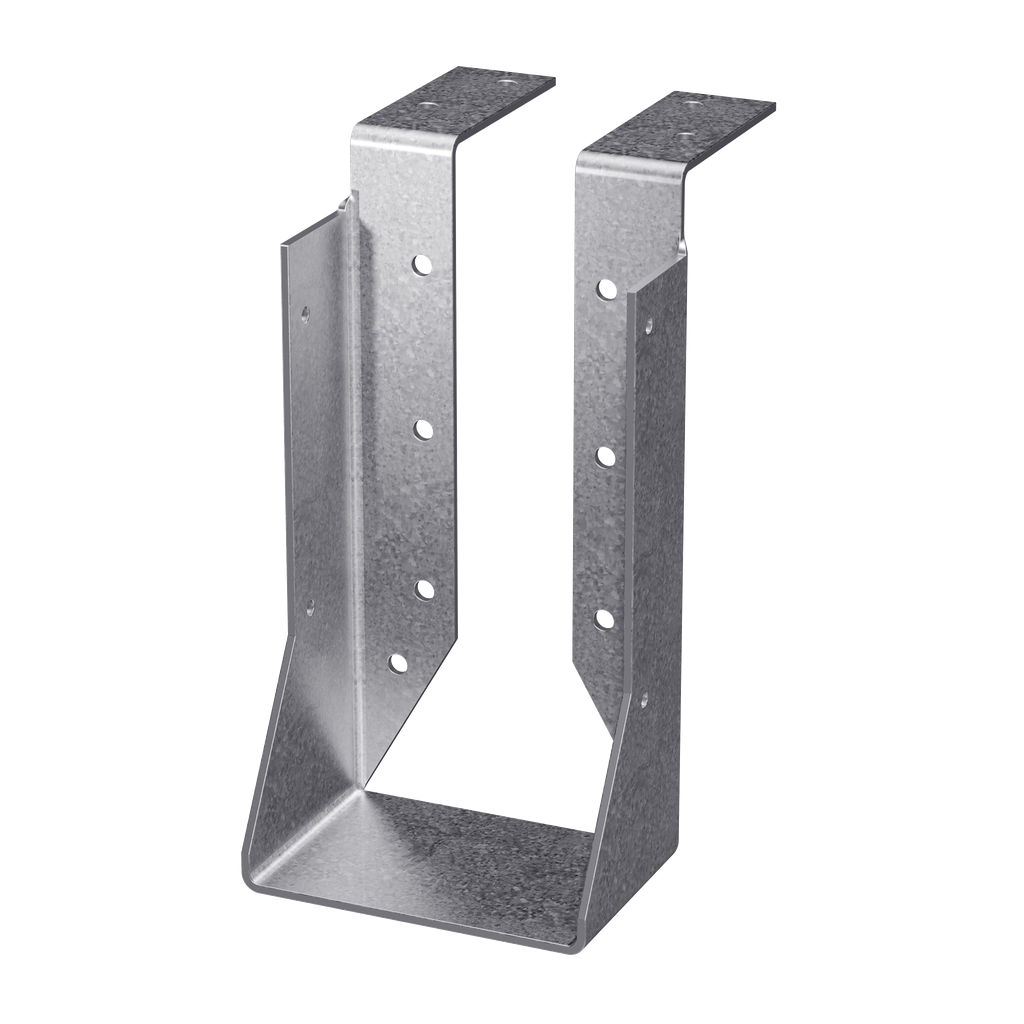

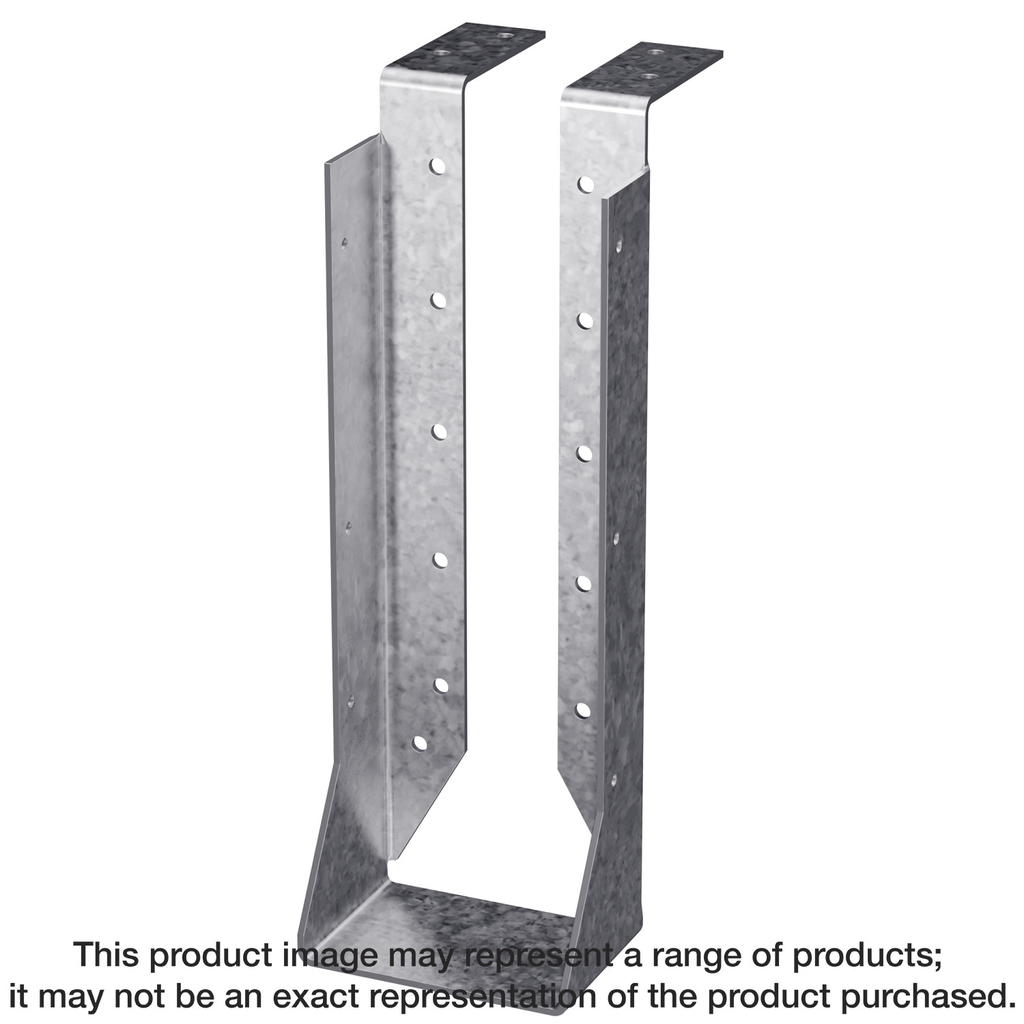

The Simpson Strong-Tie HUC48TF HUCTF Galvanized Top-Flange Concealed-Flange Joist Hanger is engineered for strength and reliability, making it an essential component for any framing project involving nominal 4×8 joists. Crafted from durable 12-gauge steel and galvanized for enhanced corrosion resistance, this hanger ensures the structural integrity of your build in various environmental conditions. Designed to accommodate slopes of up to 45 degrees, it offers flexibility while remaining load rated and code compliant to meet safety standards. For those requiring specific configurations, rough beam sizes can be specially ordered, ensuring that this hanger meets diverse framing needs effectively.
Description
The HUCTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty joist hanger is designed with two concealed flanges for end-of-wall or corner installation. The HUCTF features face-nailing that allows the hanger to be securely attached to the member.
Additional information
| Weight | 1.46 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal joist size | 4×8 |
| Load Rating | Code compliant |
