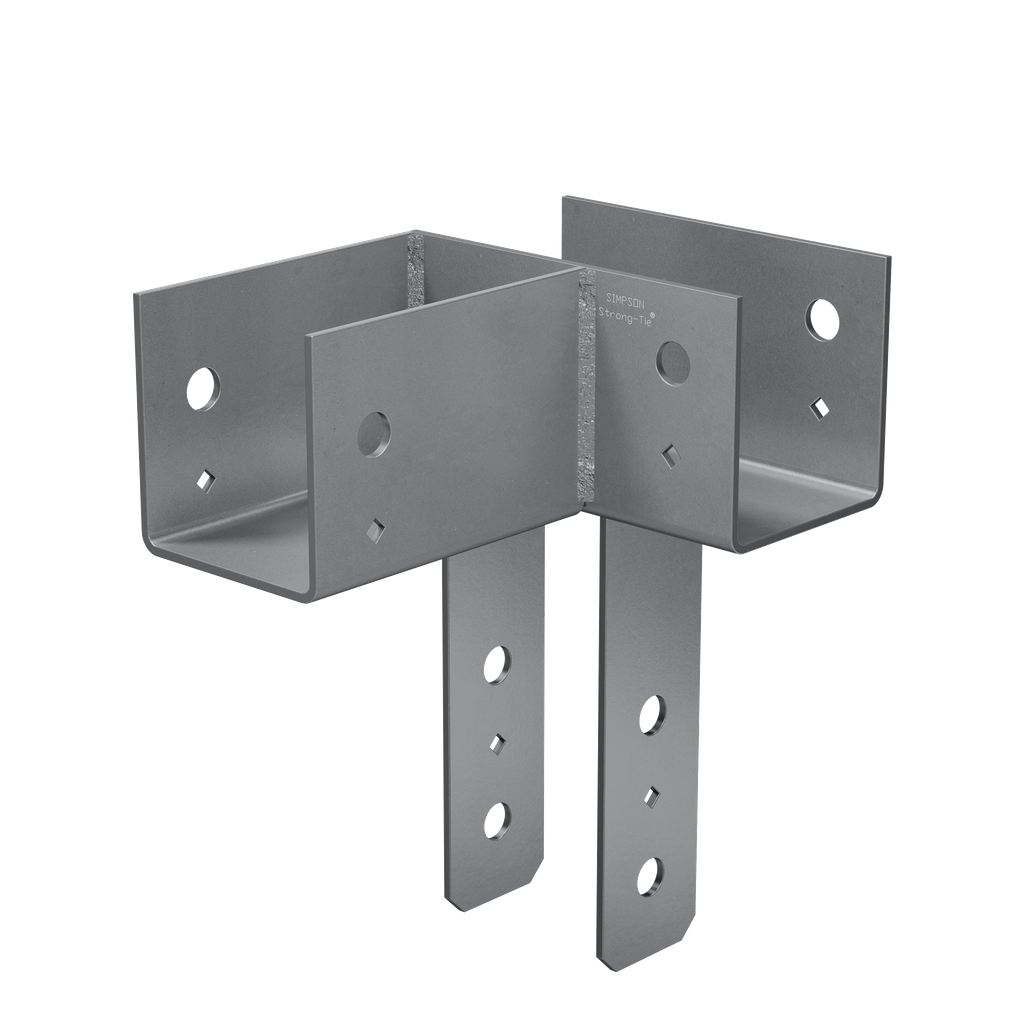

4X BEAM, 4X POST, 4X BEAM ECC L-SHAPE LF
$315.16

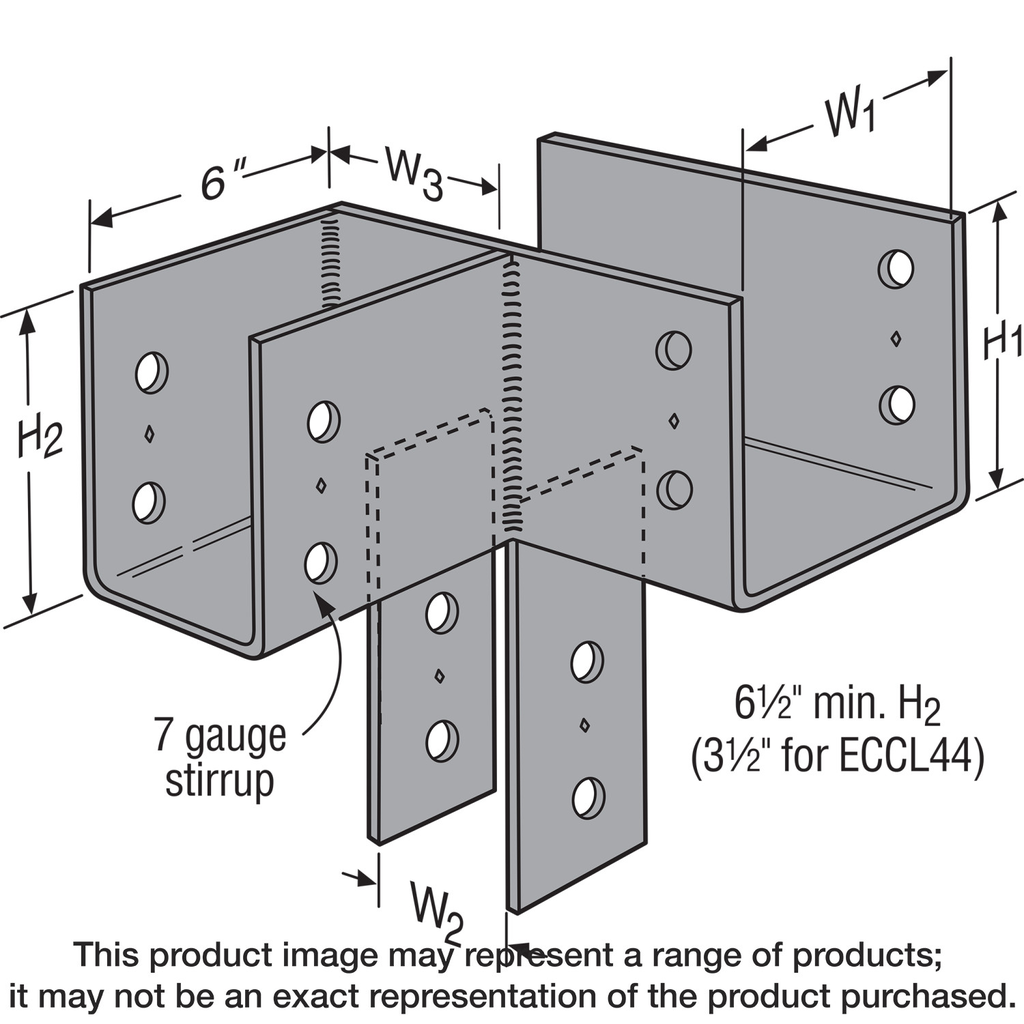

Engineered to provide robust support and reliable performance, the L-Shape End Column Cap from Simpson Strong-Tie is an essential component for any structural project utilizing 4x beams and 4x posts. Constructed from durable 7-gauge steel and assembled with certified welds, this column cap assures strength and stability, making it suitable even for demanding loading conditions. Its thoughtful design includes diamond holes for temporary fastening, while the bolt spacing adheres to NDS code requirements to ensure an optimal fit and functionality. Finished with a protective gray paint, the cap not only offers longevity but also seamlessly integrates into your construction project with a left skewed orientation; for right skewing needs, the ECCLR model is available.
Description
Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.
Additional information
| Weight | 11.22 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Member Sizes | 4x main beam, 4x post, 4x side beam |
| Depth | 9.967 in |
