4X BEAM, 4X POST, 4X BEAM, ECC L SHAPE R
$315.16

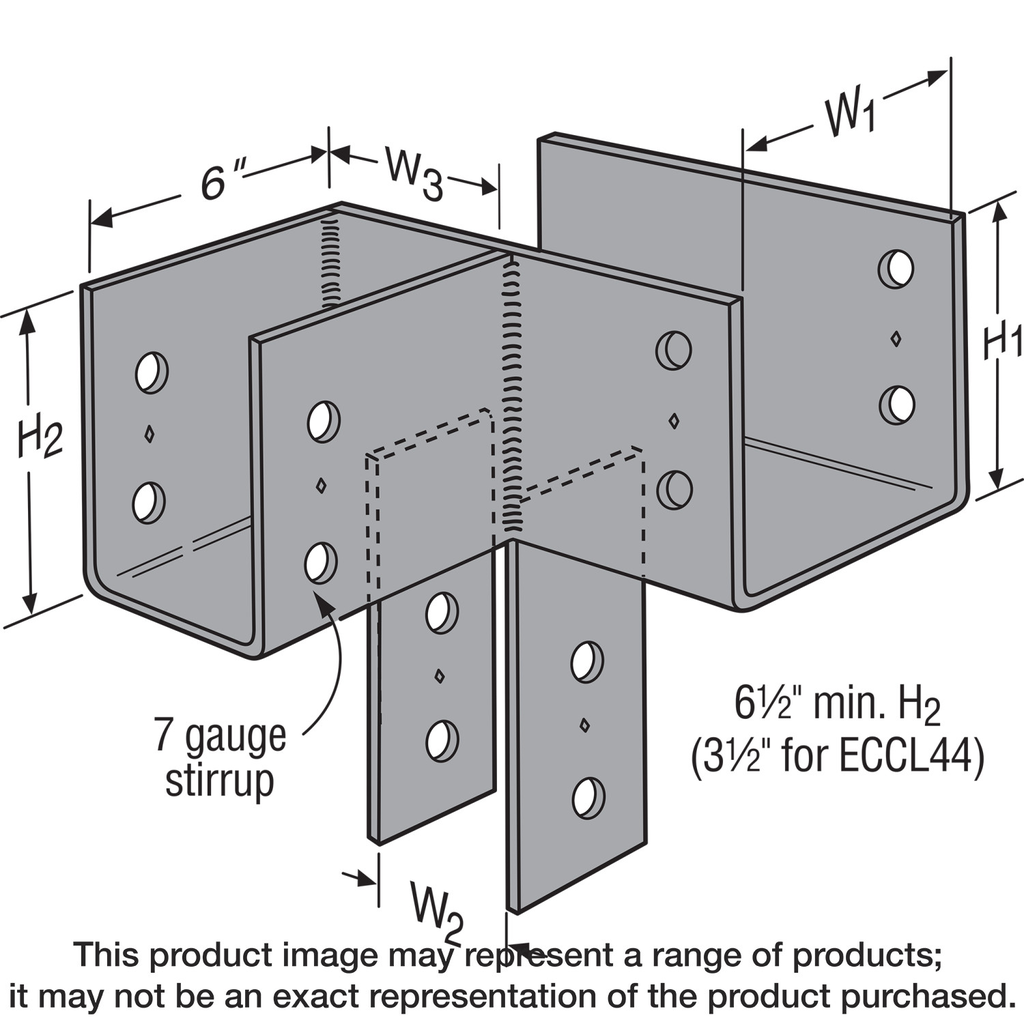

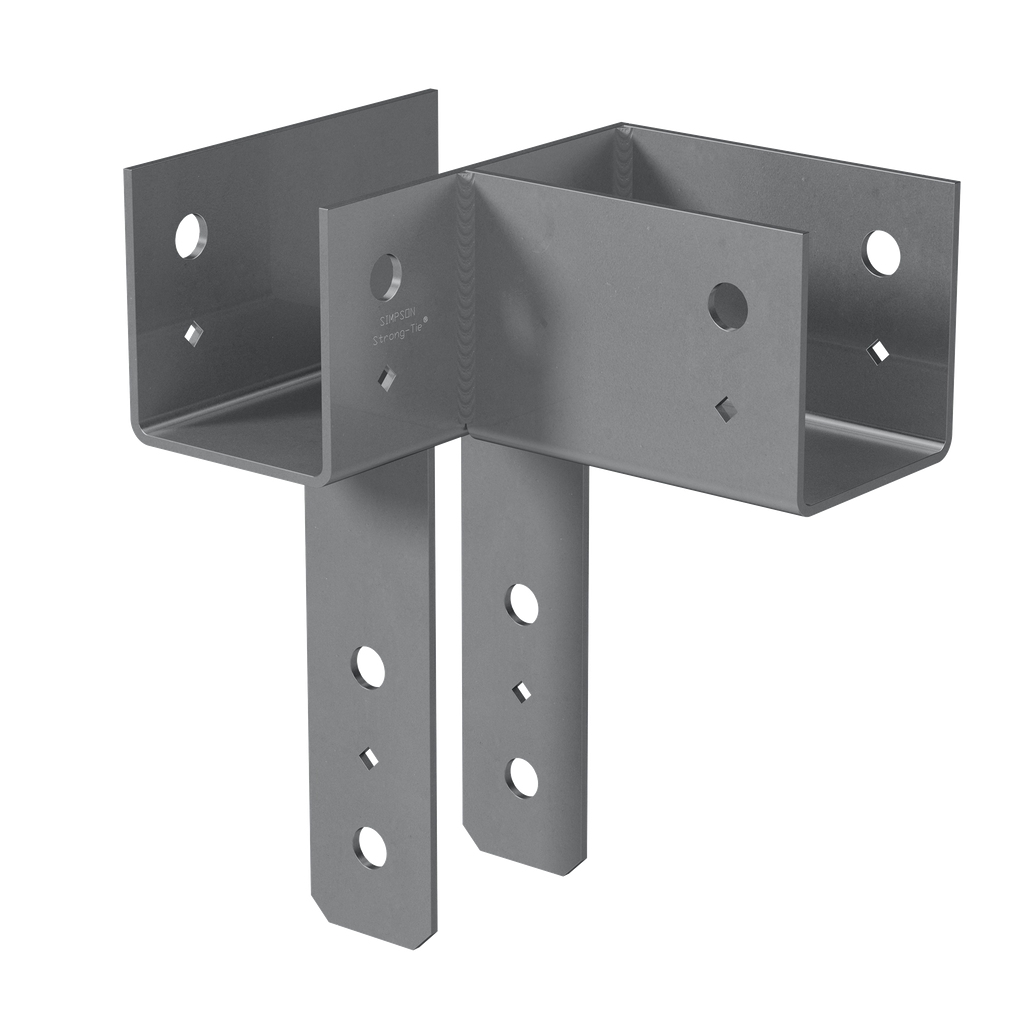

Engineered for durability and adaptability, the L-Shape End Column Cap is specifically designed to support 4x beams and posts, accommodating skewed right configurations. Constructed from robust 7-gauge steel and assembled with certified welds, this column cap offers reliability and strength, ensuring it can handle demanding structural loads with confidence. The design includes diamond holes that facilitate temporary fastening, while the bolt spacing complies with NDS code requirements, promoting optimal performance. With a sleek Simpson Strong-Tie gray paint finish, this component not only meets structural needs but also seamlessly integrates into various construction projects.
Description
Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.
Additional information
| Weight | 11.22 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 9.967 in |
| Nominal Member Sizes | 4x main beam, 4x post, 4x side beam |
