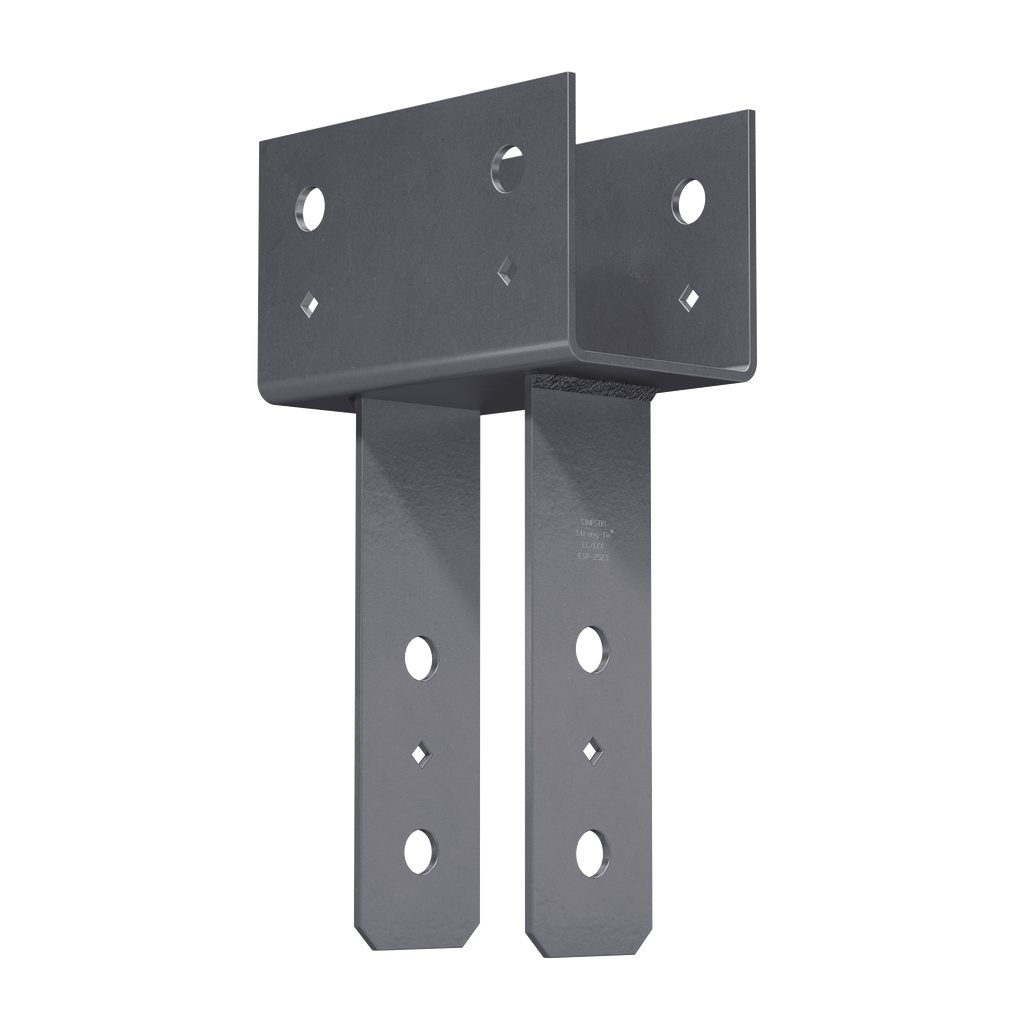

4X BEAM, 4X POST HDG COLUMN CAP
$116.18
The CC44HDG column cap from Simpson Strong-Tie is expertly designed for secure connections between 4x beams and 4x posts, ensuring robust structural integrity in your projects. Its hot-dip galvanization process provides exceptional corrosion resistance, making it suitable for various exterior and treated-wood applications. Constructed from durable 7-gauge steel, this column cap meets NDS code requirements with optimal bolt spacing, enhancing its performance under demanding conditions, including uplift loads from earthquakes or high winds. With certified welds and diamond holes for temporary fastening, this product not only guarantees strength and reliability but also facilitates ease of installation, making it an essential component for any construction endeavor.
Description
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 6.69 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Beam Width | 4x |
| Nominal Post Size | 4x |
