4X BEAM, 4X POST HDG ECC
$98.10

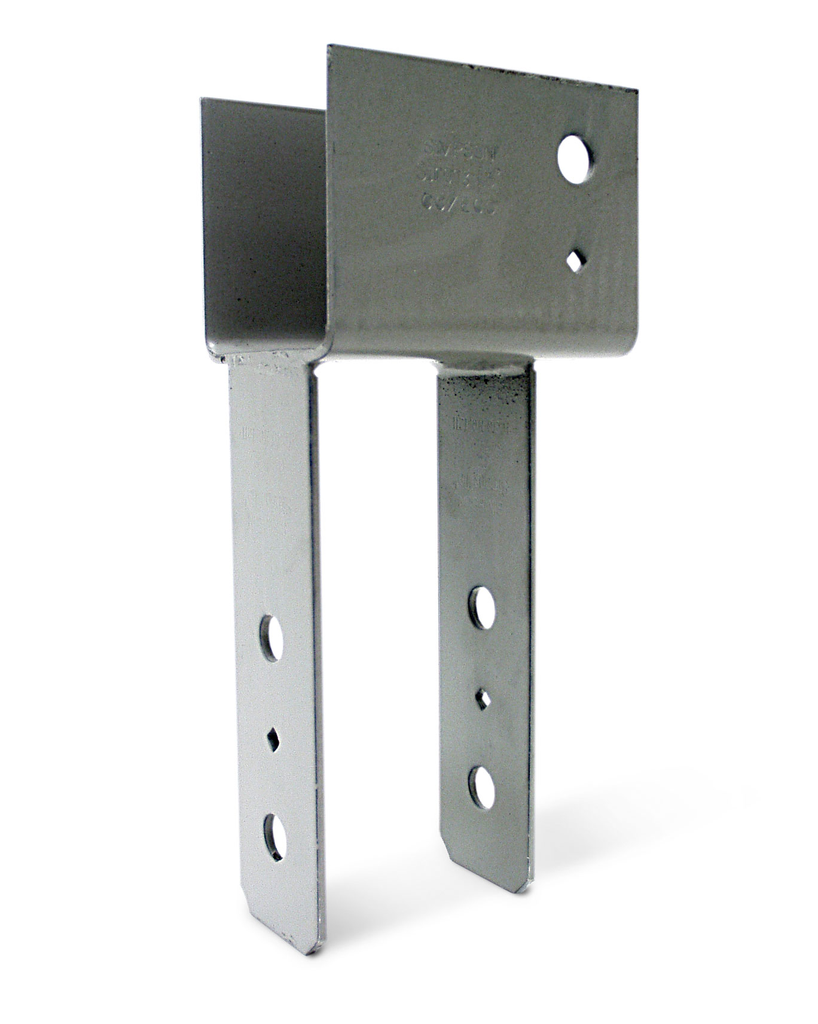

Engineered for strength and reliability, the ECC44HDG end column cap is an essential component for any structure utilizing 4x beams and posts. Constructed from durable 7-gauge steel and featuring certified welds, it instills confidence in its load-bearing capabilities, ensuring optimal performance even under heavy stress from uplifting forces encountered during earthquakes or high winds. The hot-dip galvanization provides robust corrosion resistance, making it suitable for exterior environments and treated wood applications. Designed with diamond holes for temporary fastening and compliant bolt spacing that adheres to NDS code requirements, this column cap effectively combines functionality with durability, making it a reliable choice for building projects.
Description
The ECC is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 5.9 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3.974 in |
| Load Capacity | Increased Uplift for Earthquake/Wind |
