4X BEAM, 4X POST SDS
$123.23

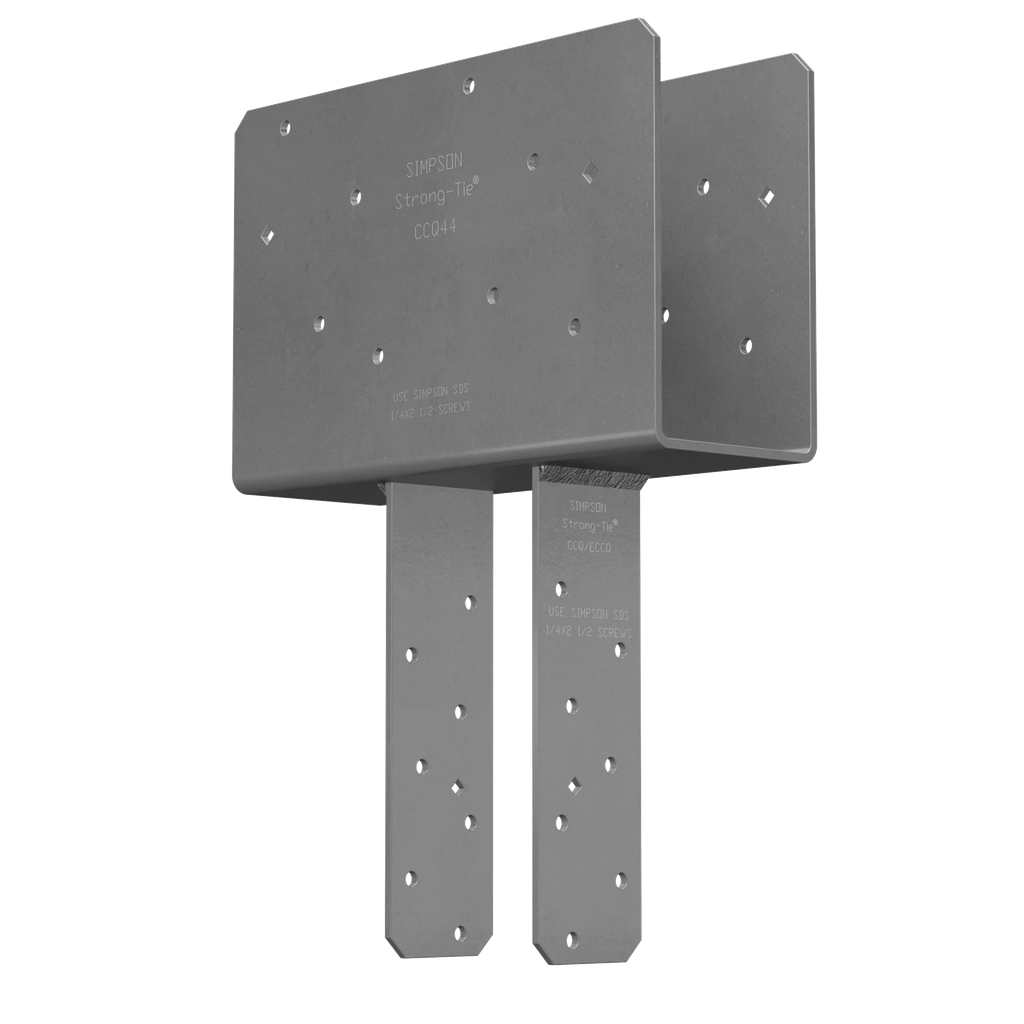

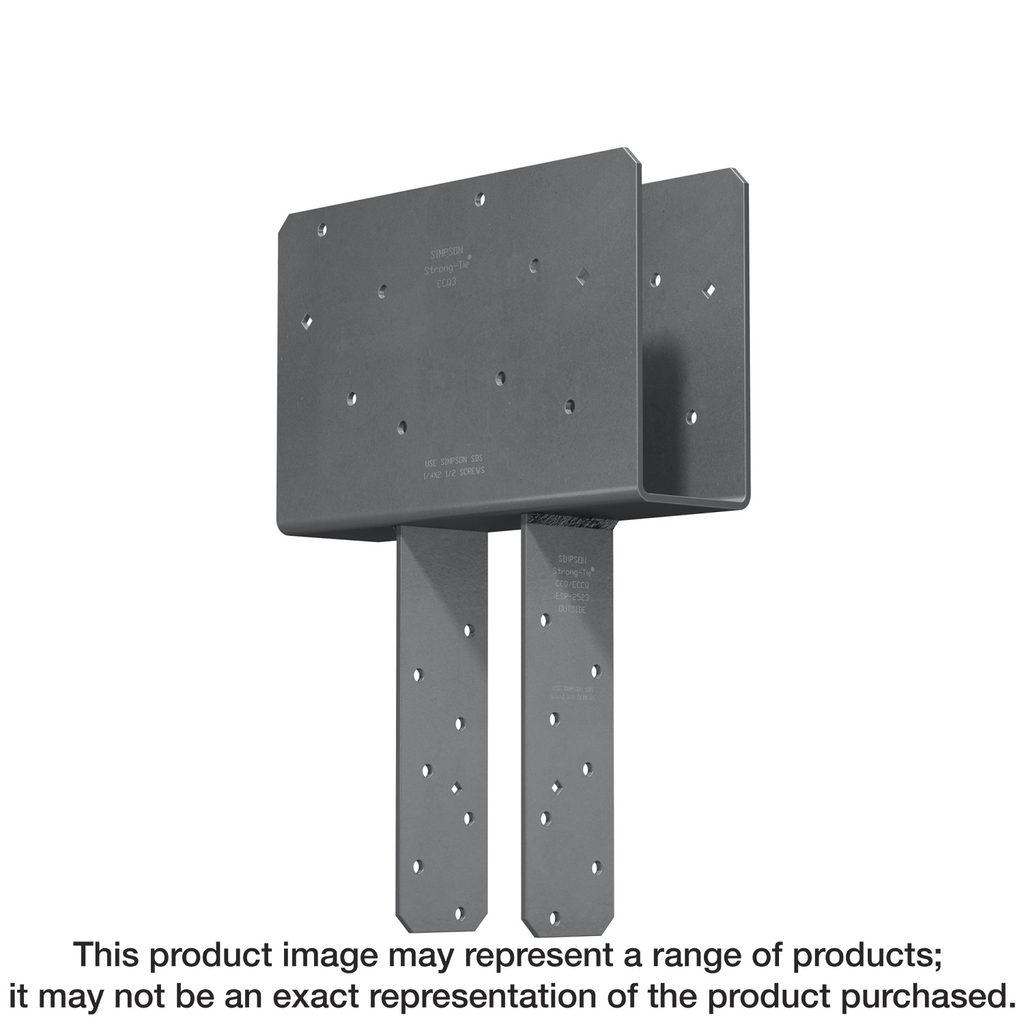

The CCQ™ Column Cap from Simpson Strong-Tie is expertly crafted to provide robust support in various construction applications, accommodating nominal beam widths and post sizes of 4x. Made from high-quality 7-gauge steel and featuring certified welds, this column cap ensures exceptional strength and reliability, making it a solid choice for projects that may be subjected to uplift loads from wind or earthquakes. Its innovative design includes diamond holes for temporary fastening and allows for the use of Strong-Drive® SDS screws, which offer a lower profile than standard through bolts. Finished with a durable gray paint, this product not only enhances structural integrity but also blends seamlessly into any design.
Description
The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional information
| Weight | 12.96 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Beam Width | 4x |
| Nominal Post Size | 4x |
