4X BEAM, 6X POST, 4X BEAM ECC L SHAPE RT
$334.91

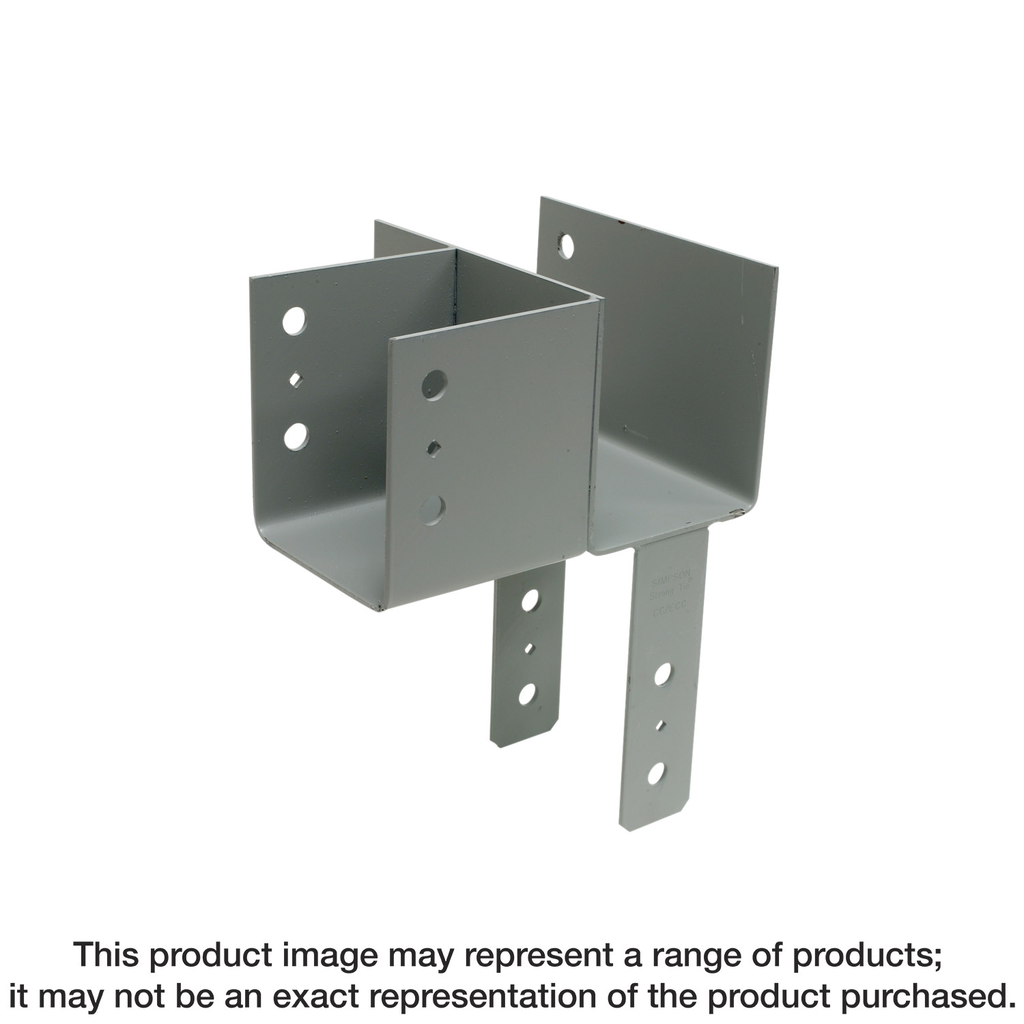

Engineered for robust structural support, the L-Shape End Column Cap enhances the performance of 4x beams and 6x posts, especially in applications requiring a skewed right configuration. Constructed from durable 7-gauge steel, it is assembled with certified welds that ensure confidence in its strength and loading capabilities. The strategic bolt spacing adheres to NDS code requirements, allowing for reliable performance under various conditions. Featuring diamond holes, this cap simplifies temporary fastening during installation, and its sleek gray paint finish adds a touch of durability and aesthetic appeal to any project. This component is essential for builders seeking dependable strength and compliance in their construction endeavors.
Description
Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.
Additional information
| Weight | 18.82 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Member Sizes | 4x main beam, 6x post, 4x side beam |
| Depth | 8.5 in |
