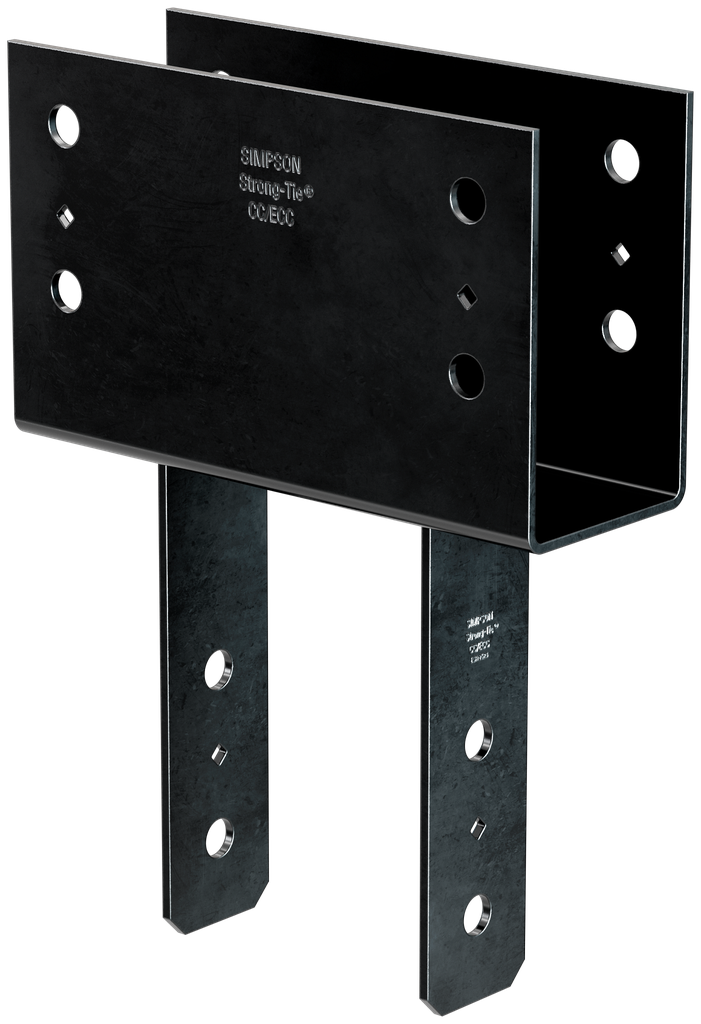

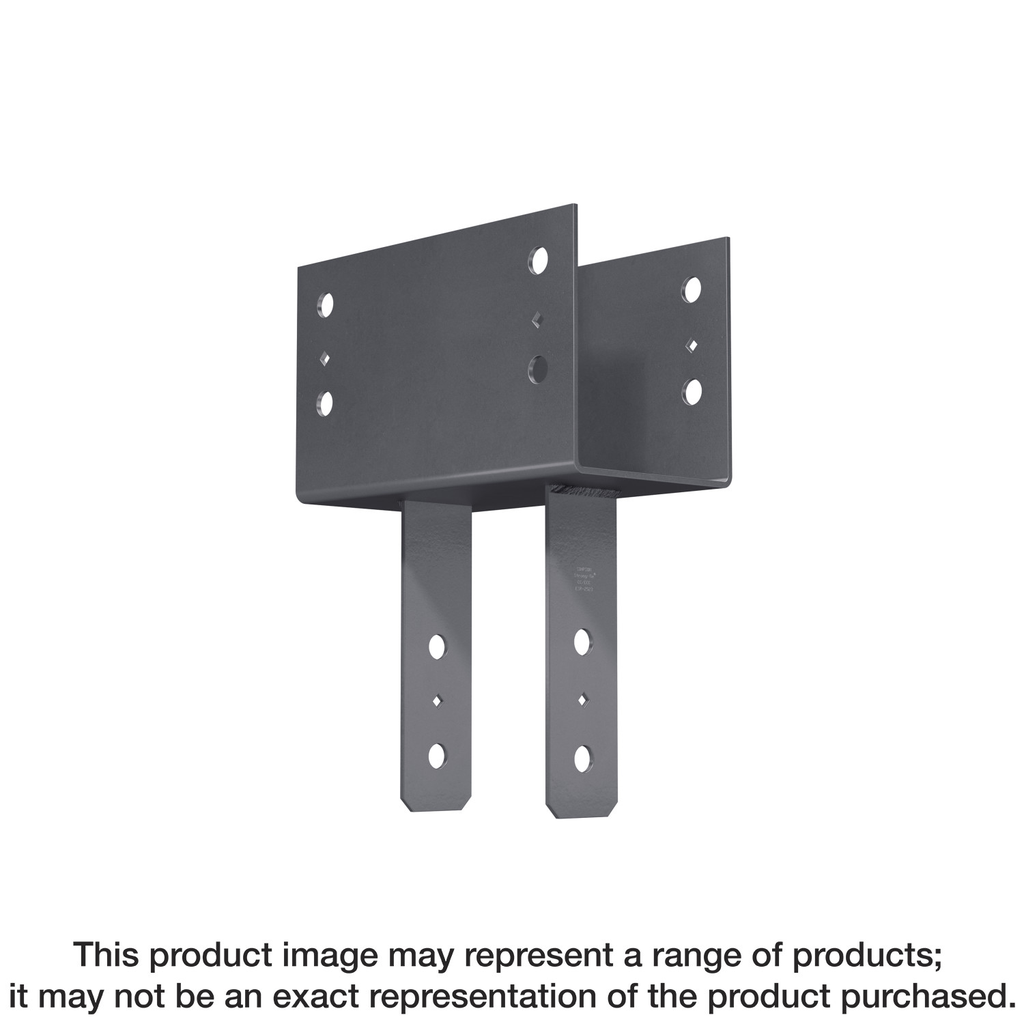

4X BEAM, 6X POST BLACK COLUMN CAP
$129.77
The black powder-coated column cap from Simpson Strong-Tie is expertly crafted to provide robust support for 4x beams paired with 6x posts. With certified welds, this cap ensures confidence in its strength and loading capabilities, making it a trusted choice for various construction needs. Its decorative finish adds an appealing aesthetic touch while also featuring diamond holes for temporary fastening, enhancing usability during installation. Specifically designed to accommodate increased uplift loads, it meets stringent NDS code requirements, ensuring optimal performance particularly in areas prone to earthquakes or high winds. Constructed from durable 7-gauge steel, this column cap is built to endure the rigors of your structural projects.
Description
Columns caps are an integral part of structural systems designed to provide an increased bearing area while securing a wood beam to a wood column. Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The CCPC provides this strong column-beam connection in wood construction projects. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column helping to distribute the load from the beam and provide added support and stability for the connection. The CCPC is part of the Simpson Strong-Tie Indoor Architectural products Classic Collection, featuring modern smooth edges and clean lines. Along with its powder-coat finish, the sleek design makes this connector ideal for projects where the connectors are visible.
Additional information
| Weight | 11.83 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal beam width | 4 in |
| Nominal post width | 6 in |
