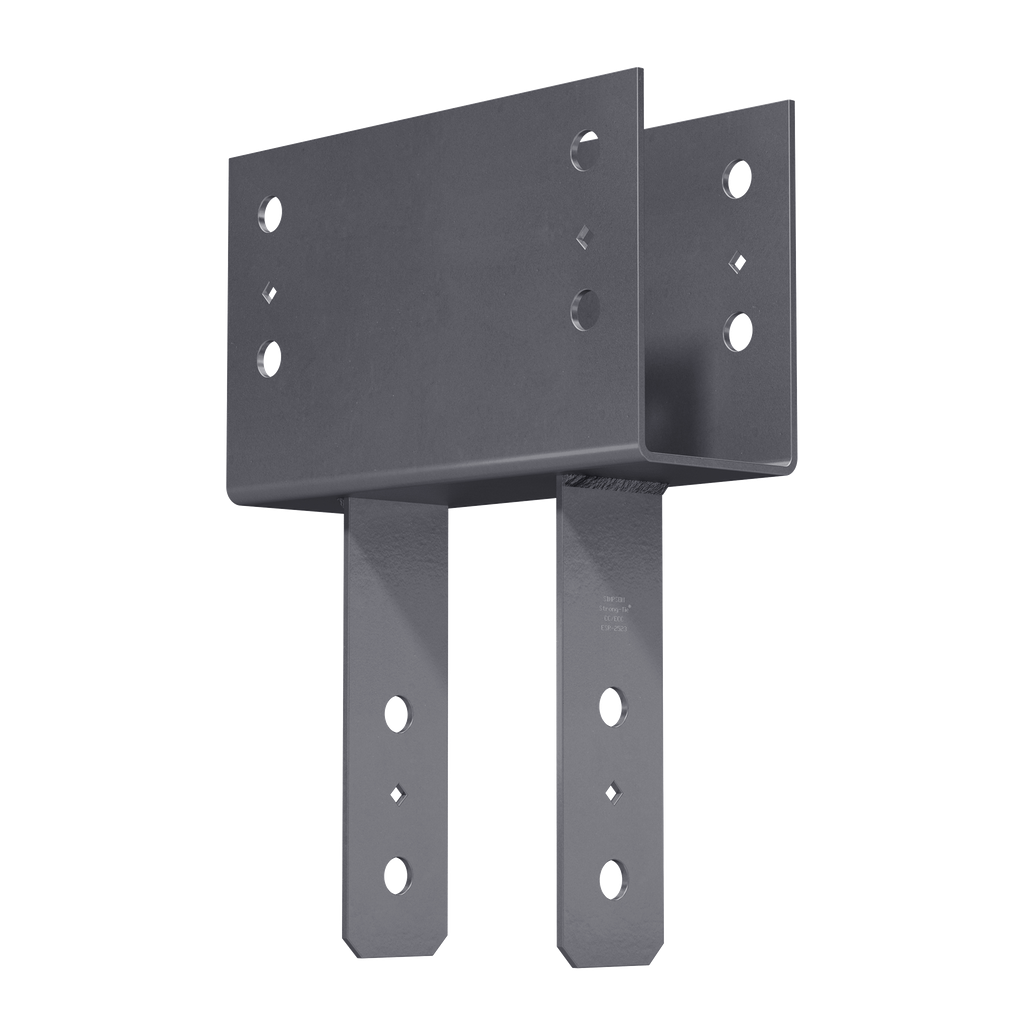

4X BEAM, 6X POST COLUMN CAP
$122.27
Engineered for exceptional strength and reliability, the CC46 Column Cap from Simpson Strong-Tie is specifically designed to connect a nominal 4x beam to a 6x post. Constructed from durable 7-gauge steel, this cap ensures optimal performance with bolt spacing that complies with NDS code requirements, offering peace of mind during installation. The certified welds guarantee robust integrity, making it suitable for demanding uplift loads required in earthquake or wind loading scenarios. Finished in a distinctive Simpson Strong-Tie gray paint, it also features diamond holes for easy temporary fastening, enhancing the versatility and functionality of this essential structural component.
Description
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 11.83 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal beam width | 4x |
| Nominal post size | 6x |
