4X BEAM, 6X POST ECC
$103.25

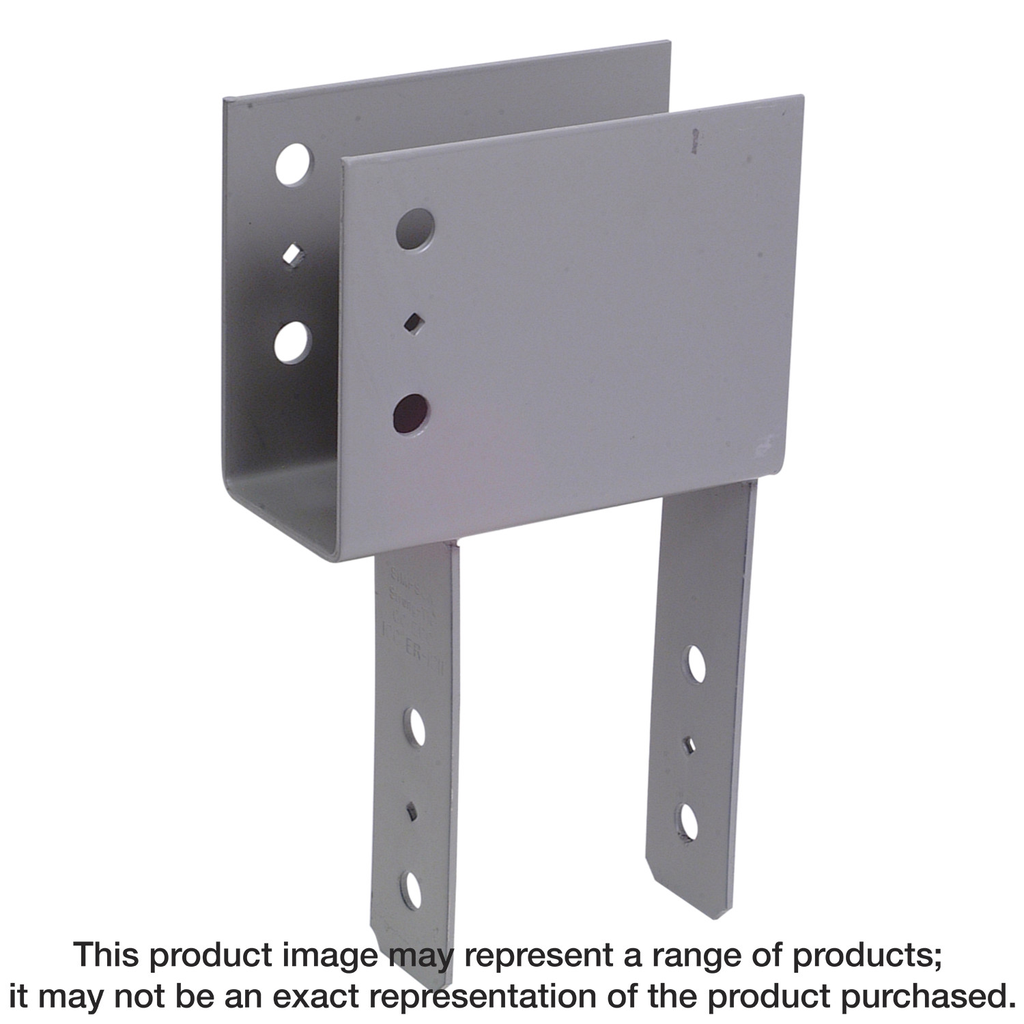

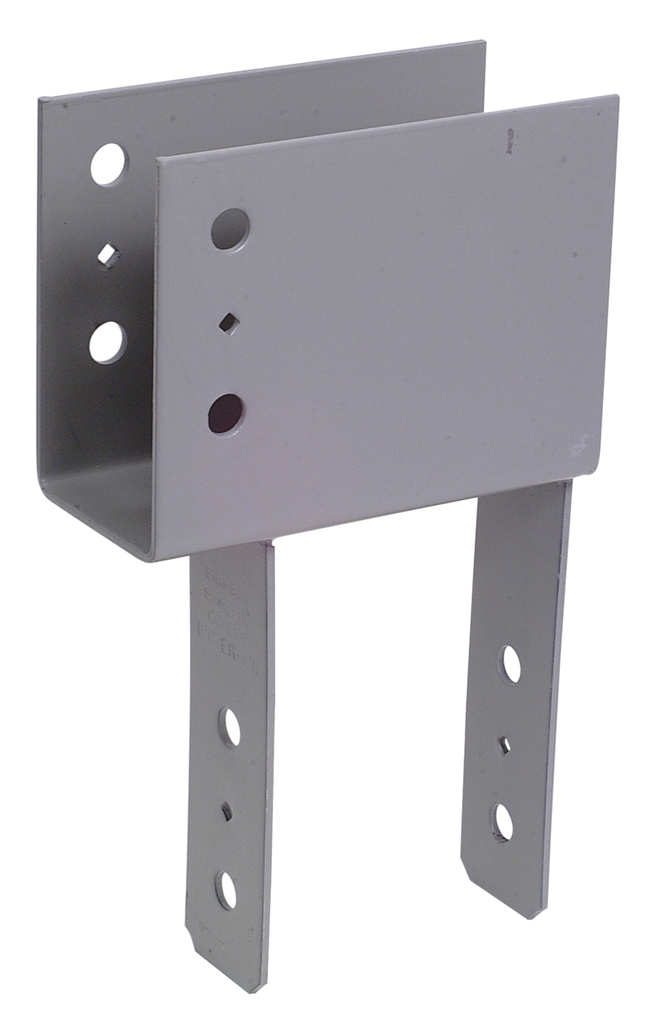

The ECC End Column Cap is engineered with a robust 7-gauge steel construction, ensuring exceptional strength and reliability for your structural needs. With certified welds that instill confidence in its load-bearing capabilities, this cap also features bolt spacing designed to comply with NDS code requirements, promoting optimal performance in various applications. Its cleverly designed diamond holes facilitate temporary fastening, further enhancing usability during installation. Finished in a distinctive Simpson Strong-Tie gray paint, this column cap is not only functional but also aesthetically pleasing, making it an excellent choice for projects requiring increased uplift loads, especially in areas susceptible to earthquake or wind loading.
Description
The ECC is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 9.67 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal post size | 6x |
| Nominal beam width | 4x |
