4X BEAM, 6X POST HDG COLUMN CAP
$154.37

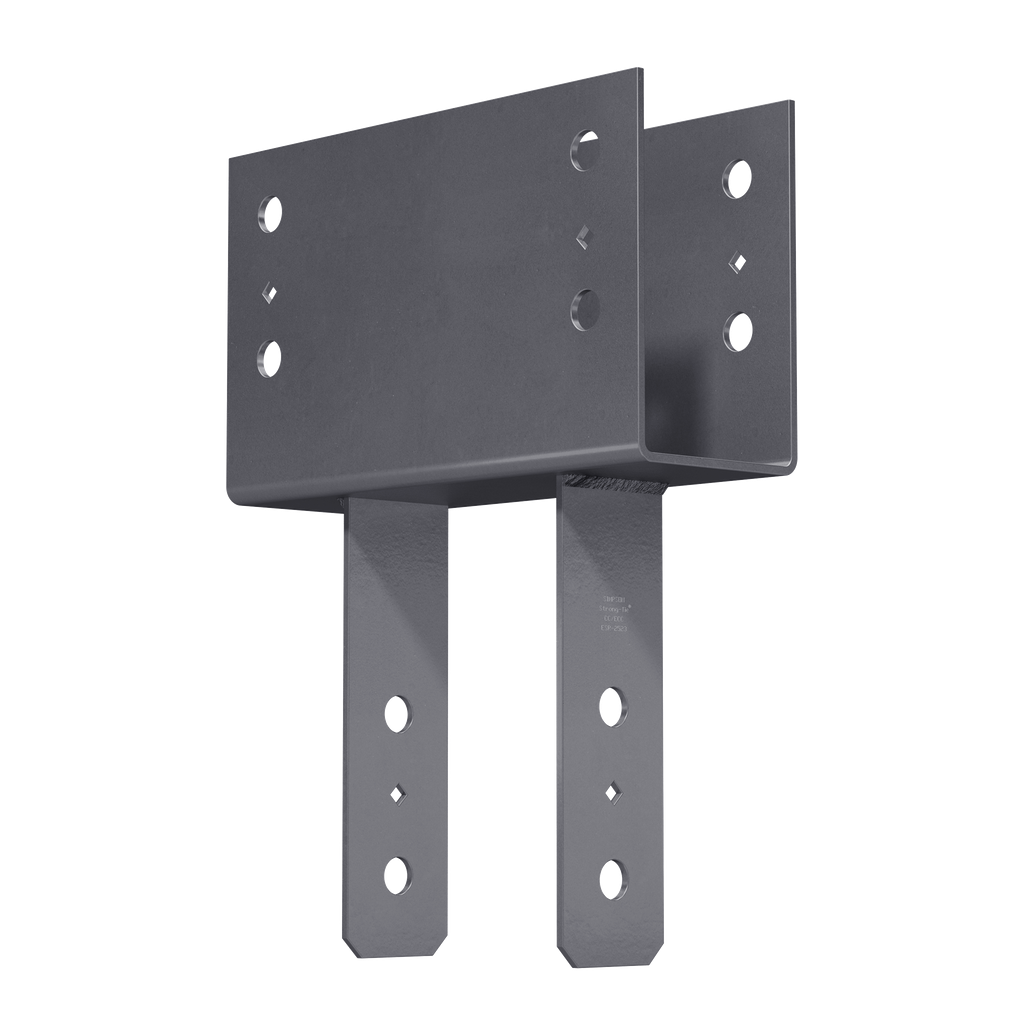

Engineered for exceptional strength and reliability, the CC Hot-Dip Galvanized Column Cap from Simpson Strong-Tie is an essential component for connecting 4x beams to 6x posts in structural applications. Crafted from robust 7-gauge steel and treated with hot-dip galvanization, this column cap offers outstanding corrosion resistance, making it suitable for both exterior and treated-wood environments. Its design ensures that uplift loads are enhanced for added security during high-wind or earthquake conditions, while certified welds instill confidence in its structural integrity. Notably, the innovative bolt spacing complies with NDS code requirements, ensuring optimal performance, and the diamond holes enhance adaptability for temporary fastening during construction.
Description
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 11.83 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Beam Width | 4 in |
| Nominal Post Size | 6 in |
