4X BEAM, 6X POST HDG ECC
$189.09

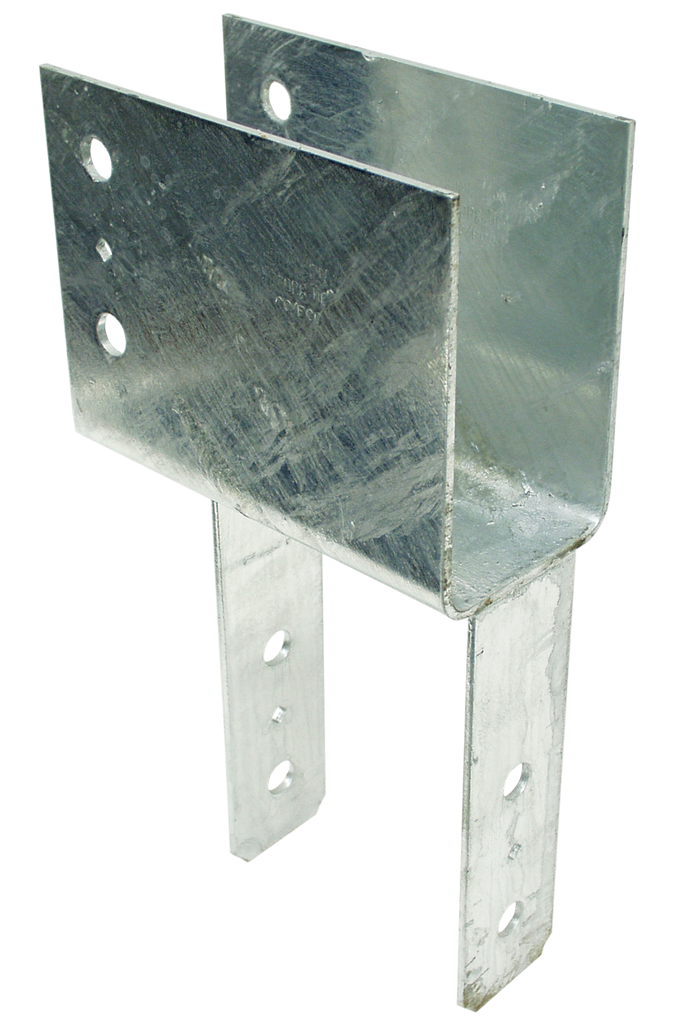

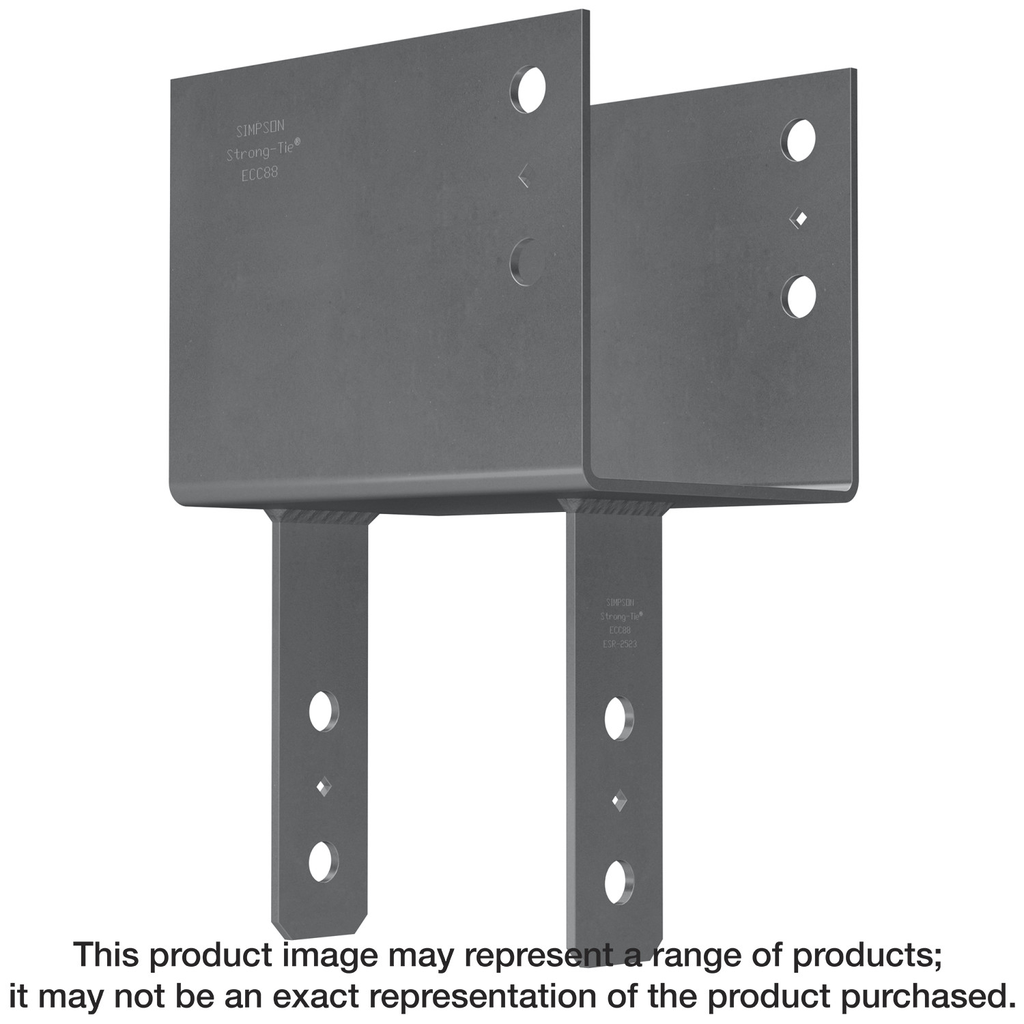

Engineered for superior strength and durability, this end column cap from Simpson Strong-Tie is crafted from robust 7-gauge steel, ensuring exceptional performance even in challenging conditions. Designed to accommodate 4x beams and 6x posts, it meets the National Design Specification (NDS) code requirements with precise bolt spacing, allowing for optimal load management. The hot-dip galvanization process adds an extra layer of corrosion resistance, making it ideal for both exterior applications and treated wood. Additionally, the inclusion of diamond holes facilitates temporary fastening while certified welds provide peace of mind regarding its structural integrity under uplift loads generated by earthquakes or wind.
Description
The ECC is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 9.67 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Beam Width | 4x |
| Nominal Post Size | 6x |
