4X BEAM, 6X POST SDS RETAIL
$160.75

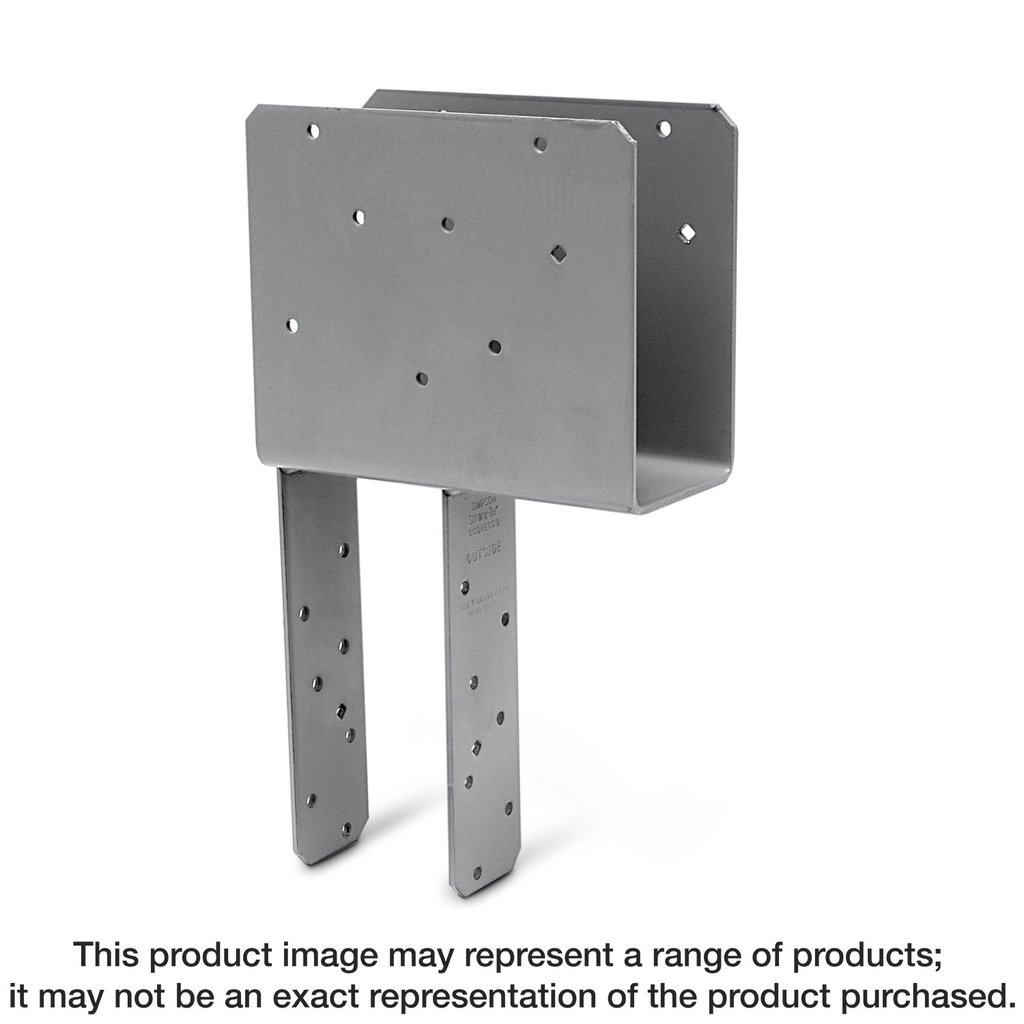

Engineered for exceptional strength and reliability, the ECCQ™ End Column Cap is specifically designed for 4x beams and 6x posts, making it an ideal component for a variety of structural applications. Crafted from robust 7-gauge steel, its certified welds ensure confidence in load-bearing capabilities, which is particularly crucial for projects that need to withstand uplift loads from wind or seismic activities. The inclusion of diamond holes allows for temporary fastening, enhancing construction efficiency while the lower profile of the Strong-Drive® SDS screws offers a sleek alternative to standard through bolts. Finished with a durable gray paint, this end column cap not only provides reliable performance but also complements a variety of architectural styles.
Description
The ECCQ is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The ECCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional information
| Weight | 10.66 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Beam Size | 4 in |
| Post Size | 6 in |
