4X BEAM, 6X POST SDS RETAIL
$134.81

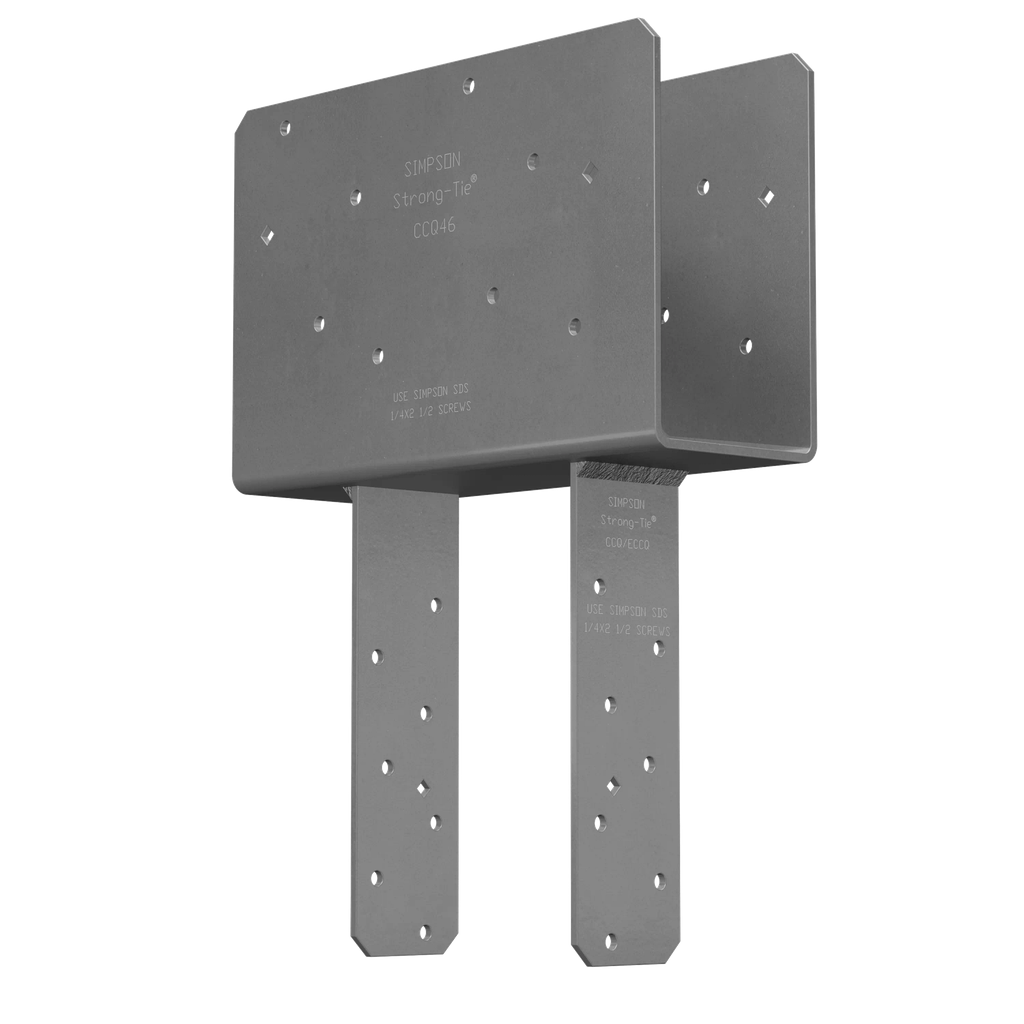

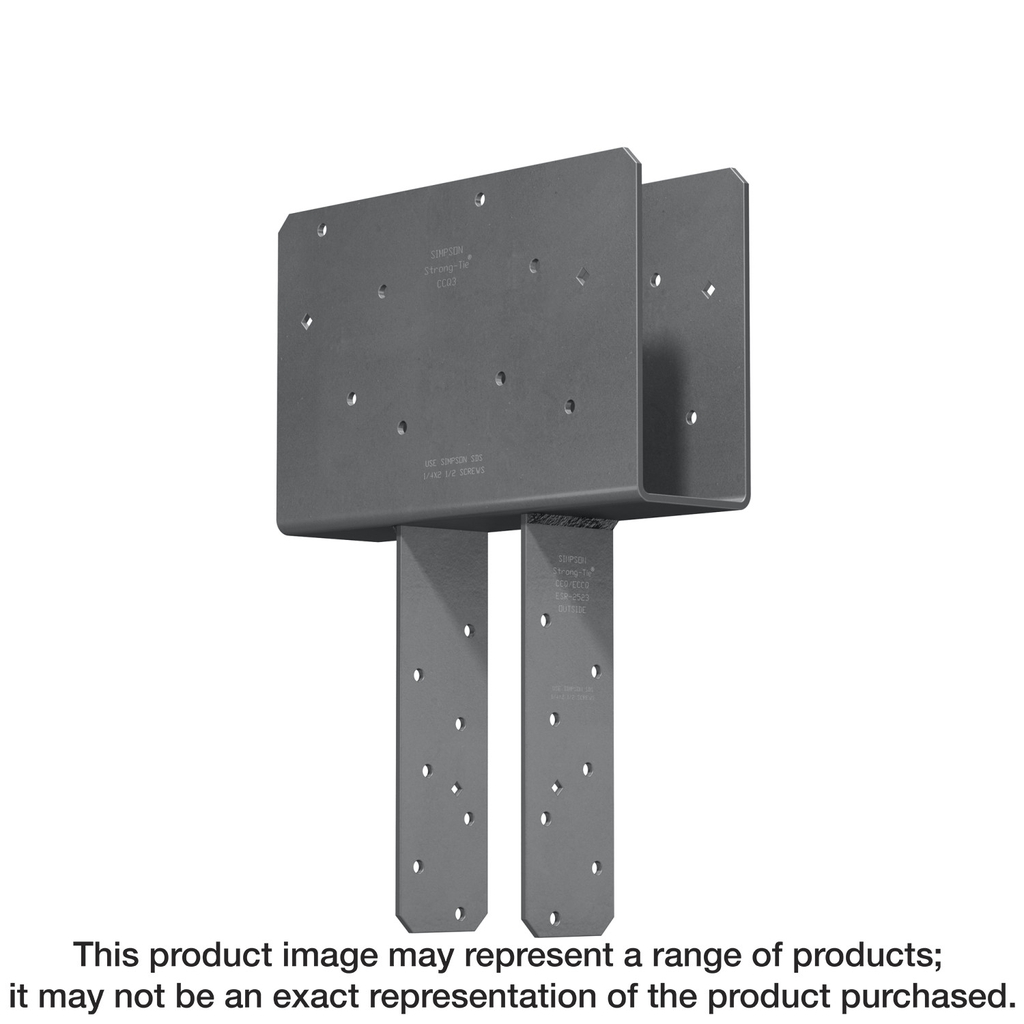

Engineered for robust structural integrity, the CCQ™ Column Cap by Simpson Strong-Tie is specially designed to accommodate a 4x beam and a 6x post while utilizing Strong-Drive® SDS screws that offer a streamlined, low-profile alternative to traditional through bolts. Crafted from durable 7-gauge steel, this column cap features certified welds that enhance its strength and capability to handle increased uplift loads, making it suitable for regions susceptible to earthquake or wind forces. Additionally, the inclusion of diamond holes allows for temporary fastening, providing added versatility during installation. Finished in a protective gray paint, this product not only performs reliably under pressure but also blends seamlessly into a variety of building applications.
Description
The CCQ is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The extended bearing surface helps distribute the load from the beam and provide support for the connection. The CCQ uses Strong-Drive® SDS Heavy-Duty Connector screws for fast installation and to attach to a greater net section area of the column than a bolt attachment normally entails.
Additional information
| Weight | 12.96 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal post size | 6x |
| Nominal beam width | 4x |
