4X BEAM, 8X POST ECC
$122.27

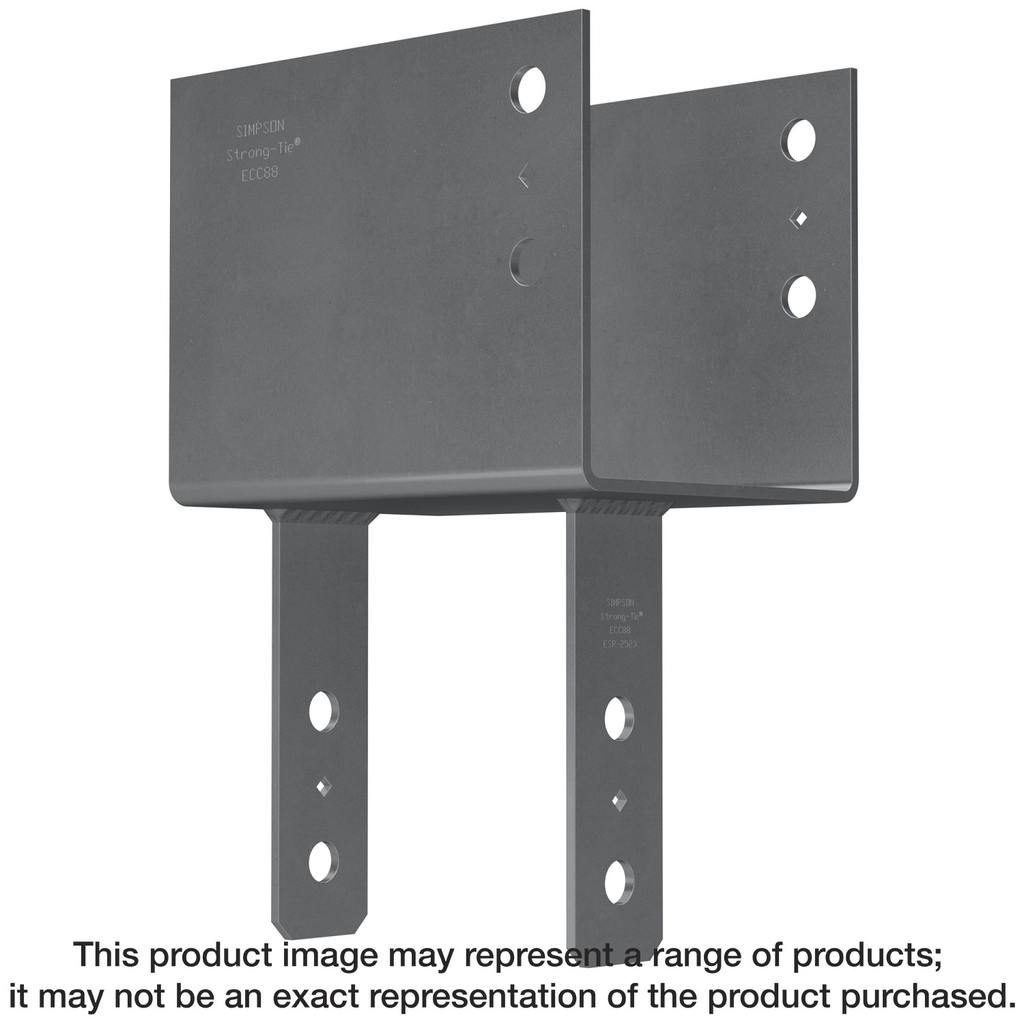

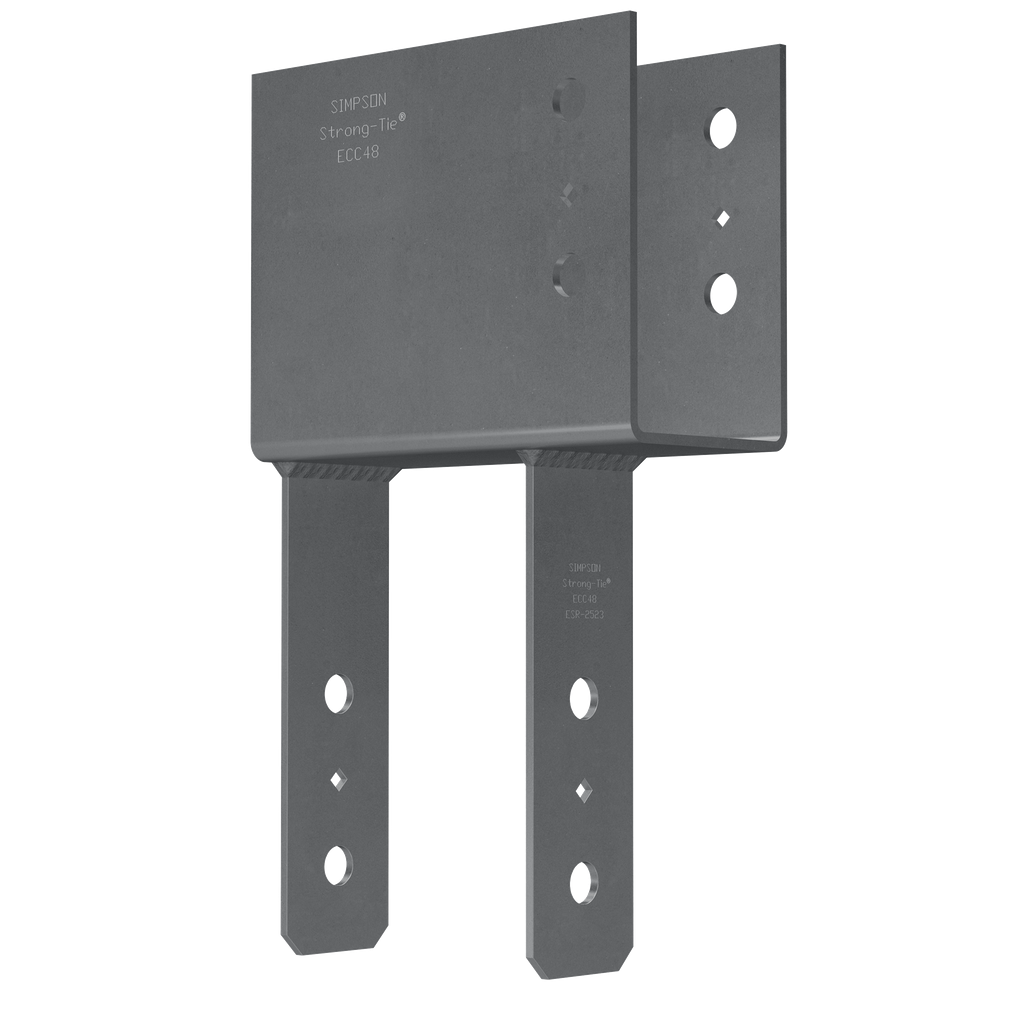

Engineered for robust structural support, the ECC End Column Cap is an essential component for ensuring stability in your construction projects involving 4-inch beams and 8-inch posts. Crafted from 7-gauge steel, it features a durable gray paint finish that not only enhances its aesthetic appeal but also provides added protection against environmental factors. This cap is designed with bolt spacing that complies with NDS code requirements, ensuring optimal performance under various load conditions, including requirements for earthquake and wind uplift. Additionally, the inclusion of diamond holes allows for temporary fastening, while certified welds deliver the confidence needed for handling substantial strength and loading capacities.
Description
The ECC is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 9.67 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3.967 in |
| Size | 8 in x 4 in |
