4x BEAM, H1=4 CAP ONLY
$51.42

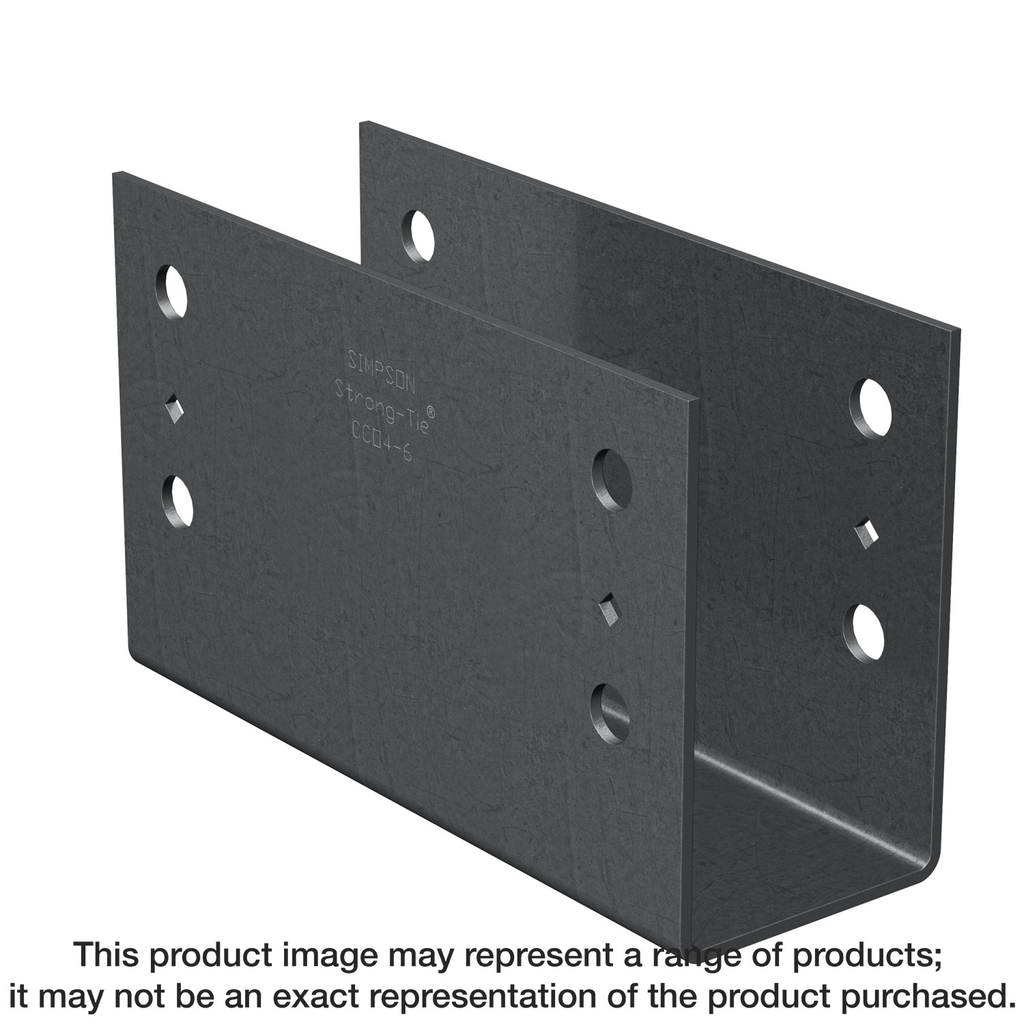

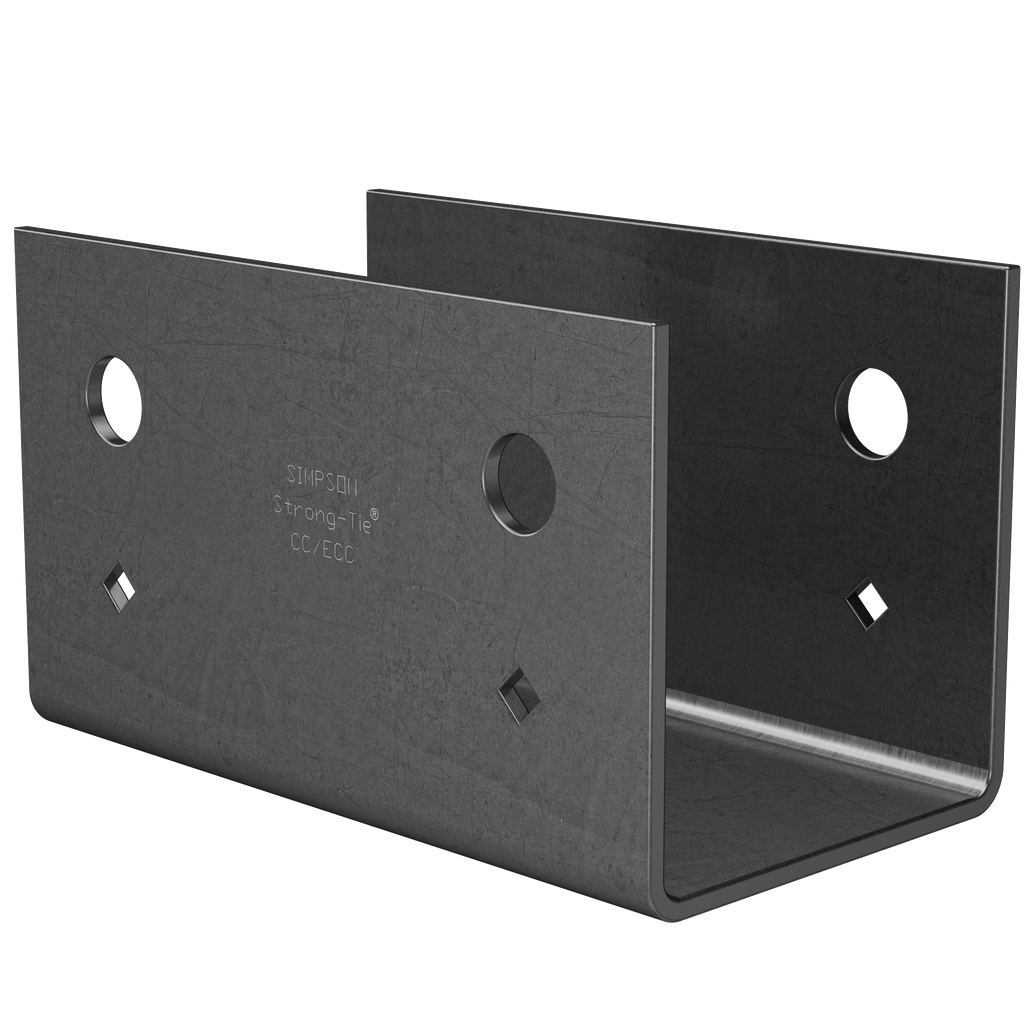

Engineered with durability and structural integrity in mind, this column cap from Simpson Strong-Tie offers robust support for 4x beams, standing at a height of 4 inches. Crafted from 7-gauge uncoated steel, it meets the necessary National Design Specification (NDS) code requirements, ensuring reliable performance under various conditions, including increased uplift loads from wind or earthquakes. The design features diamond holes that facilitate temporary fastening, making installation both efficient and secure. With its practical bolt spacing and strong construction, this column cap is an essential component for any construction project that demands structural reliability.
Description
The CCO is designed to provide strong column-beam connections using steel columns. The column cap features a design without legs enabling a field-welded attachment to steel columns and posts. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column helping to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 4.1 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3.967 in |
| Height | 4 in |
