4X10 HVY HANGER W/SDS 1/4X2-1/2
$47.34

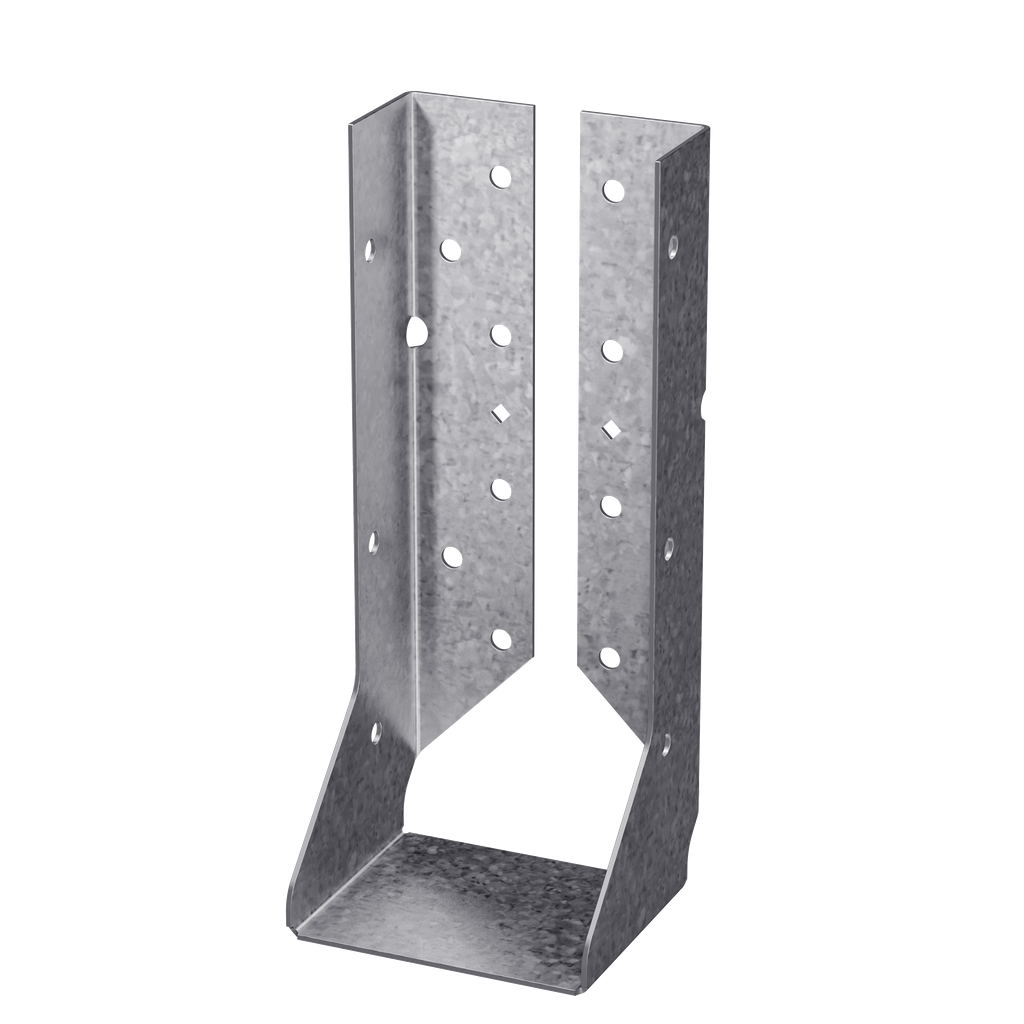

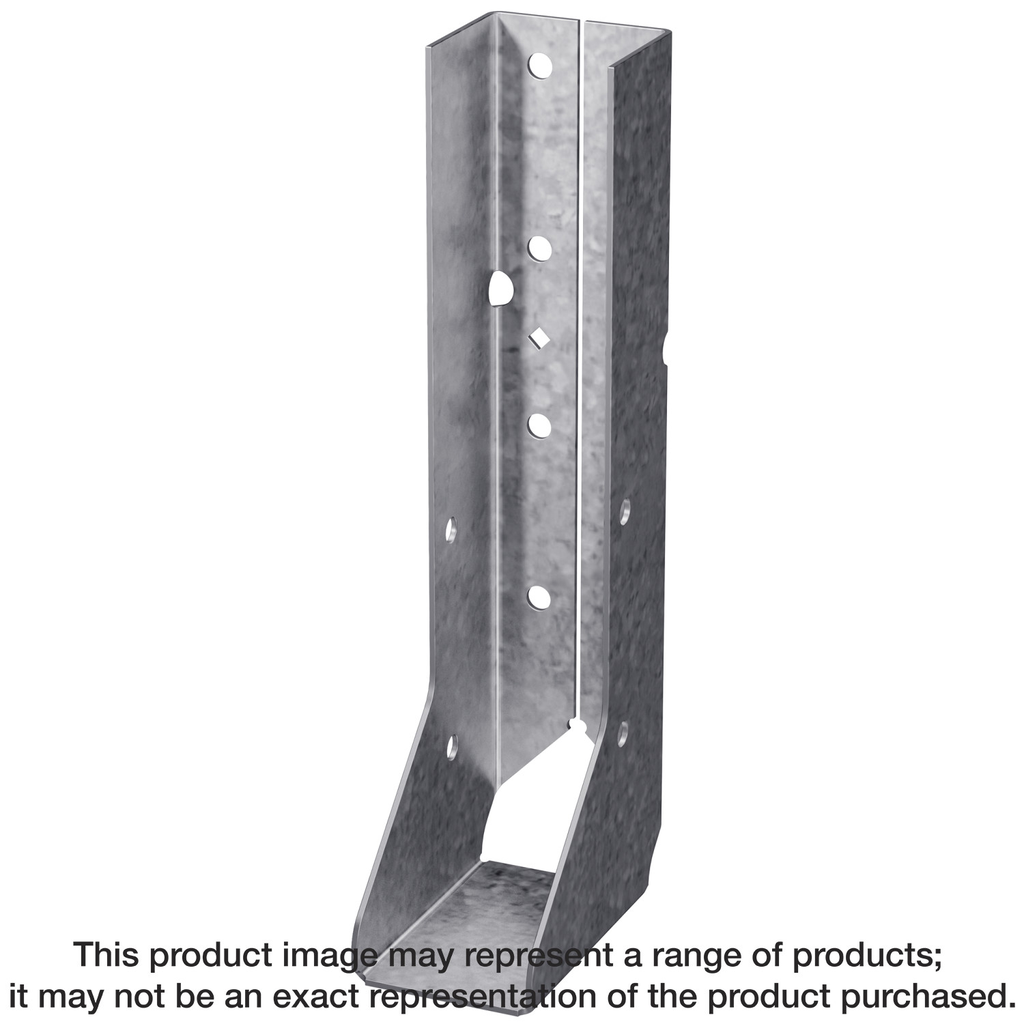

Crafted for both strength and aesthetic appeal, this heavy face-mount concealed-flange joist hanger is designed to support 4×10 wood joists, making it ideal for a variety of building projects. Made from durable 14-gauge steel and finished with a G90 galvanized coating, it provides exceptional corrosion resistance, ensuring reliability in diverse environments. The concealed flanges offer a streamlined look, perfect for exposed structural applications, while the included Strong-Drive SDS heavy-duty connector screws facilitate easy and secure installation. Meeting rigorous load requirements, the HUCQ-series hangers are not only tested for performance but also code compliant, making them a trustworthy choice for connecting wood joists to wood, masonry, or concrete.
Description
The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation.
Additional information
| Weight | 1.77 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Seat Width | 3-9/16 in. |
| Nominal Joist Size | 4×10 in. |
