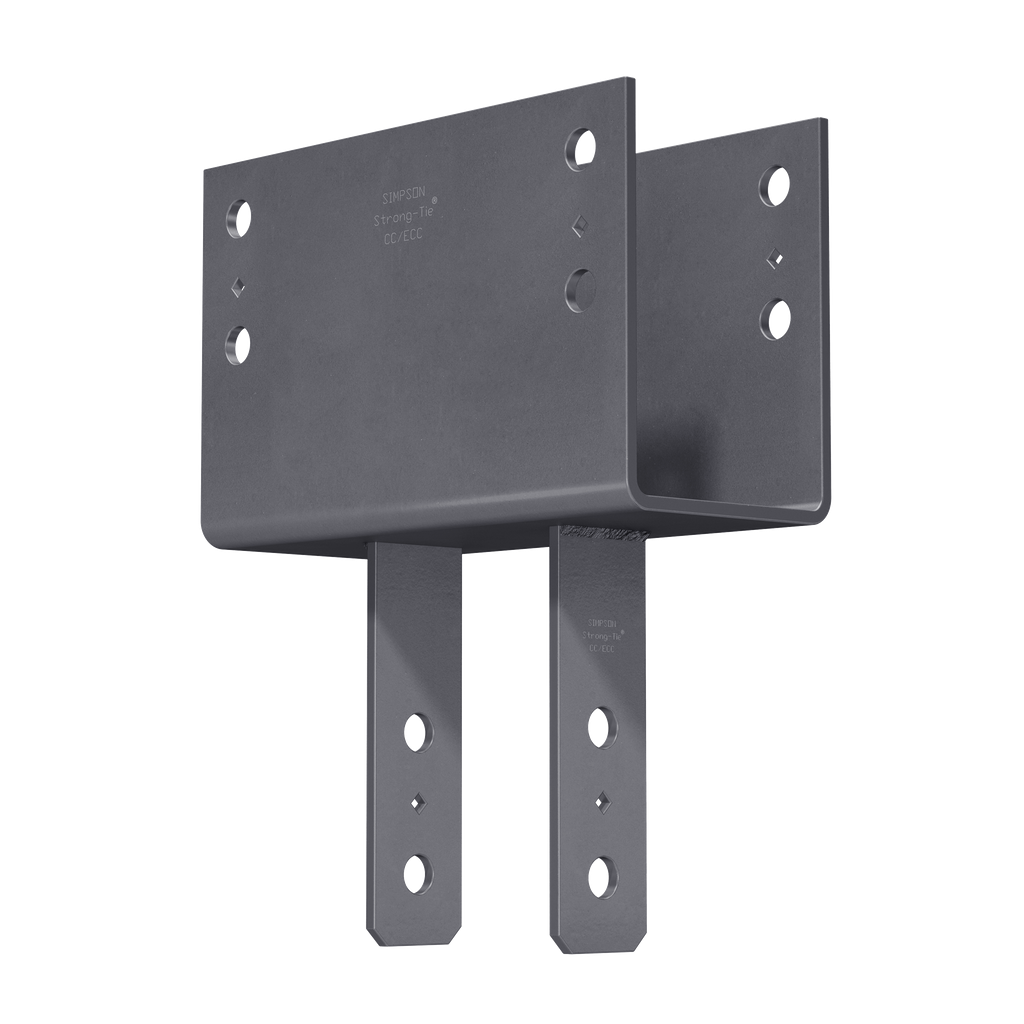

5-1/8″ BEAM, 6X POST COLUMN CAP
$154.37
Engineered for robust structural support, the CC Column Cap is an essential component for applications requiring a dependable connection between beams and posts. Crafted from durable 3-gauge steel, it features diamond holes that facilitate temporary fastening during installation while ensuring compliance with NDS code requirements through optimized bolt spacing. Designed with a Simpson Strong-Tie gray paint finish, this cap not only offers visual appeal but also resilience against the elements. Its certified welds provide added assurance of strength, making it an ideal choice for structures that must withstand uplift loads, such as those caused by earthquakes or severe winds, thereby enhancing the overall integrity of your construction project.
Description
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 20.65 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 5.708 in |
| Beam Width | 5-1/8 in. |
