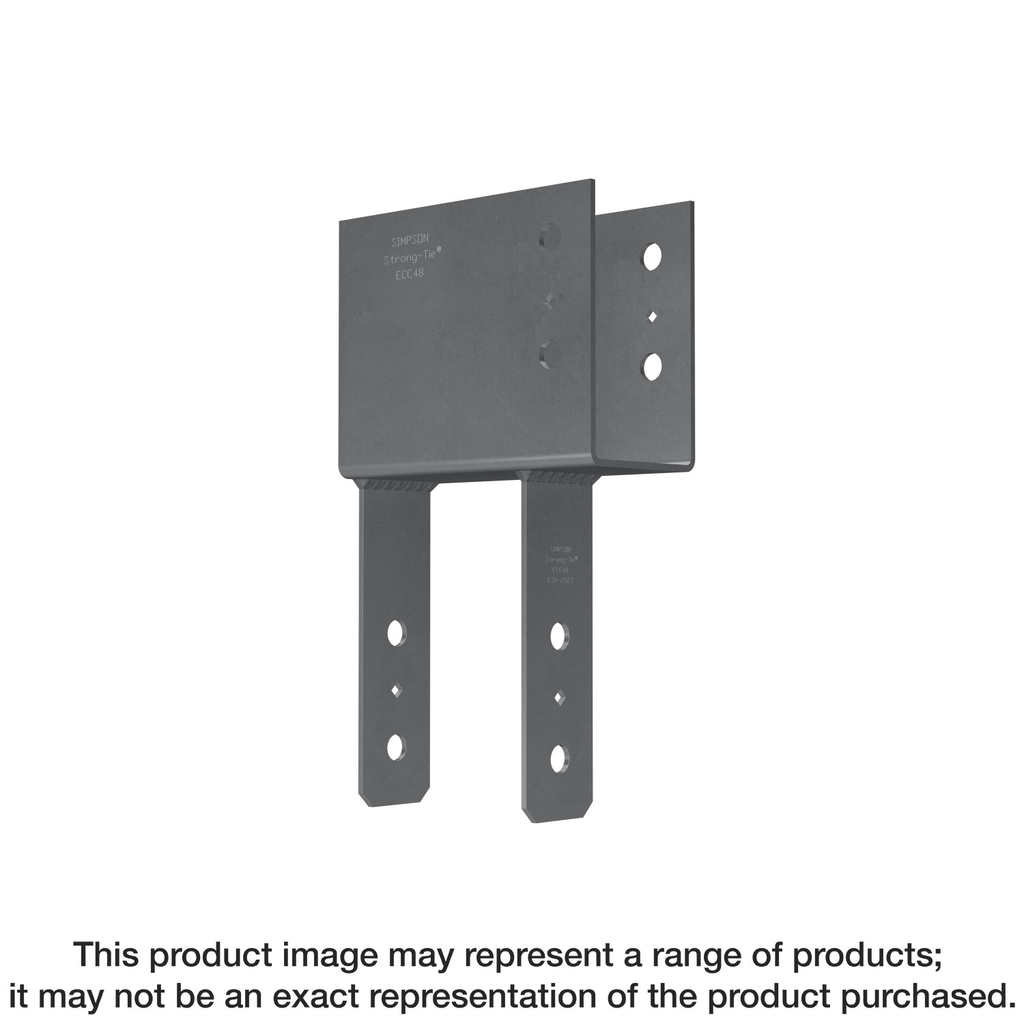

5-1/8″ BEAM, 6X POST ECC
$154.37
Engineered for robust structural performance, this end column cap accommodates a 5-1/8 inch beam and supports a nominal post size of 6x. Crafted from durable 3-gauge steel, it features certified welds that ensure reliability and strength, providing confidence in its capacity to withstand significant uplift loads from earthquake or wind pressures. The design incorporates carefully placed diamond holes for temporary fastening and bolt spacing that adheres to NDS code requirements, optimizing the connection for safety and effectiveness. Finished with a sleek Simpson Strong-Tie gray paint, this cap is not only functional but also complements various structural aesthetics seamlessly.
Description
The ECC is designed to provide strong column-beam connections in end-of-beam applications in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond the one side of the column. The ECC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 15.85 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Beam width | 5-1/8 in. |
| Depth | 5.708 in |
