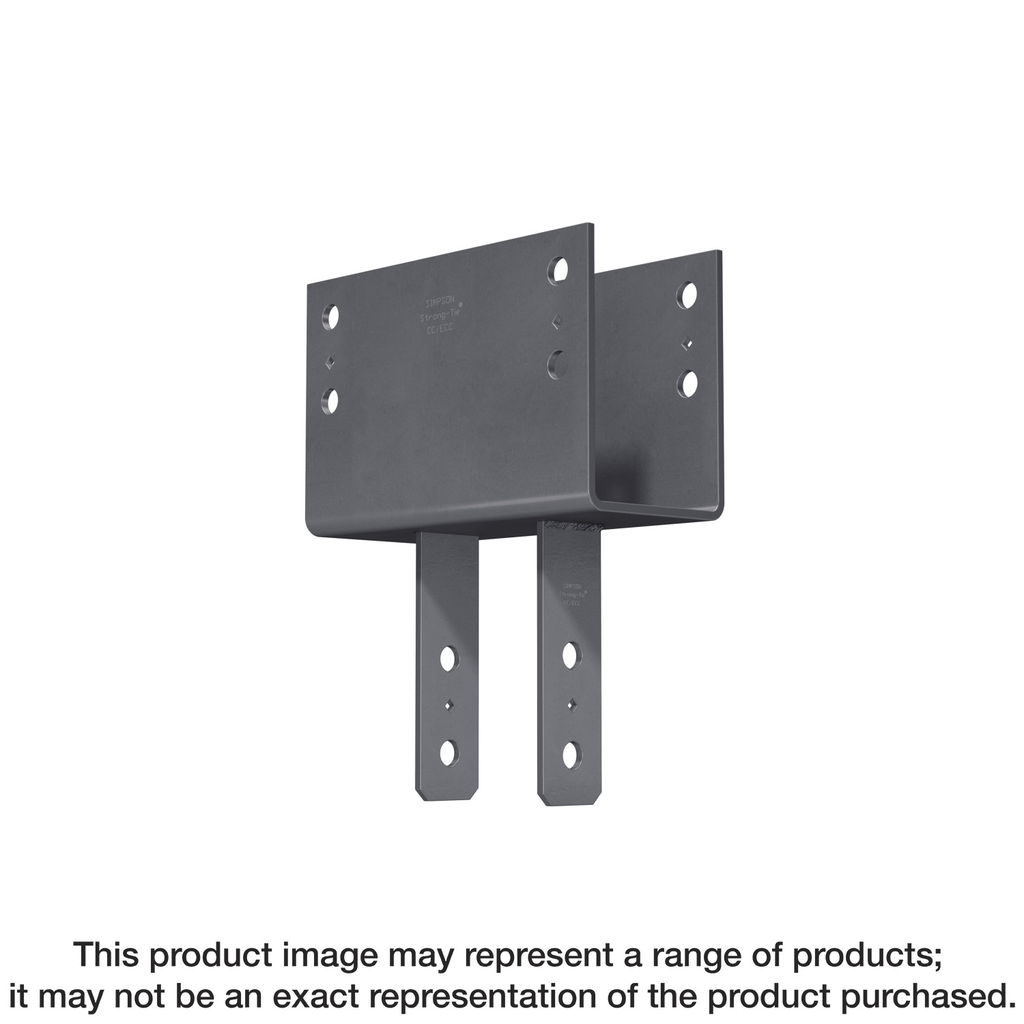

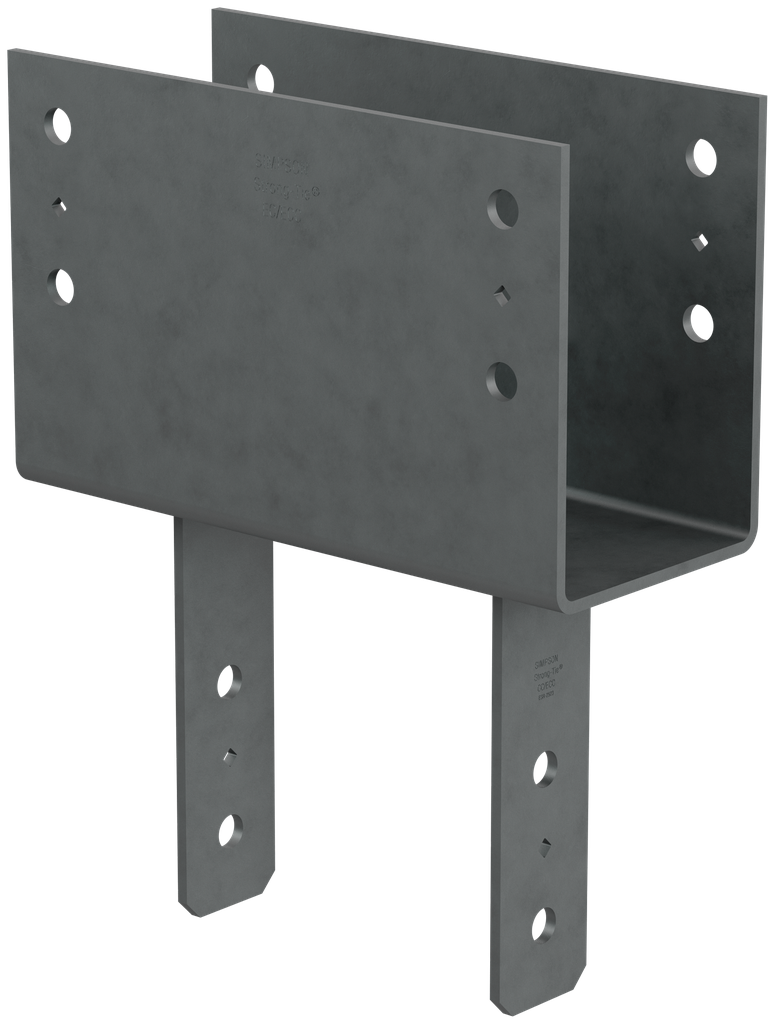

5-1/8″ BEAM, 8X POST COLUMN CAP
$154.37
Engineered for structural integrity and enhanced performance, this column cap is a vital component for your construction needs. Crafted from robust 3-gauge steel, it features a durable gray paint finish that not only looks professional but also contributes to its longevity. The design adheres to NDS code requirements with appropriately spaced bolt holes, ensuring optimal load-bearing capacity and compliance with safety standards.
Description
The CC is designed to provide strong column-beam connections in wood construction. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column. The CC helps to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 20.65 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Manufacturer | Simpson Strong-Tie |
| Nominal post size | 8x |
| Depth | 5.708 in |
