5-1/8″ BEAM CAP ONLY
$130.13

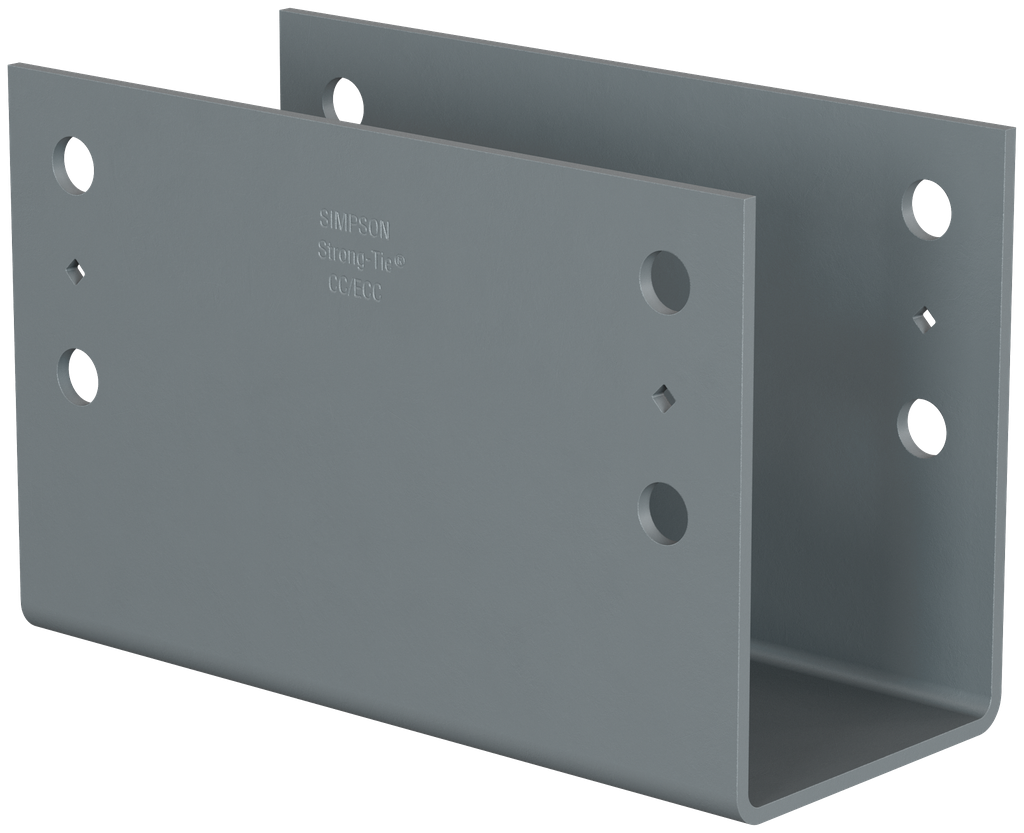

Engineered with precision and durability, the Simpson Strong-Tie CCO5 1/4 CCO Column Cap is crafted from 3-gauge uncoated steel to ensure robust support for 5-1/8 inch beams. Standing at a height of 8 inches, this column cap features diamond holes designed for temporary fastening, allowing for efficient installation while meeting NDS code requirements for optimal bolt spacing. Additionally, its enhanced uplift load capability makes it an ideal choice for structures subject to earthquake or wind loading, ensuring safety and reliability in various applications.
Description
The CCO is designed to provide strong column-beam connections using steel columns. The column cap features a design without legs enabling a field-welded attachment to steel columns and posts. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column helping to distribute the load from the beam and provide support for the connection.
Additional information
| Weight | 18.7 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Beam Width | 5-1/8 in. |
| Depth | 5.708 in |
