5.50″ MASONRY CC T-SHAPE SDS HDG
$515.59

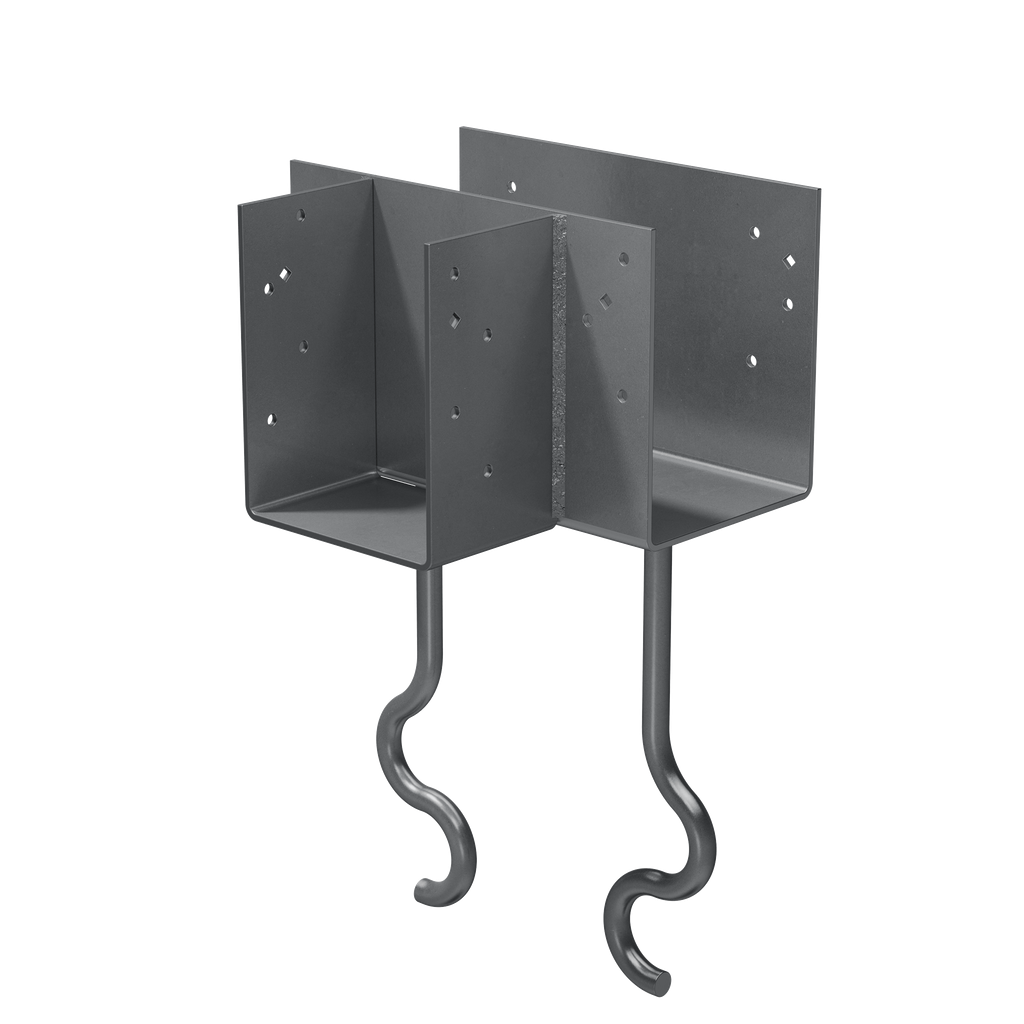

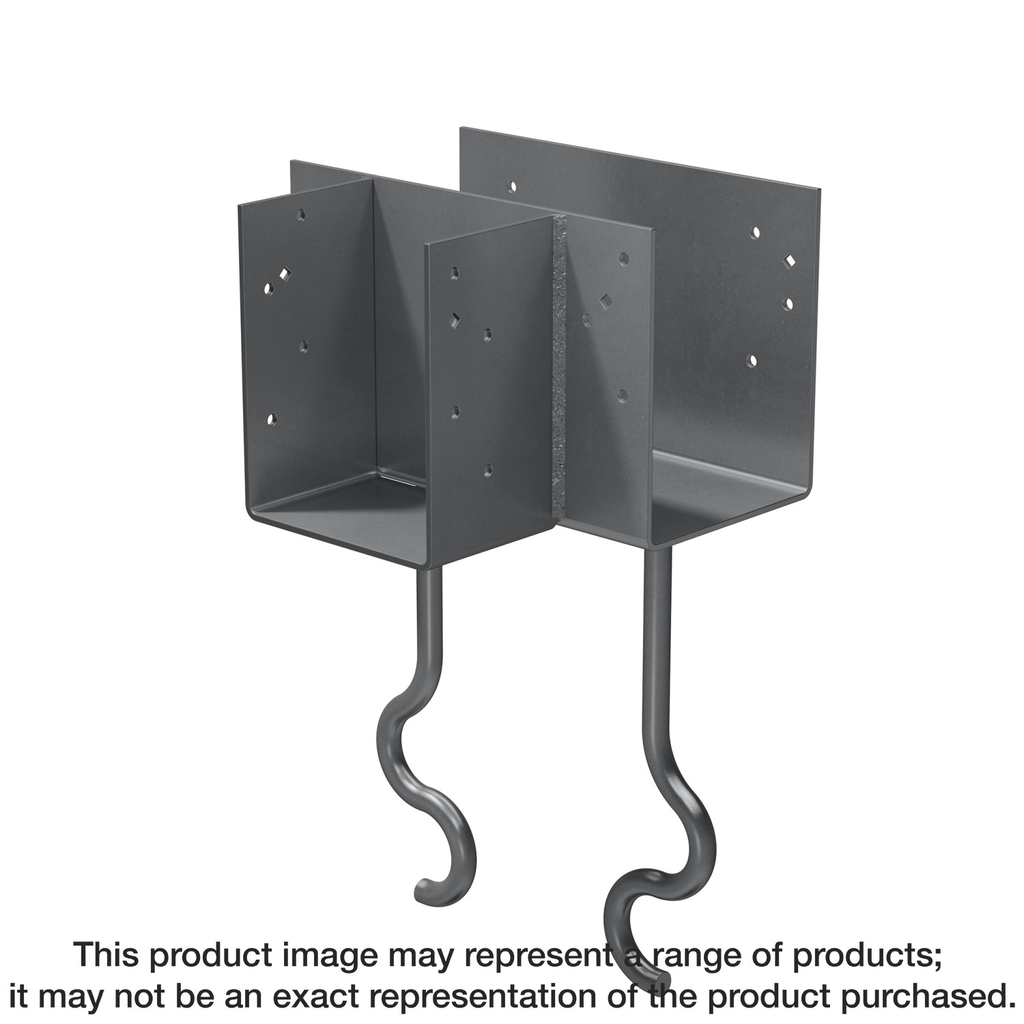

Engineered for strength and durability, the 5-1/2 inch T-Shape Column Cap by Simpson Strong-Tie is a critical component for masonry construction projects. Its robust 7-gauge steel construction, complemented by hot-dip galvanization, ensures exceptional corrosion resistance, making it suitable for both exterior applications and treated wood installations. Installation is streamlined with included Strong-Drive SDS Heavy-Duty Connector screws, which require no pre-drilling and feature a double-barrier coating for enhanced performance. Designed with an SSTB offset that allows for flush installation to the edge of piers, this column cap is tailored to meet the needs of architects and builders striving for both efficiency and reliability in their structures.
Description
The CCTQM® embedded column cap is designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The CCTQM is for use along a floor support beam and non-corner locations with a side stirrup to accommodate intermediate support beams at 90° angles.
Additional information
| Weight | 19.2 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 5.849 in |
| Main Channel Length | 13-1/2 in |
