5/8 DIA 19-5/8IN ANCH BOLT 5-1/2 THREADS
$10.34

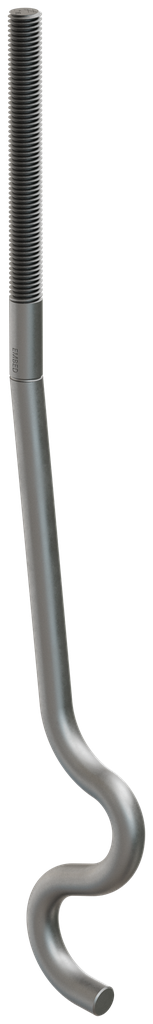

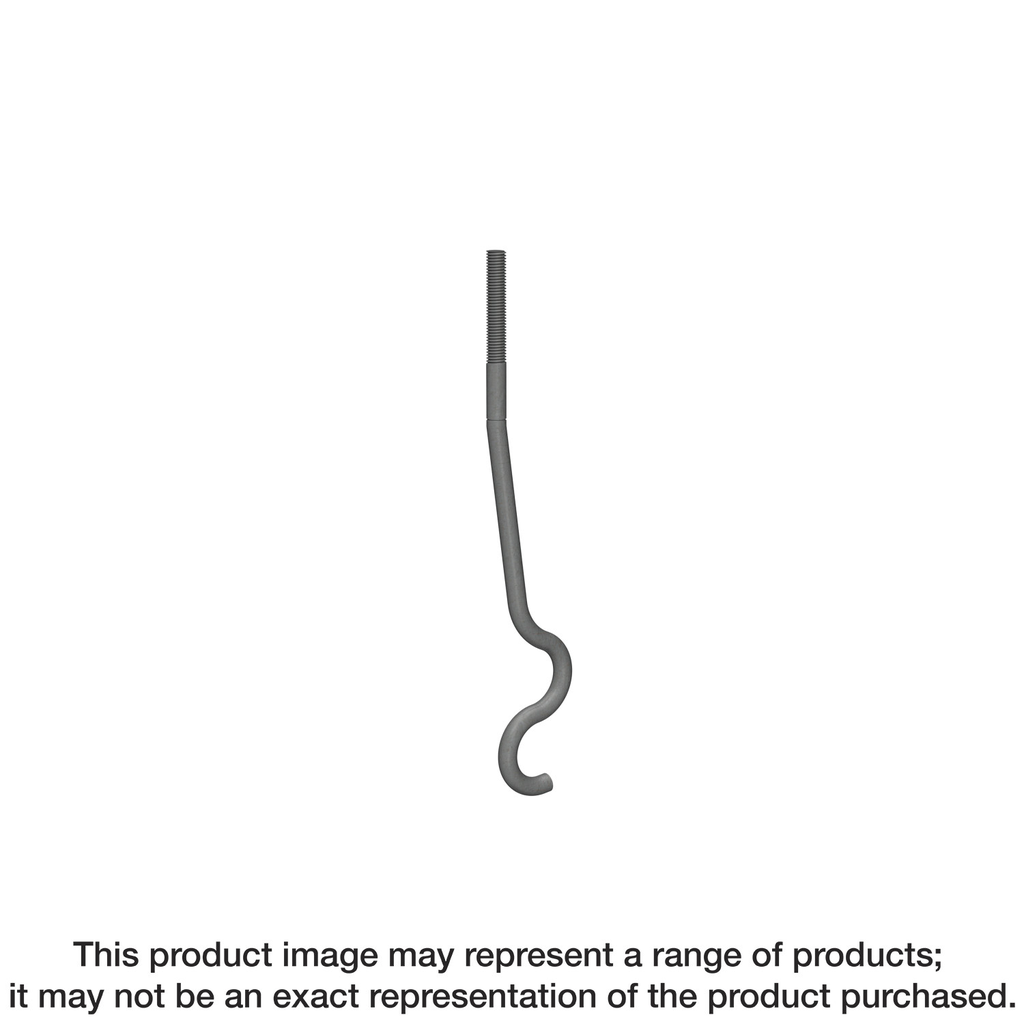

The SSTB16L anchor bolt from Simpson Strong-Tie is designed to meet the needs of both monolithic and two-pour concrete applications, making it a versatile choice for a variety of construction projects. With its rolled thread construction, this bolt boasts a higher tensile capacity, ensuring a reliable hold in demanding environments. The offset angle helps to minimize side bursting while providing additional concrete coverage, enhancing overall structural integrity. For ease of installation, the stamped embedment line offers clear guidance, and the identification on the bolt head indicates the embedment angle and model, ensuring precise alignment during application. This anchor bolt combines durability and functionality, making it an essential component for any concrete fastening requirement.
Description
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.
Additional information
| Weight | 1.48 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Size | 5/8 in x 5-1/2 in |
| Material | ASTM F-1554, Grade 36 |
