5/8 X 12IN ATR W/1-3/4×1-3/4×1/2IN WASH
$27.55
Engineered for strength and reliability, this preassembled anchor bolt features a robust 5/8-inch diameter and extends to a length of 12 inches, making it an essential component for various construction applications. Crafted from high-quality steel that adheres to ASTM F1554 Grade 36 or A307 standards, it ensures superior performance with a yield strength of 58 ksi, providing the stability needed in demanding environments. The head stamp proudly displays the Simpson Strong-Tie “No Equal” sign along with the diameter designation, reinforcing its trusted reputation in the industry. Available in multiple diameters and lengths, this anchor bolt accommodates a range of project needs while delivering dependable anchoring solutions.
Description

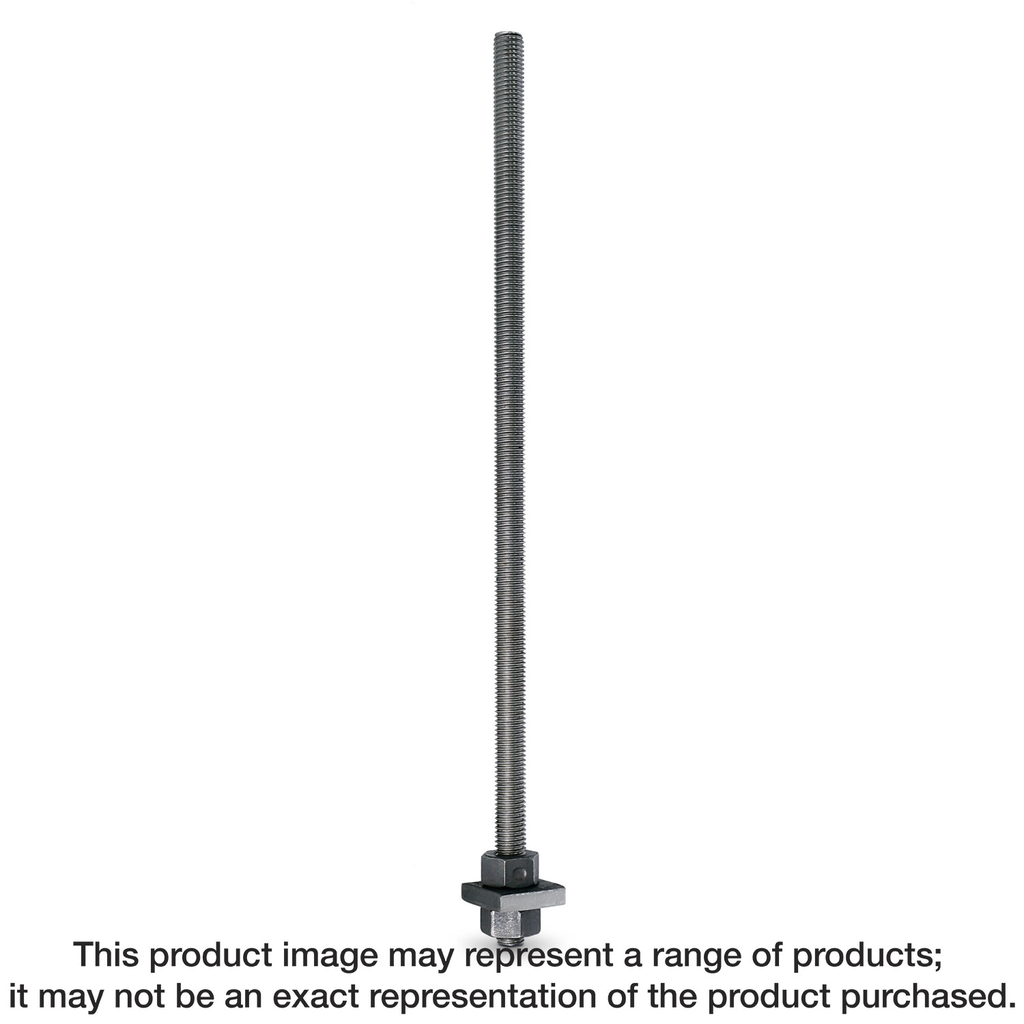

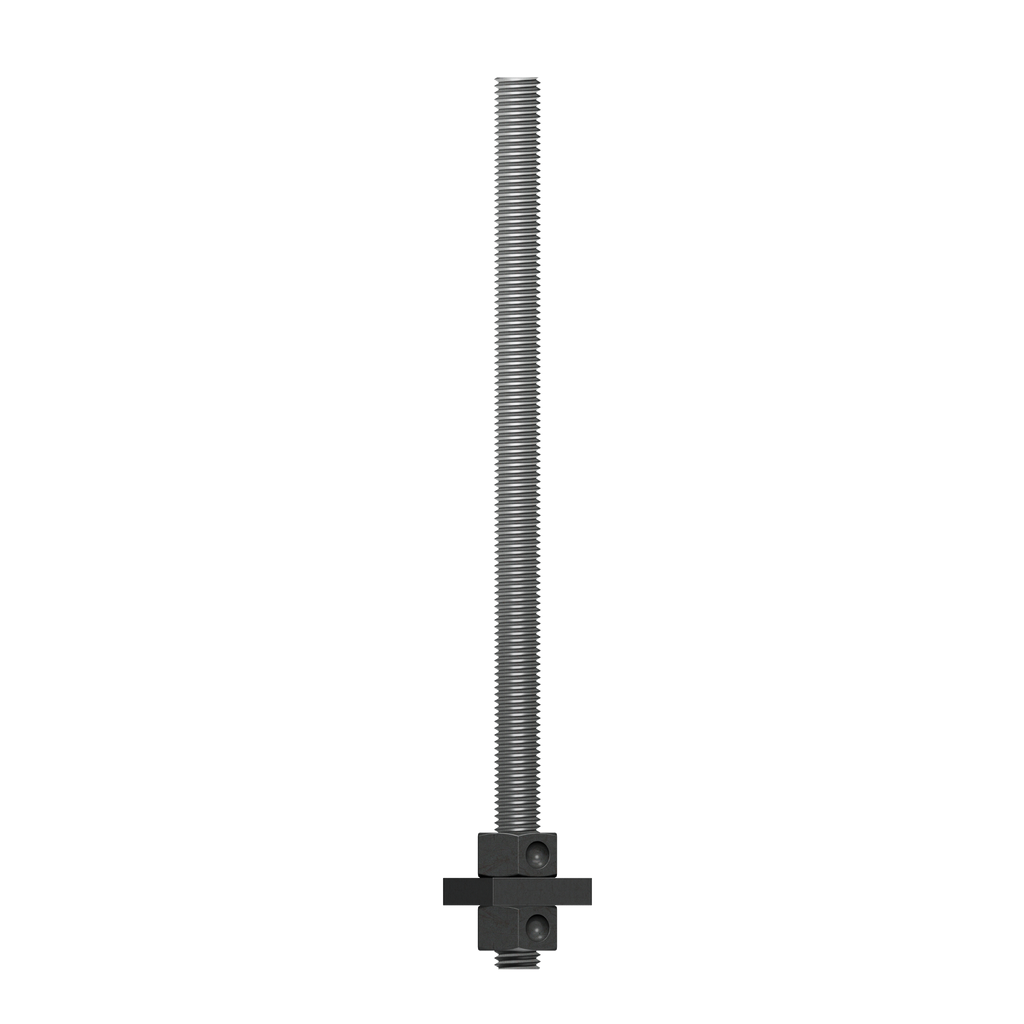

The Simpson Strong-Tie® PAB™ anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.
Additional information
| Weight | 1.32 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Diameter | 5/8 in. |
| Length | 12 in |
