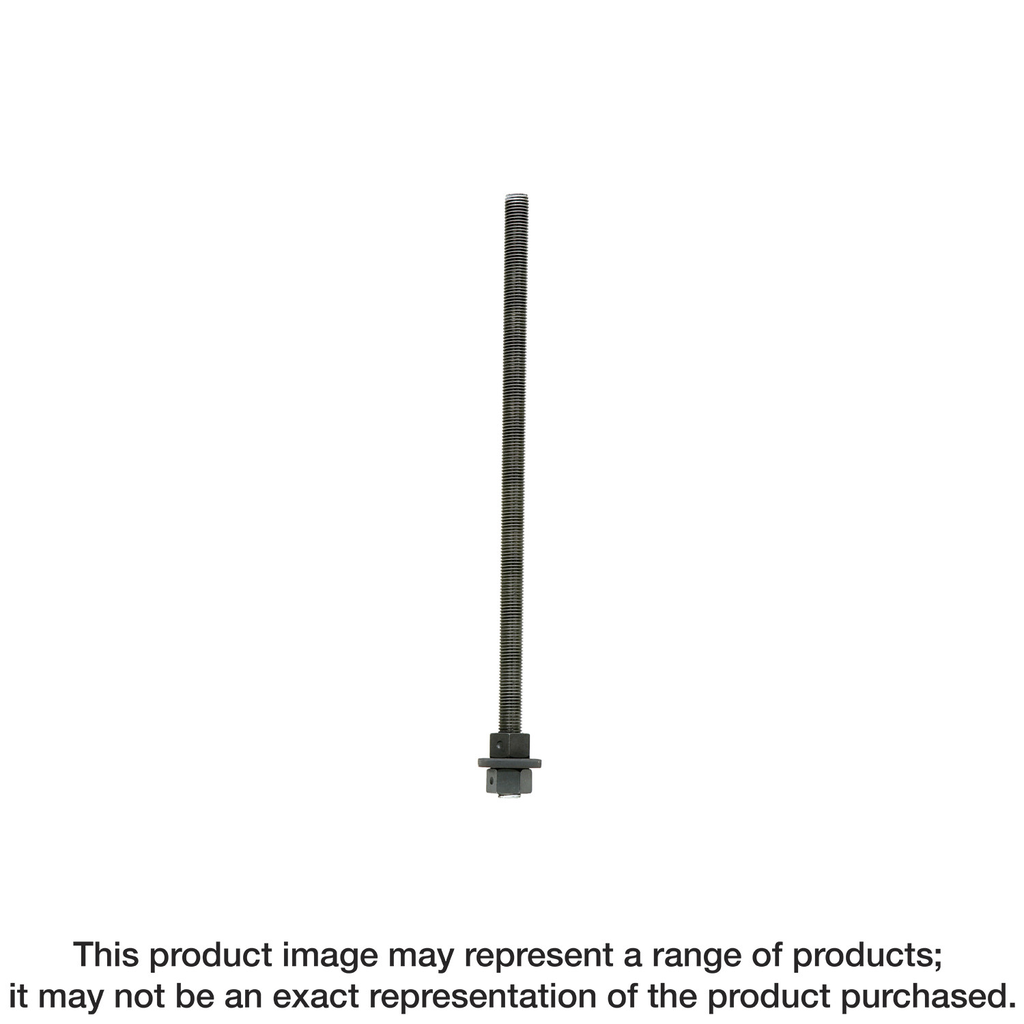

5/8 X 24IN ATR W/1-3/4×1-3/4×1/2IN WASH
$30.80
Engineered for strength and reliability, this preassembled anchor bolt measures 5/8 inch in diameter and 24 inches in length, offering dependable support for a variety of construction applications. Crafted from high-quality steel conforming to ASTM F1554 Grade 36 standards, it ensures impressive load-bearing capabilities, highlighted by a head stamp that features the Simpson Strong-Tie “No Equal” sign for easy identification. With lengths available in increments of 6 inches and diameters ranging from 1/2 inch to 1-1/4 inches, this anchor bolt can be tailored to meet diverse installation needs, making it an essential component for structural stability in your projects.
Description
The Simpson Strong-Tie® PAB™ anchor bolt is a versatile cast-in-place anchor bolt ideal for high-tension-load applications, such as rod systems and shearwalls. It features a plate washer at the embedded end, sandwiched between two fixed hex nuts. The PAB also has a head stamp for easy identification after the pour.
Additional information
| Weight | 2.16 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Length | 24 in |
| Diameter | 5/8 in |
