5/8 X 5 INCH STRONG-BOLT2 1 POLY
$4.60

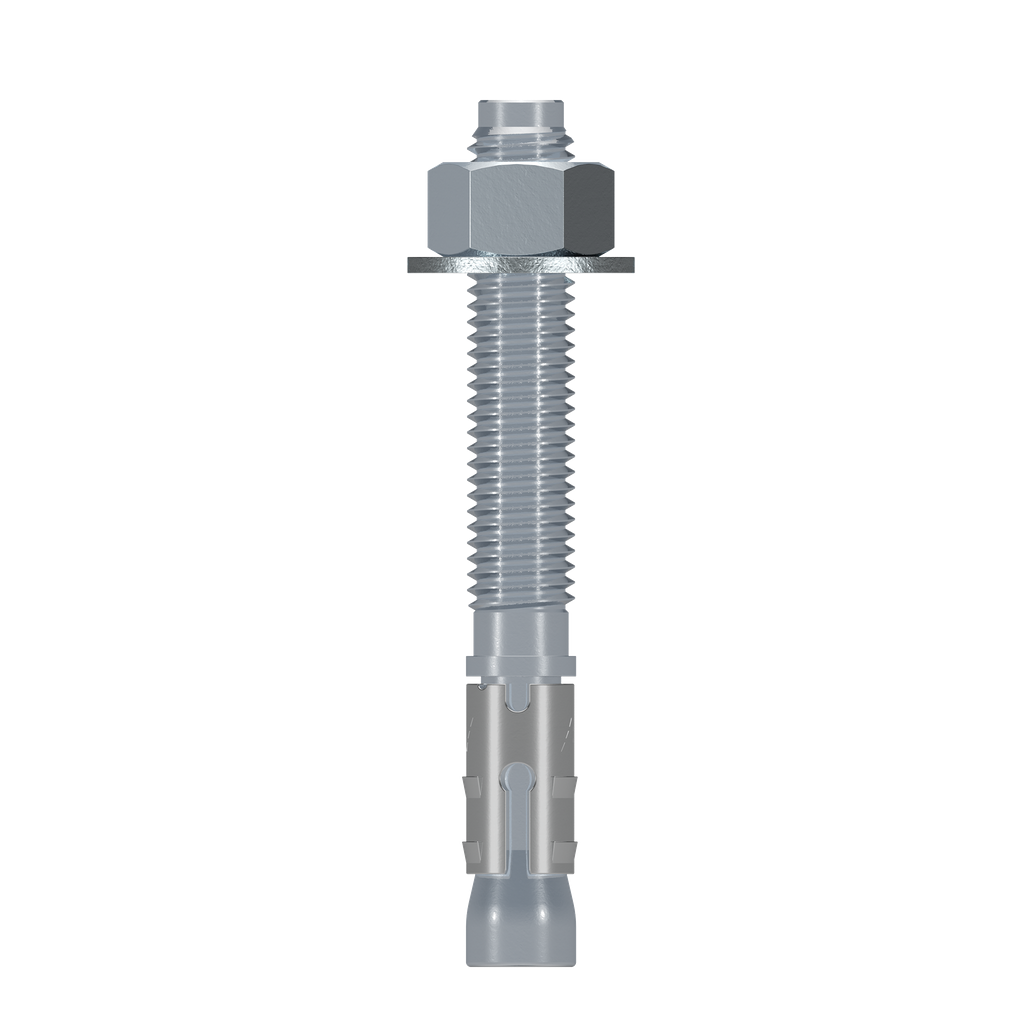

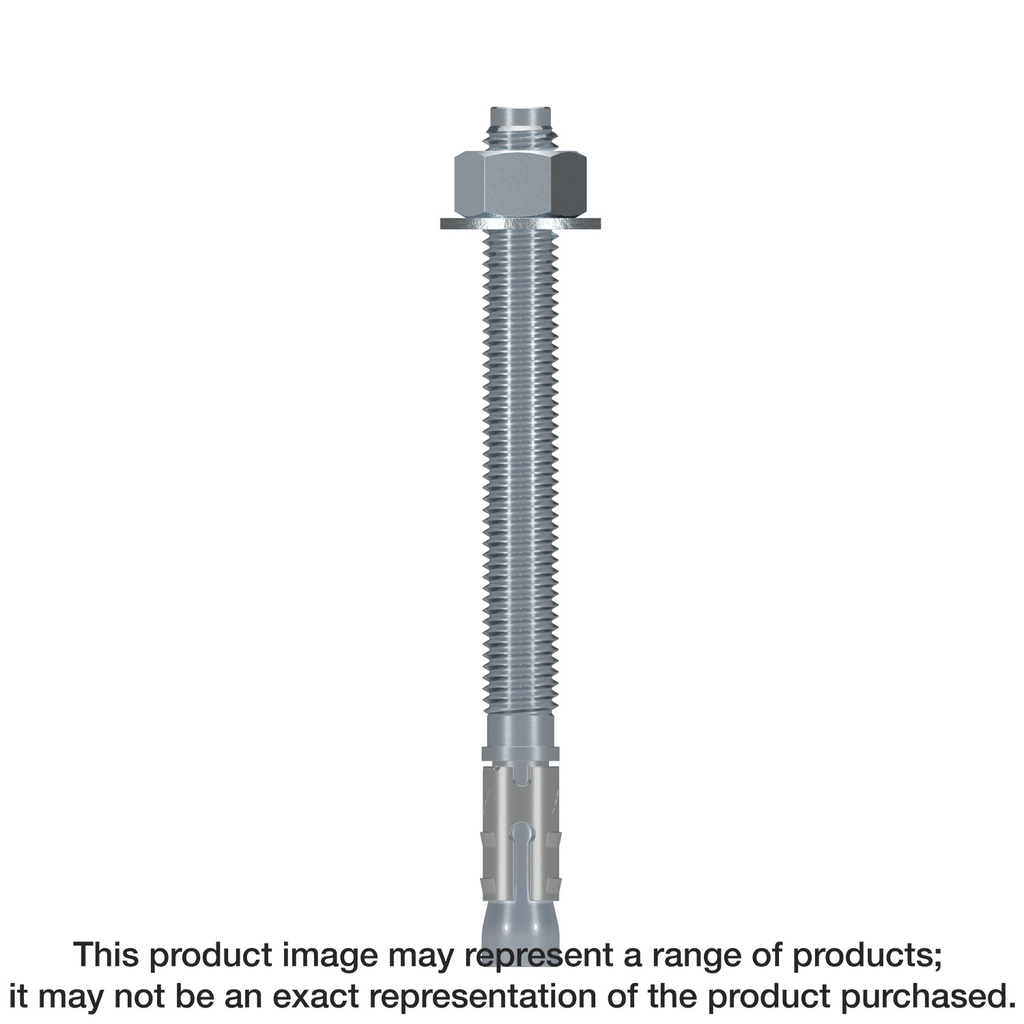

The Simpson Strong-Tie STB2-62500P1 Strong-Bolt® 2 is expertly engineered to meet the demands of various construction projects, qualifying for both static and seismic loading conditions across seismic design categories A through F. This wedge anchor features a chamfered top that minimizes mushrooming during installation, ensuring a smooth and efficient process. Crafted from zinc-plated carbon steel, it is suitable for use in horizontal, vertical, and overhead applications, making it a versatile choice for diverse structural needs. Tested per stringent ACI355.2 and AC193 standards, this product guarantees reliable performance in critical situations, providing peace of mind for builders and engineers alike.
Description
Code listed for cracked and uncracked concrete, and masonry applications, the Simpson Strong-Tie® Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands. The Strong-Bolt 2 is available in zinc-plated carbon steel, mechanically galvanized carbon steel, and Type 304 and Type 316 stainless steel.
Additional information
| Weight | 0.475 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Size | 5/8 in. x 5 in. |
| Depth | 1.312 in |
