5/8 X 6 INCH TITENHD FLAG
$4.95

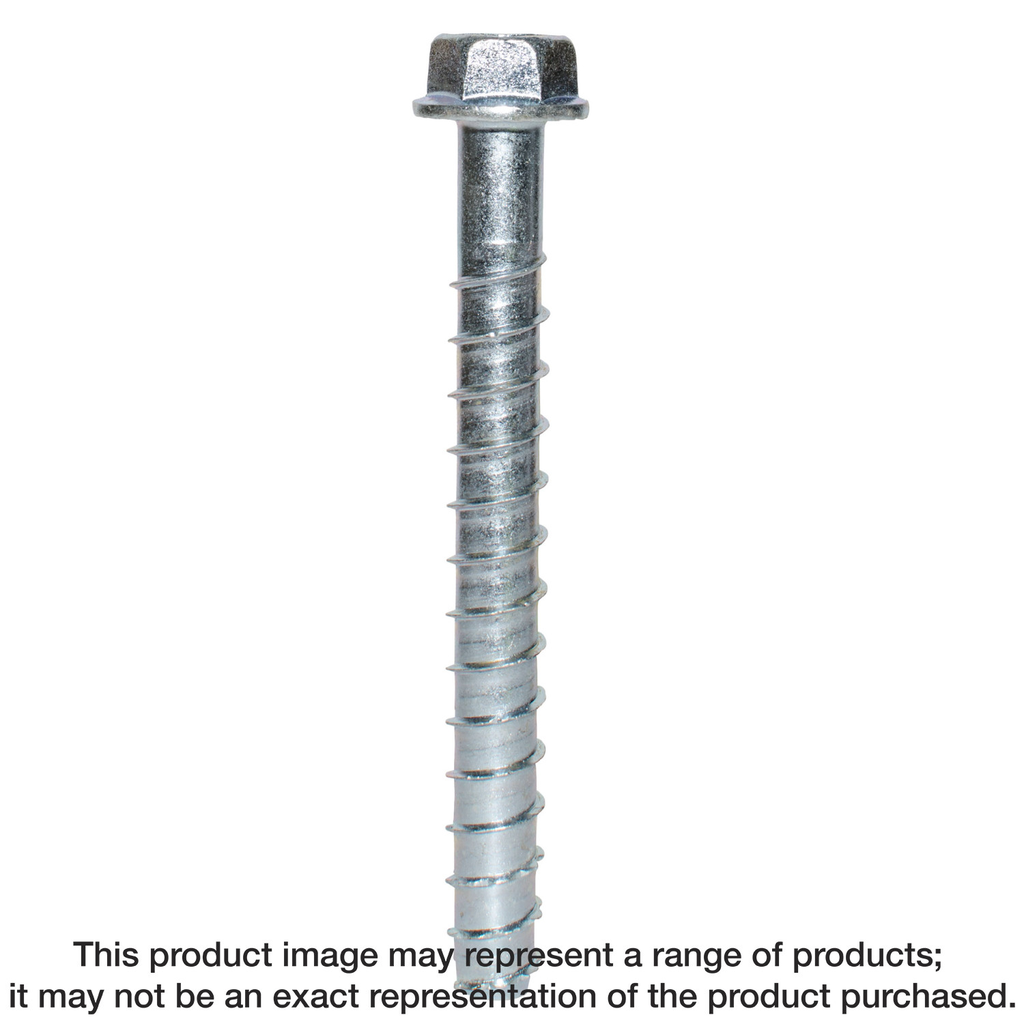

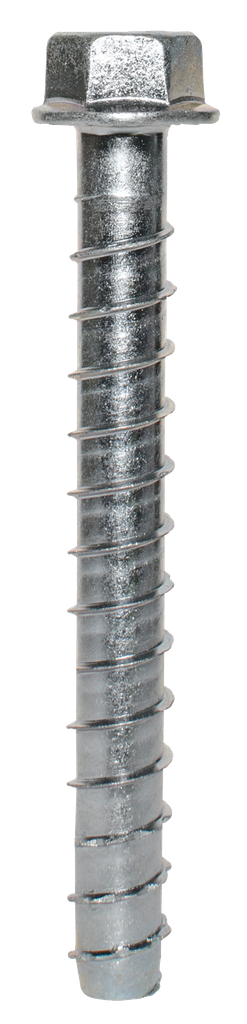

The Titen HD® Heavy-Duty Screw Anchor from Simpson Strong-Tie is crafted from carbon steel and features a specialized heat-treating process for enhanced tip hardness, ensuring superior cutting performance without sacrificing ductility. This 5/8 in. x 6 in. anchor comes with a hex-washer head that installs cleanly without the need for a separate washer, creating a streamlined appearance. Suitable for temporary exterior applications, the zinc-plated anchor is qualified for both static and seismic loading conditions, making it a reliable choice for demanding projects. Its unique thread design undercuts to efficiently transfer loads to the base material while allowing for installation with standard-sized ANSI tolerance drill bits, ensuring ease of use. However, it’s important to note that the anchor is intended for single use only to prevent excessive thread wear that could compromise load capacity.
Description
The Titen HD anchor is a high-strength screw anchor for concrete and masonry. It is designed for optimum performance in both cracked and uncracked concrete. The high-strength, easy-to-install Titen HD anchor has been tested and shown to provide outstanding performance in cracked and uncracked concrete under both static and seismic loading conditions. The self-undercutting, non-expansion characteristics of the Titen HD anchor make it ideal for structural applications, even at reduced edge distances and spacings. Recommended for permanent dry, interior non-corrosive environments or temporary outdoor applications.
Additional information
| Weight | 0.669 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Size | 5/8 in. x 6 in. |
| Depth | 1.31 in |
