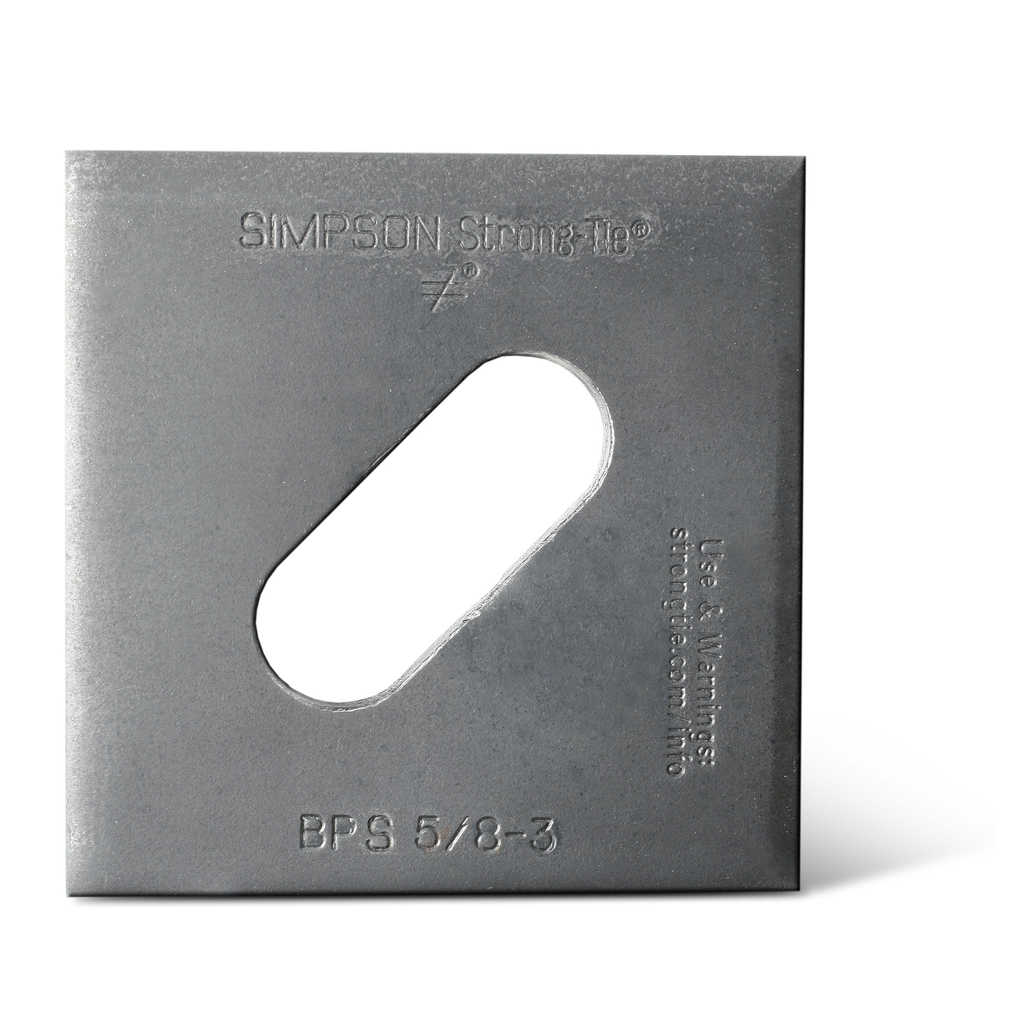

5/8IN BOLT DIA 3 X 3 BEARING PLT SLOTTED
$2.37
Engineered for optimal performance and reliability, this slotted bearing plate provides the essential adjustability needed when working with bolts that may not align perfectly with the center of the sill plate. Constructed from durable 3-gauge uncoated steel, it meets current code requirements for both 2×4 and 2×6 wall applications, ensuring compliance without sacrificing flexibility. With its dimensions measuring 3 inches by 3 inches and a bolt diameter of 5/8 inch, this bearing plate is designed to deliver robust support in a variety of construction scenarios, making it a critical component for secure and effective framing.
Description
Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at these critical connections. Bearing plates are typically used on foundation anchor bolts in place of cut washers.
Additional information
| Weight | 0.526 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 3 in. |
| Size | 3 in. x 3 in. |
