5/8IN BOLT DIA 3X3 BEARING PLT SLOT HDG
$3.69

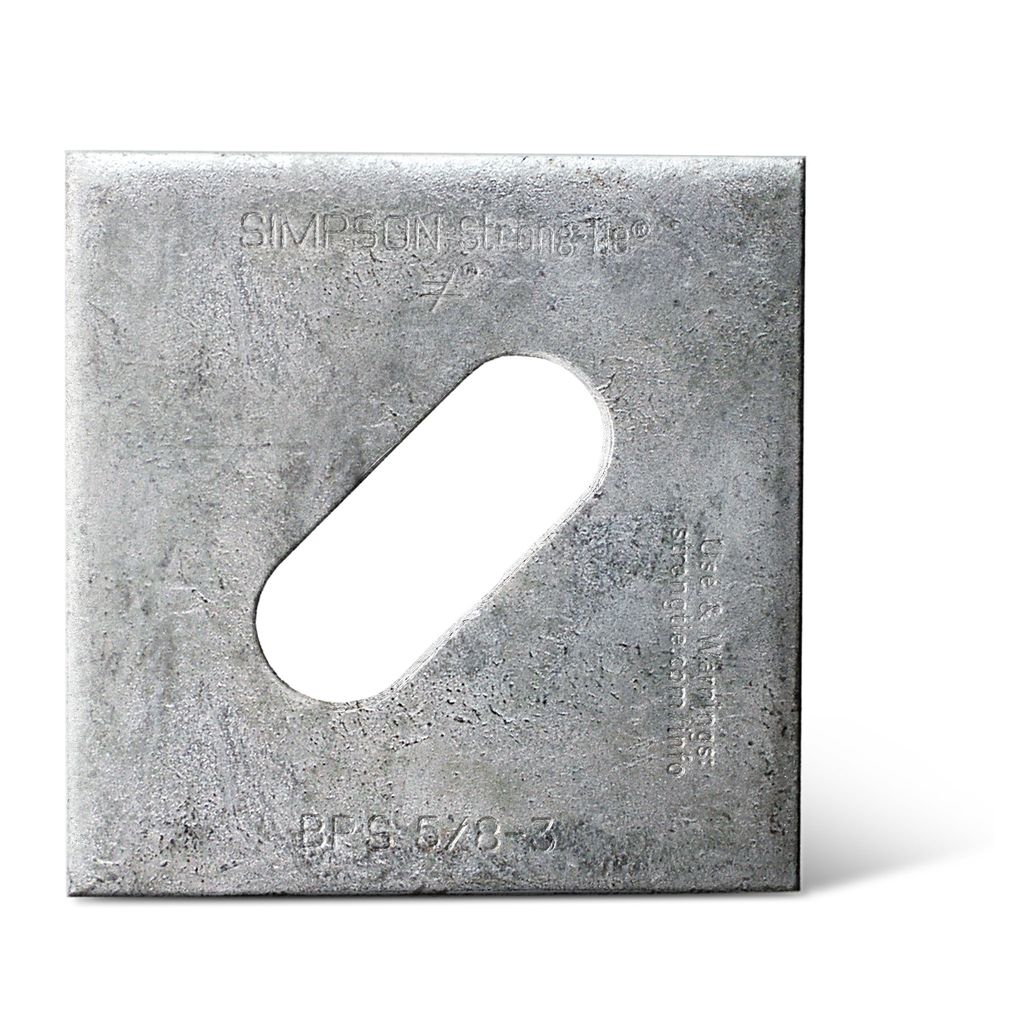

This slotted bearing plate from Simpson Strong-Tie is designed to enhance structural integrity while providing flexibility for 2×4 and 2×6 wall assemblies. Crafted from robust 3-gauge steel and finished with hot-dip galvanization, it offers exceptional corrosion resistance, making it ideal for both exterior and treated wood applications. Its innovative slotted holes not only ensure compliance with the latest code requirements but also allow for easy adjustments, accommodating bolts that may not align perfectly with the sill plate. This bearing plate is a reliable choice for securing framing connections and enhancing the durability of your projects.
Description
Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at these critical connections. Bearing plates are typically used on foundation anchor bolts in place of cut washers.
Additional information
| Weight | 0.558 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Bolt Diameter | 5/8 in. |
| Size | 3 in x 3 in |
