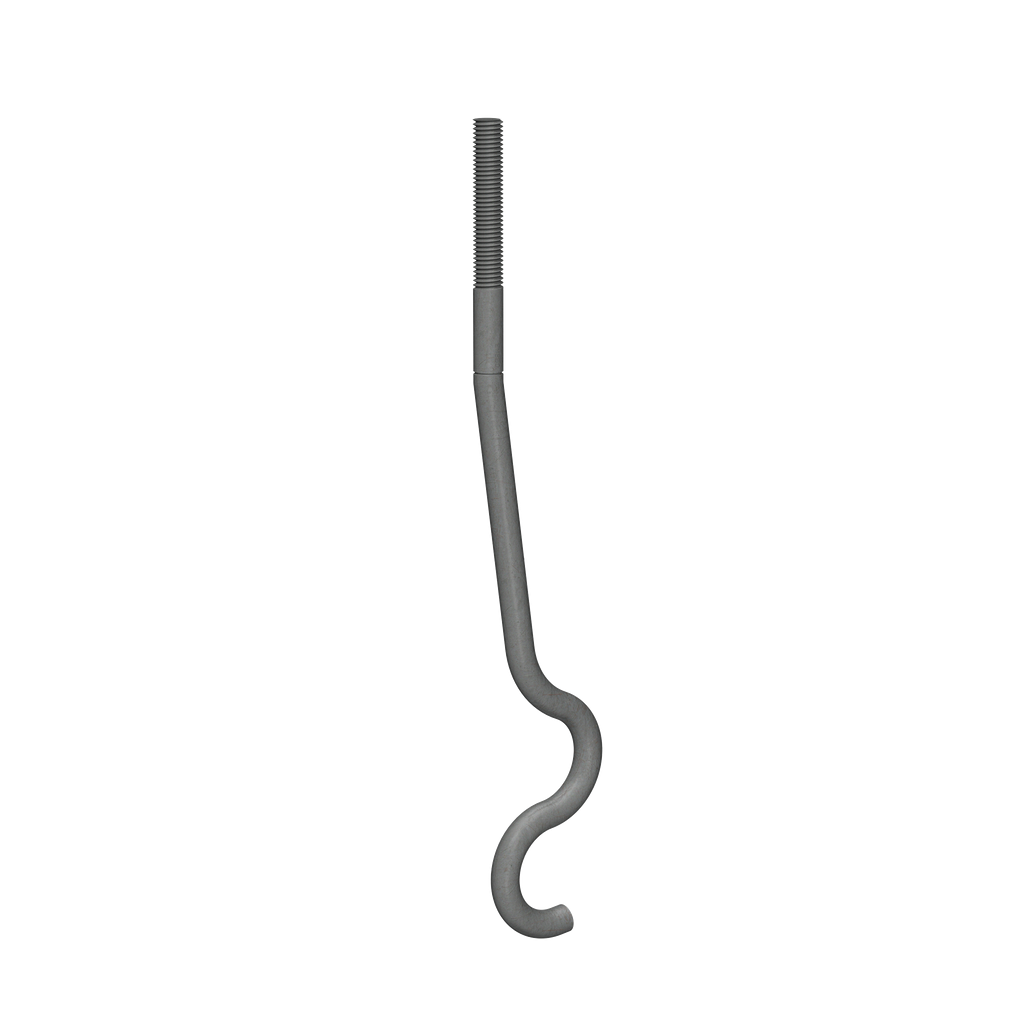

5/8IN DIA 17-5/8IN ANCHOR BOLT HDG
$38.12
The SSTB 5/8 in. x 17-5/8 in. Hot-Dip Galvanized Anchor Bolt from Simpson Strong-Tie is engineered to provide reliable anchoring solutions in both monolithic and two-pour concrete applications. Its rolled threads enhance tensile capacity, ensuring durability and strength for various construction projects. The hot-dip galvanization process offers superior corrosion resistance, making it ideal for exterior and treated-wood applications, while the stamped embedment line facilitates accurate installation. Additionally, the offset angle is designed to reduce side bursting and enhance concrete cover, further ensuring the integrity and longevity of your structural installations.
Description
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.
Additional information
| Weight | 1.33 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Diameter | 5/8 in. |
| Length | 17-5/8 in. |
