5/8IN DIA 17-5/8IN ANCHOR BOLT
$9.40

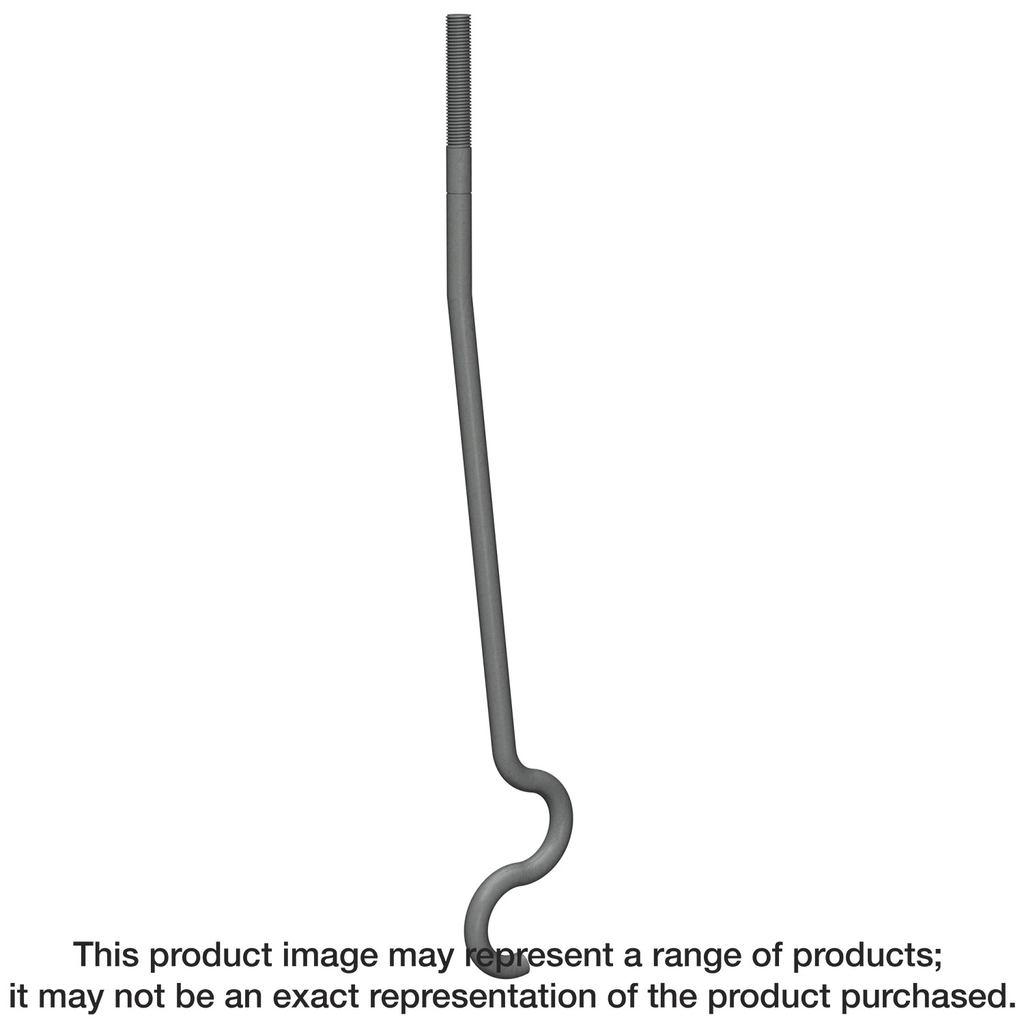

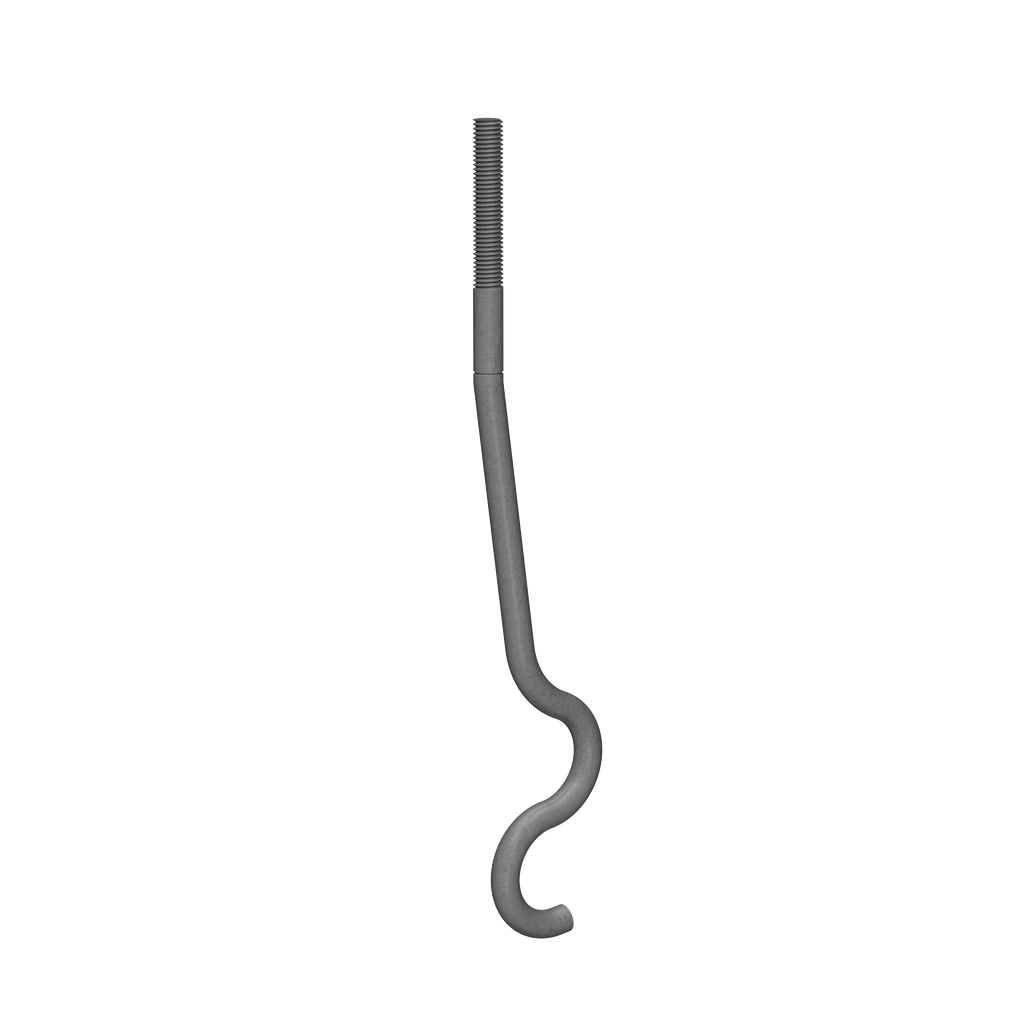

Engineered for strength and reliability, the SSTB anchor bolt from Simpson Strong-Tie showcases a rolled thread design that enhances its tensile capacity, making it a robust choice for various construction applications. The thoughtful offset angle is specifically crafted to minimize side bursting, ensuring optimal concrete coverage and reinforcing structural integrity. Installation is simplified with a stamped embedment line, while identification markings on the bolt head provide clear guidance on the embedment angle and model, facilitating precise placement. This versatile anchor bolt is suitable for both monolithic and two-pour concrete applications, cementing its status as an essential component in building projects.
Description
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.
Additional information
| Weight | 1.39 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Diameter | 5/8 in. |
| Length | 17-5/8 in |
