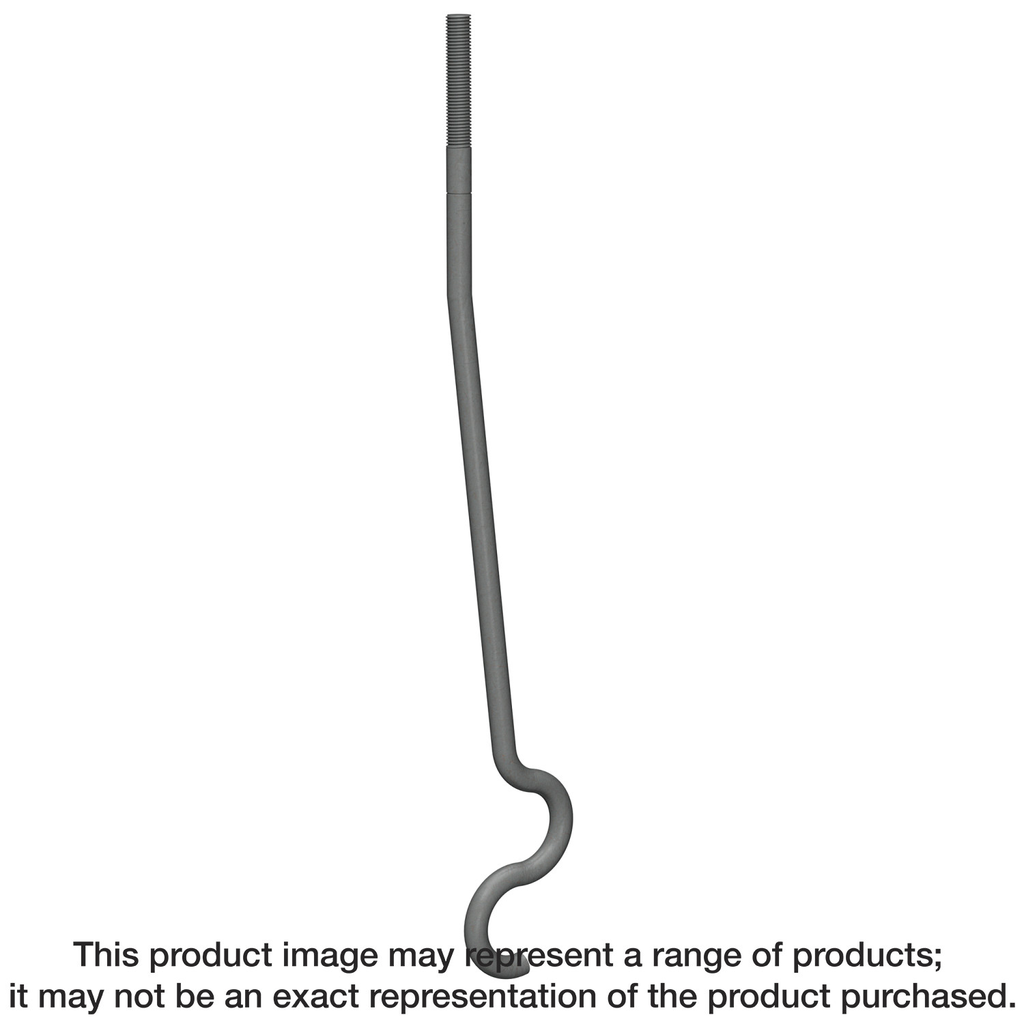

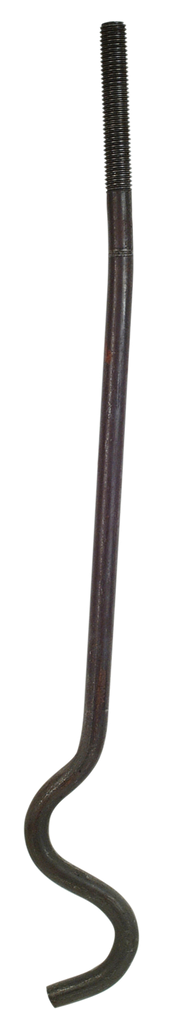

5/8IN DIA 21-5/8IN ANCHOR BOLT
$11.66
The SSTB 5/8 in. x 21-5/8 in. Anchor Bolt by Simpson Strong-Tie is engineered for exceptional performance in various concrete applications, including both monolithic and two-pour scenarios. With its stamped embedment line, installation becomes straightforward and precise, while the unique offset angle design minimizes the risk of side bursting and ensures enhanced concrete coverage. This anchor bolt features a rolled thread, providing increased tensile capacity, making it a reliable choice for projects requiring robust anchoring solutions. Additionally, clear identification on the bolt head specifies the embedment angle and model, facilitating consistent and accurate usage across different applications.
Description
The SSTB anchor bolt is designed for maximum performance as an anchor bolt for holdowns and Simpson Strong-Tie® Strong-Wall® shearwalls. Extensive testing has been done to determine the design load capacity of the SSTB when installed in many common applications. The Simpson Strong-Tie SSTB anchor bolts are code listed by ICC-ES under the 2012, 2015, 2018 and 2021 IBC® and IRC®.
Additional information
| Weight | 1.64 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Diameter | 5/8 in. |
| Length | 21-5/8 in. |
