5/8IN PLYWOOD SHEATHING CLIPS
$14.15
Engineered for optimal performance, the panel sheathing clip from Simpson Strong-Tie is a reliable solution for securing 5/8-inch plywood panels. Crafted from 20-gauge steel and galvanized for excellent corrosion resistance, these clips ensure that your installation meets the spacing recommendations set forth by the American Plywood Association, providing a consistent 1/8-inch gap between panels. Not only do they facilitate quick installation without the need for nails, but they also maintain structural integrity by keeping the panels aligned for a perfectly level surface. Each pack includes 720 clips, designed to make your project both efficient and durable.
Description

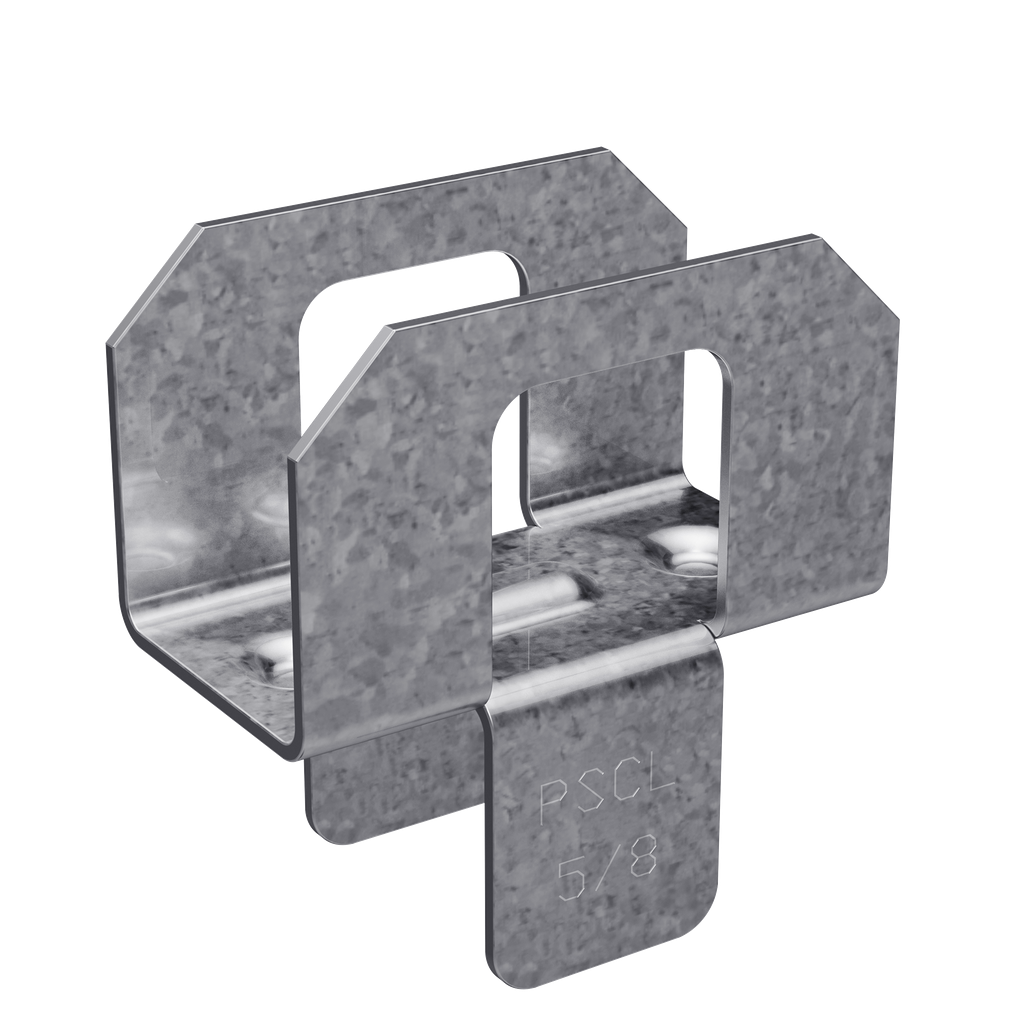

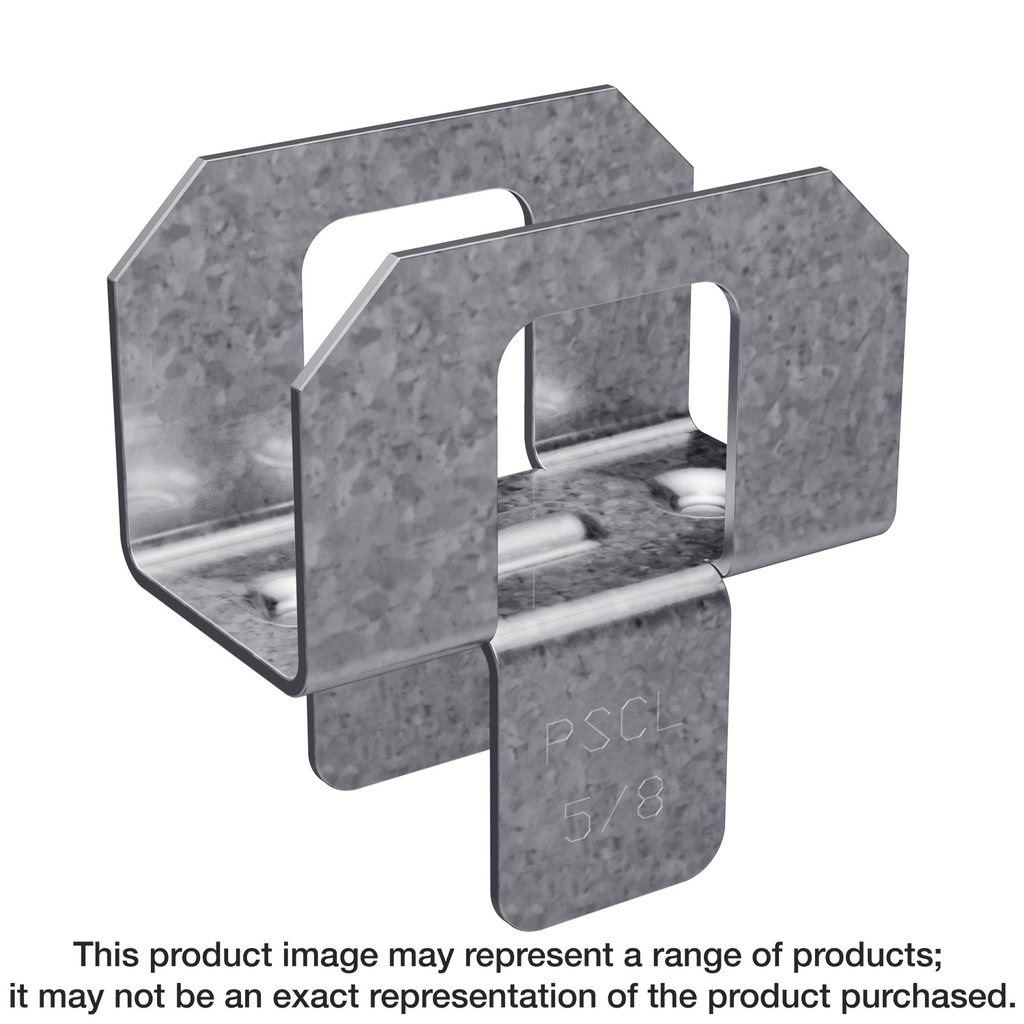

The PSCL is designed to brace unsupported sheathing edges when sheathing meets edge to edge without a rafter for support. This light sheathing clip provides a 1/8-in. gap to address shrinkage and expansion of roof sheathing. Inserted over the edges of adjacent plywood panels, the PSCL reduces deflection and keeps panels even to maintain a level plane on the structure.
Additional information
| Weight | 1.325 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 1.25 in |
| Panel Thickness Compatibility | 5/8 in |
