6 X 6 COLUMN BASE SS
$497.84

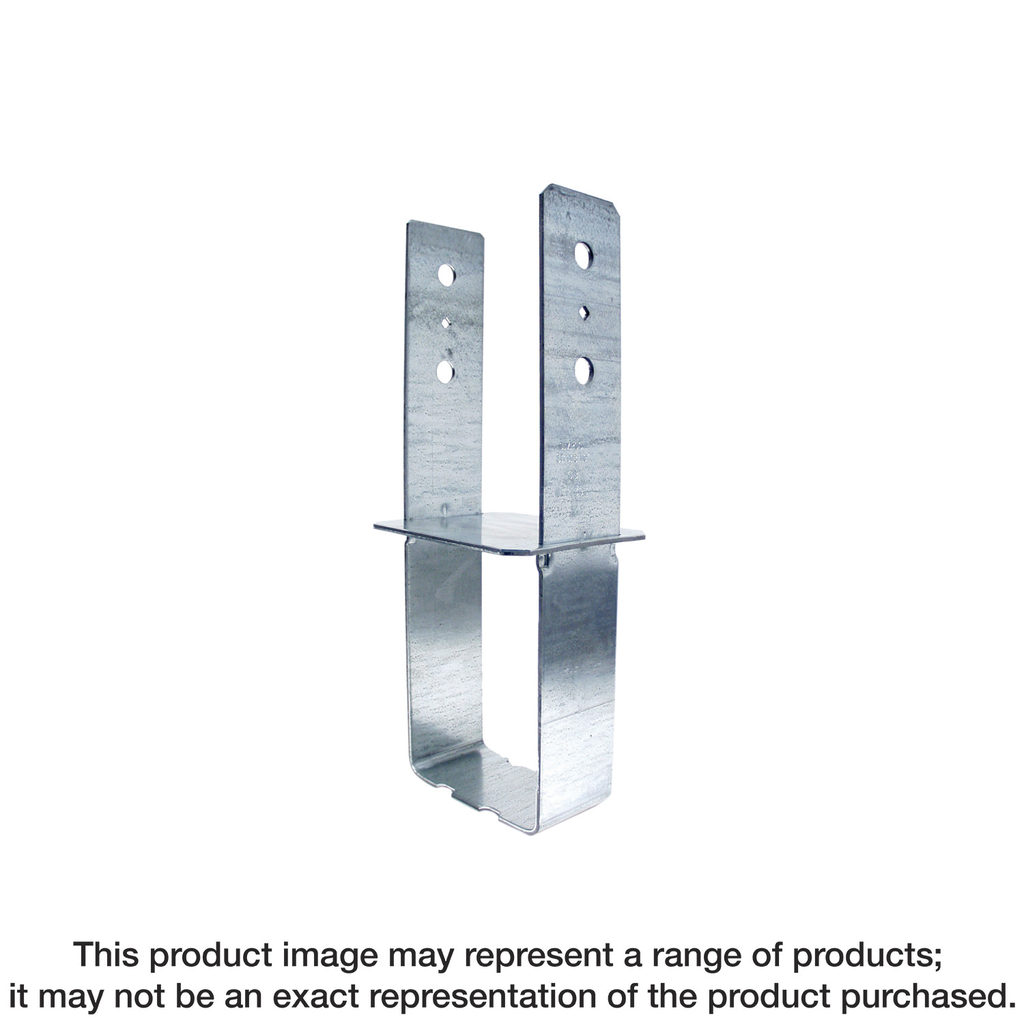

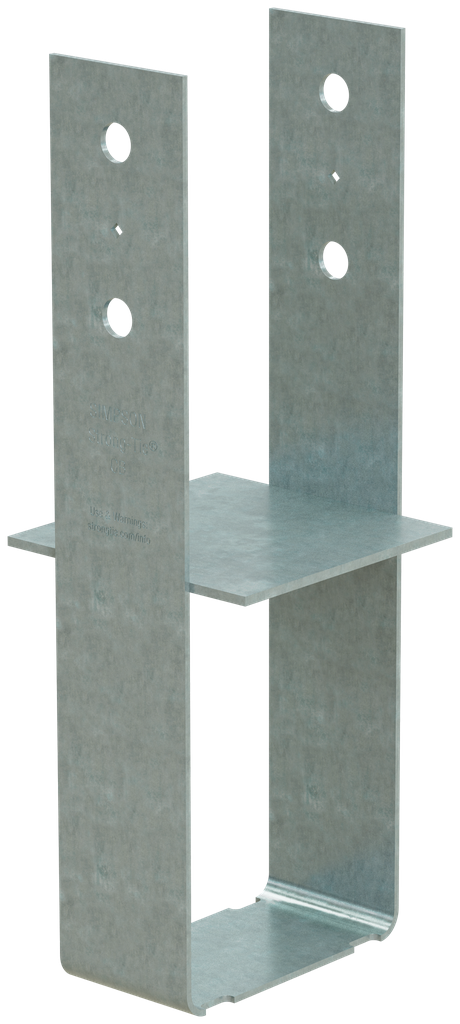

The Simpson Strong-Tie CB66SS CB Stainless-Steel Column Base is expertly crafted for use with 6×6 columns, providing a robust and reliable foundation essential for various structural applications. Constructed from durable 7-gauge stainless steel, it offers high resistance to severe corrosion, making it particularly suited for challenging environments. This column base features bolt hole locations that are strategically designed to meet code-required spacing, ensuring optimal load capacity and increased uplift resistance, which is crucial for structures subjected to wind or seismic forces. With its thoughtful engineering and quality materials, this product not only enhances structural integrity but also ensures long-lasting performance in demanding conditions.
Description
The CB is designed to connect posts to concrete foundations for a wide range of lumber, glulam, and engineered wood product sizes. This column base is either cast-in-place or wet set into the concrete where the bottom of the base plate sits flush with the concrete for full post bearing. The CB is ideal for columns that require high structural values and rugged performance.
Additional information
| Weight | 7.5 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 5.846 in |
| Column Size Compatibility | 6×6 in |
