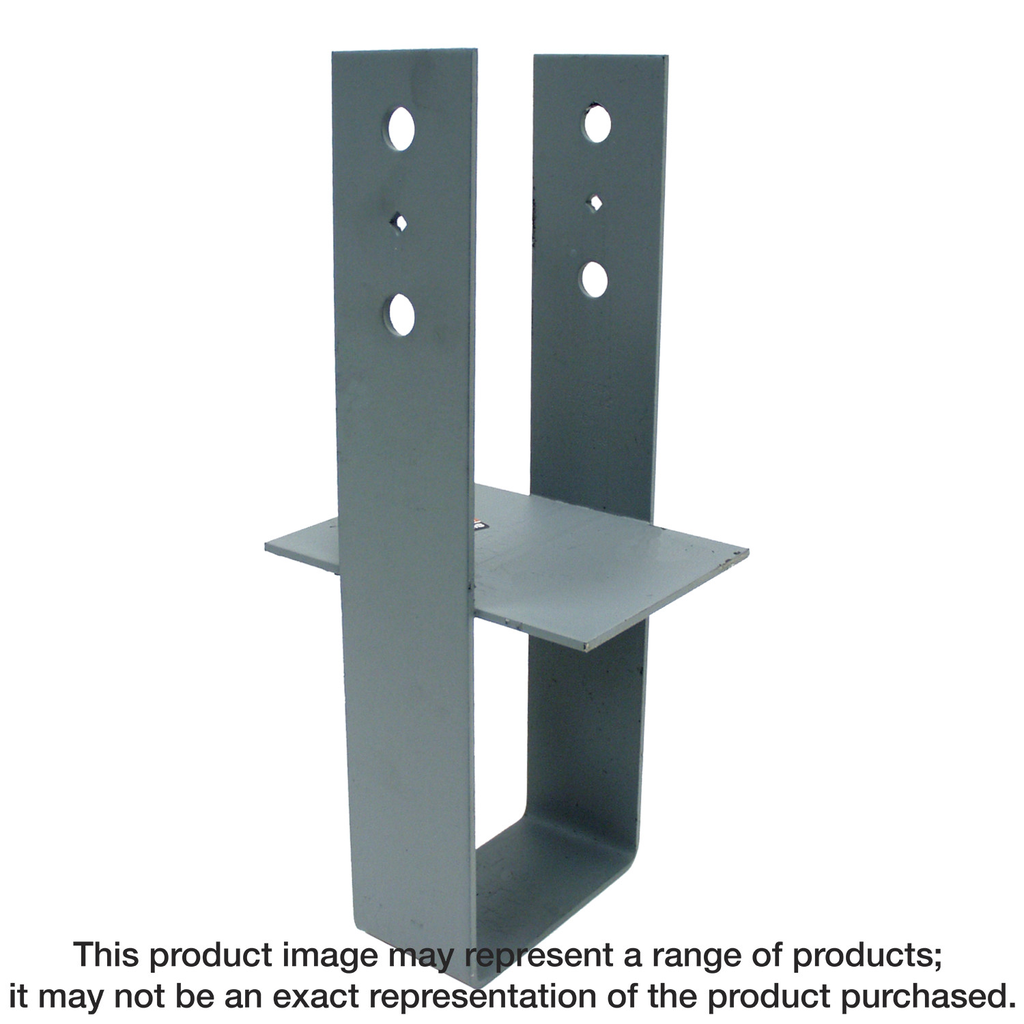

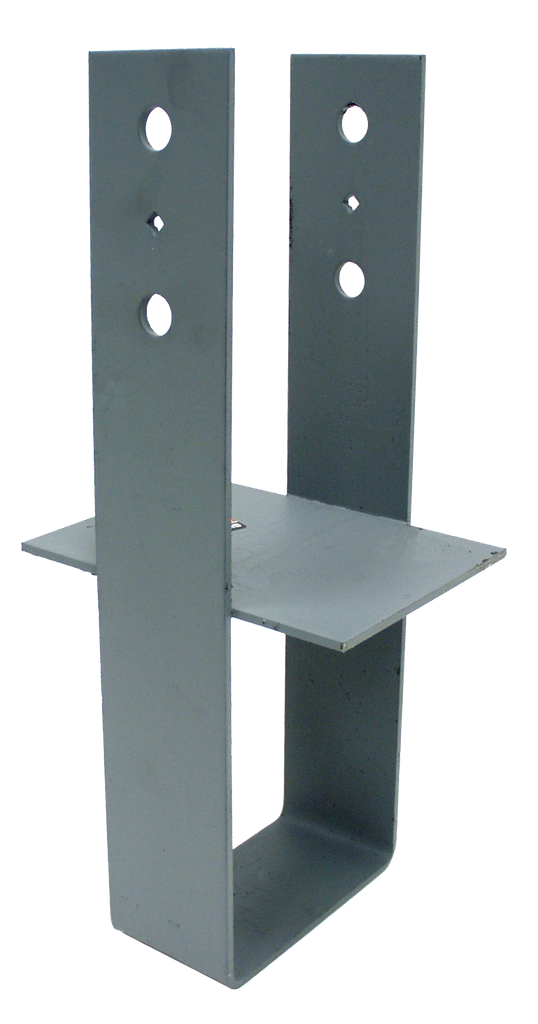

6 X 8 COLUMN BASE
$52.87
The galvanized column base from Simpson Strong-Tie is expertly designed to provide robust support for your structural needs, specifically accommodating 6×8 nominal columns. Crafted from durable 7-gauge steel, this base enhances uplift resistance, making it an ideal choice for areas susceptible to wind or seismic activity. Its G90 galvanization further ensures resistance against corrosion, promoting longevity and reliability in various environments. Additionally, strategically placed bolt hole locations meet code-required spacing, optimizing the capacity and security of your installations.
Description
The CB is designed to connect posts to concrete foundations for a wide range of lumber, glulam, and engineered wood product sizes. This column base is either cast-in-place or wet set into the concrete where the bottom of the base plate sits flush with the concrete for full post bearing. The CB is ideal for columns that require high structural values and rugged performance.
Additional information
| Weight | 8.39 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Nominal Column Size | 6×8 in |
| Depth | 6.4375 in |
