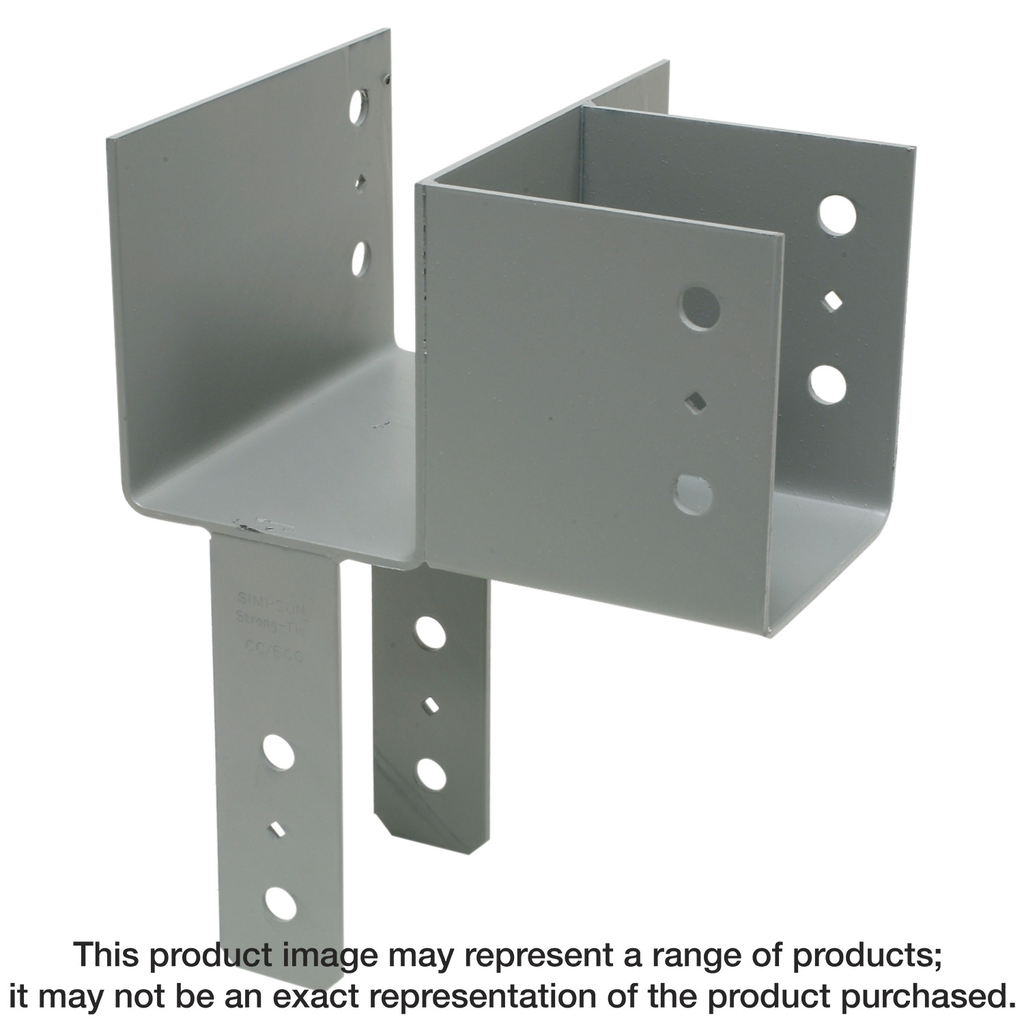

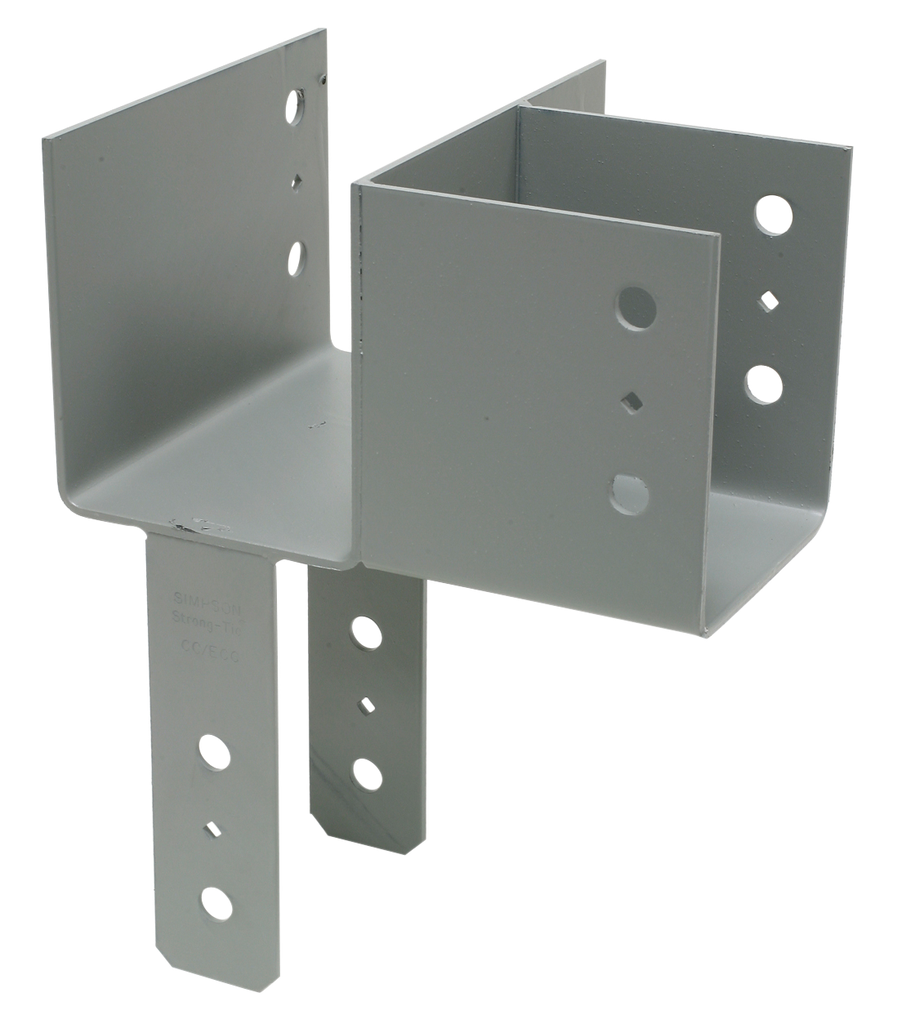

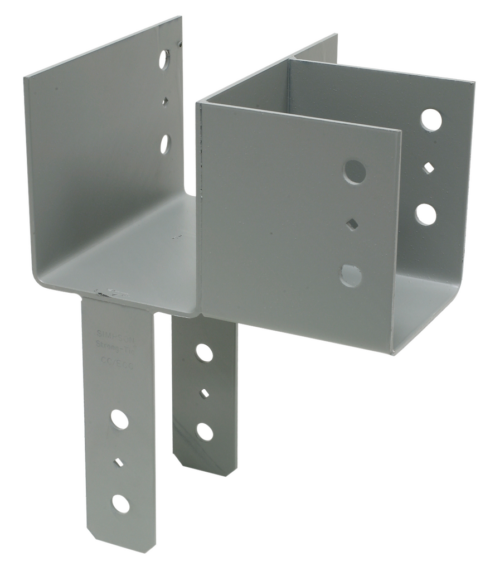

6X BEAM, 6X POST, 6X BEAM ECC L-SHAPE LF
$354.64
Engineered for strength and durability, this L-Shape End Column Cap is designed to optimize the performance of 6x beams and posts, adhering to NDS code requirements for bolt spacing. Made from robust 7-gauge steel, it features diamond holes that facilitate temporary fastening during assembly. The left-direction design ensures precise installation, while the Simpson Strong-Tie gray paint finish adds a layer of protection against the elements. With certified welds, this cap provides enhanced confidence in its structural integrity, making it an essential component for any professional construction project.
Description
Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.
Additional information
| Weight | 19.27 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 11.842 in |
| Size | 6 in main beam, 6 in post, 6 in side beam |
