6X BEAM, 6X POST, 6X BEAM ECC L SHAPE RT
$354.64

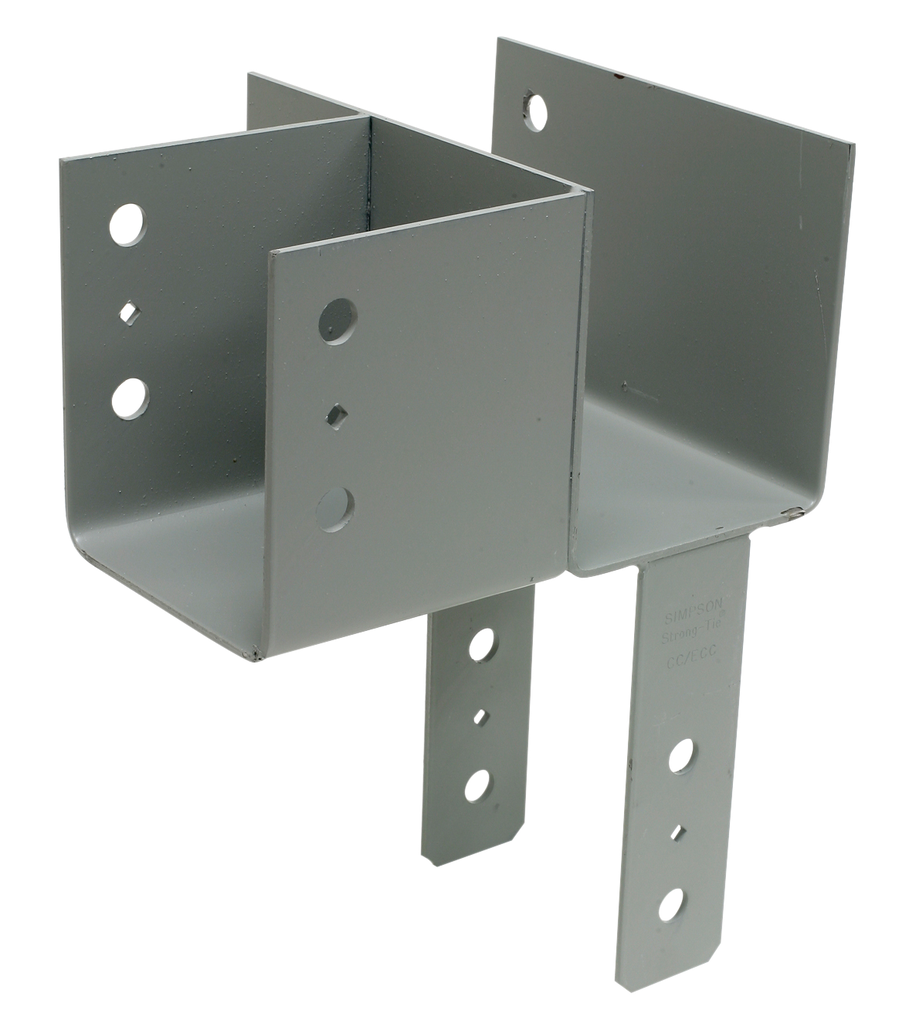

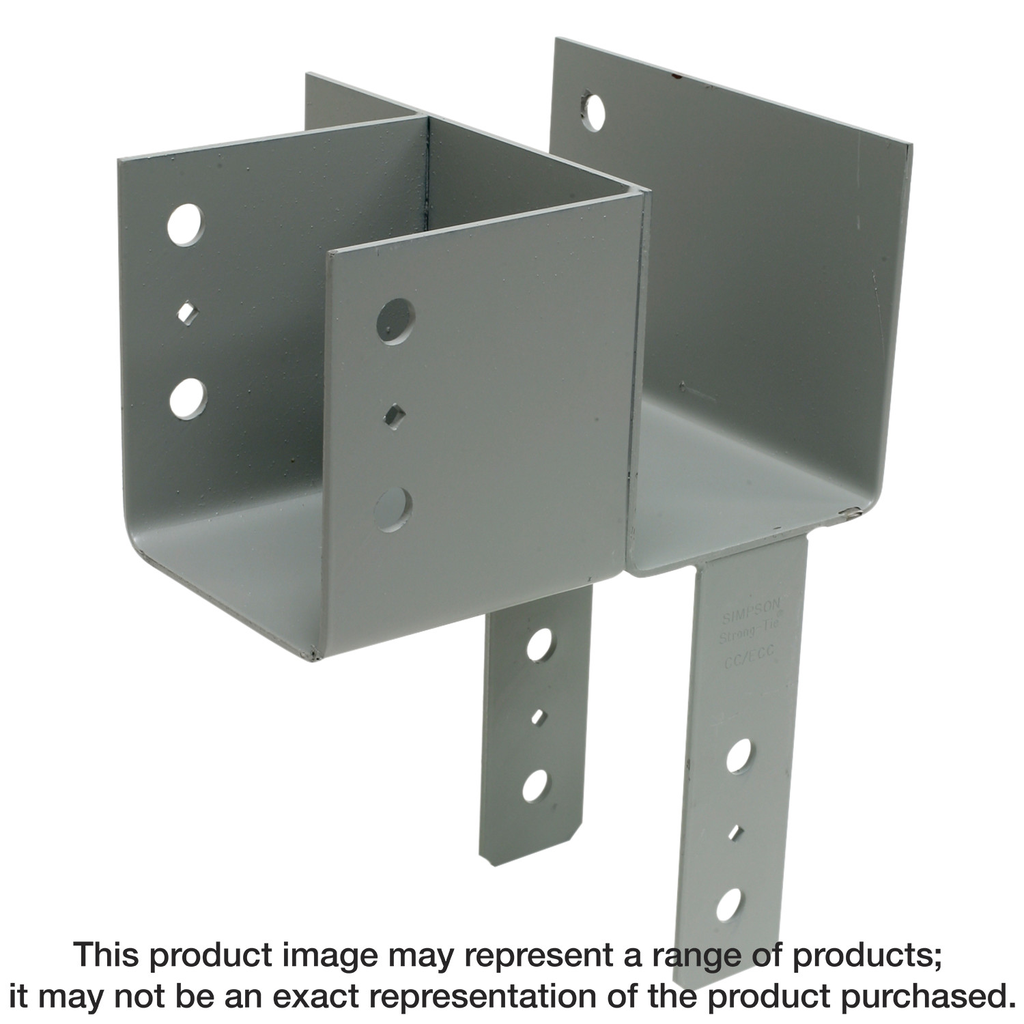

Crafted for robust support and durability, this L-Shape End Column Cap is an essential component for constructing reliable structures with 6x beams and 6x posts. Made from high-quality 7-gauge steel and assembled with certified welds, it ensures confidence in strength and loading capabilities. The design incorporates diamond holes for temporary fastening, facilitating ease of installation while adhering to bolt spacing requirements that meet NDS code standards for optimal performance. Finished with a protective Simpson Strong-Tie gray paint, this cap not only excels in function but also enhances the integrity of your construction project.
Description
Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.
Additional information
| Weight | 19.27 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 11.842 in |
| Size | 6x main beam, 6x post, 6x side beam |
