6X BEAM, 6X POST, 6X BEAM HDG ECCL LEFT
$415.75

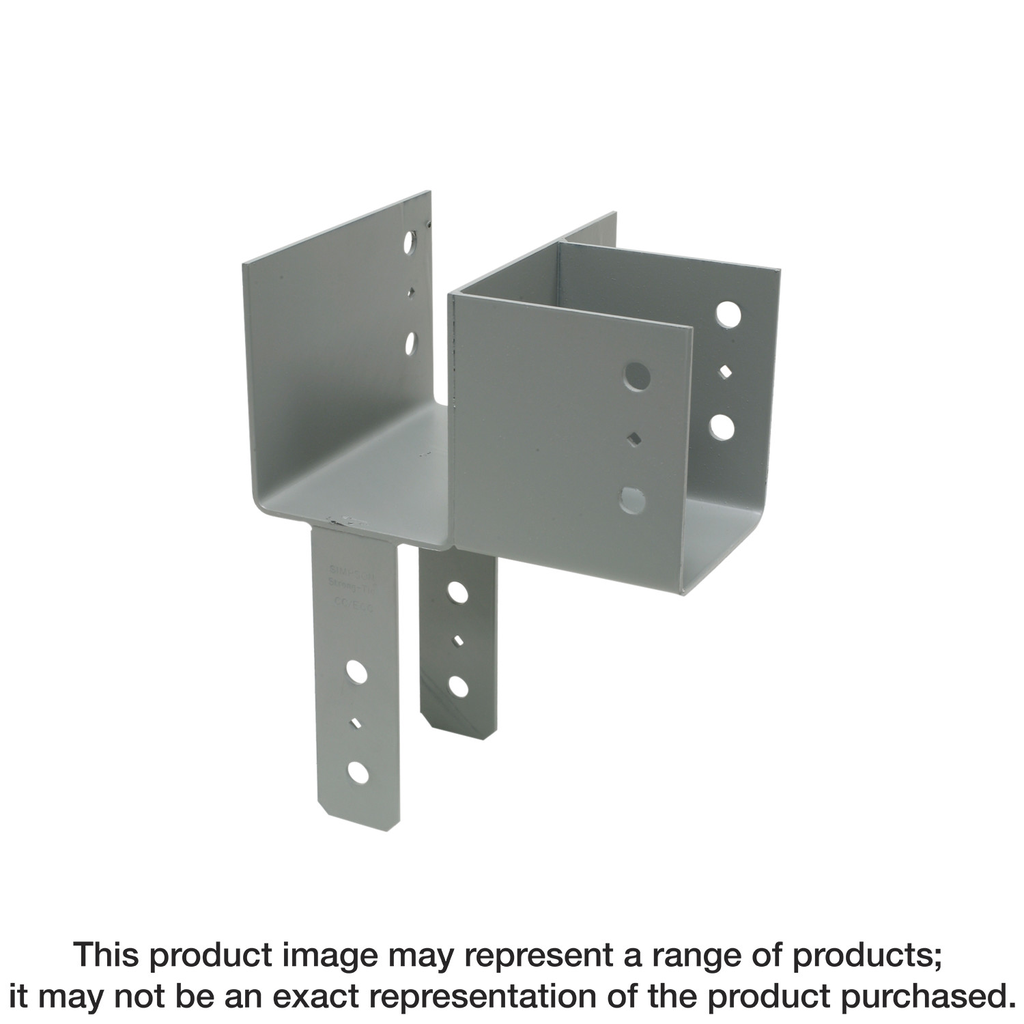

Engineered for robust structural support, this L-Shape End Column Cap is designed specifically for 6x beams and posts, accommodating a leftward orientation. Crafted from durable 7-gauge steel and assembled with certified welds, it ensures reliable strength and loading capacity, making it a vital component for any construction project. The hot-dip galvanization process provides an extra layer of corrosion resistance, enhancing its suitability for exterior and treated-wood applications. Moreover, its innovative diamond holes enable easy temporary fastening, while compliant bolt spacing adheres to NDS code requirements, guaranteeing optimal performance with every installation.
Description
Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCL is designed to provide strong column-to-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. End column caps are sized to the specific plan details or needs to accommodate the many combinations of beam and post sizes.
Additional information
| Weight | 19.27 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Depth | 11.849 in |
| Size | 6×6 in. beams and posts, 6x side beam |
