6X BEAM, 6X POST BLACK COLUMN CAP
$140.92

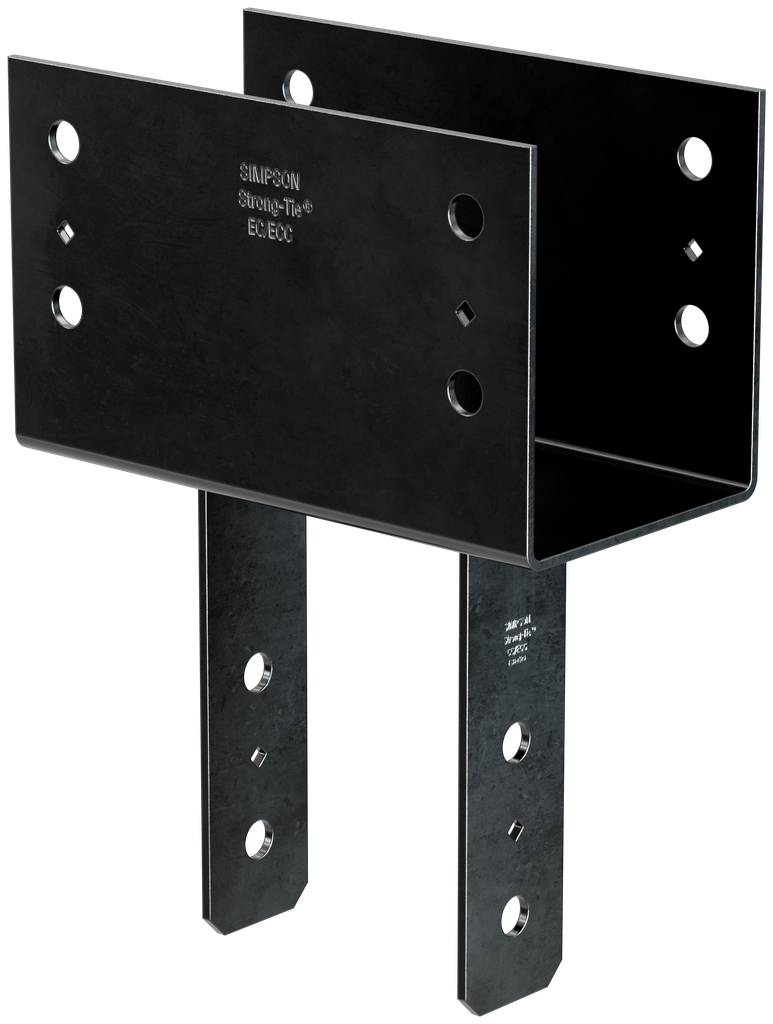

Crafted from robust 7-gauge steel, this column cap is designed to provide reliable support for structures utilizing 6x beams and posts. The black powder-coat finish not only enhances its aesthetic appeal but also contributes to its durability against the elements, making it suitable for various construction applications. With increased uplift loads to meet the demands of earthquake or wind loading, it ensures structural integrity in challenging environments. The bolt spacing is engineered to comply with NDS code requirements, guaranteeing optimal performance, while certified welds offer peace of mind regarding strength and loading capabilities. Additionally, diamond holes facilitate temporary fastening, streamlining the installation process.
Description
Columns caps are an integral part of structural systems designed to provide an increased bearing area while securing a wood beam to a wood column. Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The CCPC provides this strong column-beam connection in wood construction projects. The seat of the column cap provides an additional surface area of bearing that extends beyond each side of the column helping to distribute the load from the beam and provide added support and stability for the connection. The CCPC is part of the Simpson Strong-Tie Indoor Architectural products Classic Collection, featuring modern smooth edges and clean lines. Along with its powder-coat finish, the sleek design makes this connector ideal for projects where the connectors are visible.
Additional information
| Weight | 13.07 lbs |
|---|---|
| Dimensions | 5 × 5 × 5 in |
| Load Capacity | Increased Uplift for Earthquake, Wind |
| Nominal Beam Width | 6x |
